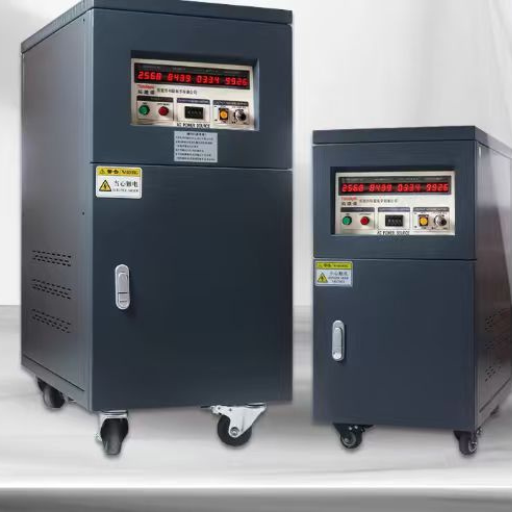

10KVA Three Phase 400v 50Hz/520v 60Hz Frequency Converter Cabinet

Three Phase Static Frequency Converter Cabinet

The 10KVA Three Phase 400V 50Hz/520V 60Hz Frequency Converter Cabinet is designed to meet the demands of industries requiring stable and efficient power conversion. Whether you're operating machinery, testing equipment, or managing sensitive electronics, this frequency converter ensures smooth and reliable performance across various applications. Its robust design, advanced technology, and user-friendly features make it the ideal choice for businesses seeking dependable power solutions.

INSTANT QUOTE
WKS-33010
Advanced Technology
Strict Quality Standards
Diverse Product Range
Global Reach

WKS-33010 Static Frequency Converter Cabinet Product Overview

Wide Voltage and Frequency Range

Converts 400V 50Hz to 520V 60Hz, accommodating diverse industrial requirements.

Compact and Durable Design

pace-saving cabinet built to withstand harsh industrial environments.

Low Noise Operation

Engineered for quiet performance, ensuring minimal disruption in work environments.

Compact and Durable Design

Space-saving cabinet built to withstand harsh industrial environments.

WKS-33010

WKS-33010 Frequency Converter Cabinet Specifications / Additional Information

ParameterValue
TypeWKS-33010
Capacity10KVA
AC Input voltage
PhaseThree phase
Voltage400V±10%V(3P+N+G)
input Switch3P 100A switch
Frequency50Hz/60HZ
AC Output voltage
Output Switch3P 100A switch
PhaseThree phase
Output VoltageL=0-260V, H=260.1-520V
Frequency40-500Hz
CurrentL=22A, H=11A
Frequency stability0.0.1%
Output voltage wave-formsSine CF=1.4standard
Voltage accuracy±1%
Frequency stability≤0.01%
Voltage stability±1%
Harmonic distortion±1% (resistive load)
Line regulation≤1%
Load regulation≤1%
Response timeMax. 2ms
Overload capacity30s (110-150%) ,10ms (150-200%)
Meter & Resolution
Frequency meter0.1Hz,4 digits LED
Voltmeter0.1V,4 digits LED
Ammeter0.01A/0.1A,4 digits LED
Power meter0.1W/0.1kW,4 digits LED
Preset functionPreset output voltage, output frequency and output voltage floating ratio
Fast key functionFast key for output voltage switch, frequency switch, output voltage floating selection
Alarm functionAudible and visual alarm once protective device activated; display error code on LED
ProtectionFuse switch for input and output; Fast-response circuit to detect over voltage, over current, over load, over temperature and short circuit; Output will be shut down in protection mode.
CoolingFan cooling
Pressure insulation1800Vac/5Ma/1min
Insulation reactance
Above 500Vdc/20MΩ
Operation environmentWorking temperature: 0℃-40℃
Relative humidity: ≤90% RH(Non-condensing)
Altitude: 1500m
Machine sizeMachine combine size L750*W400*H950mm
Net Weight(KG)170KG
