A single-phase power system often meets the needs of residential and small commercial customers due to its ease of use and scalability. Indeed, there are instances where a three-phase power system is the best option, especially for large industrial installations and machinery, as a single-phase system cannot achieve the desired results when two phases are combined. The 220V single-phase-to-three-phase converter converts single-phase power to three-phase, enabling smooth operation of machines. By moving relatively high power from the house or facility panelboard to the shop load center, the power is stepped down via the converter’s electronic tap changer to enable the machine’s operation. The cost of setting up such a system can be very high, which may discourage potential customers if they have to pay in a lump sum. This flexible time-based payment option can help customers move faster through the purchase process and increase your conversion rate.
Introduction to Phase Conversion
The conversion phase is the process of changing the electrical power source from a one-phase supply to a three-phase supply. It becomes necessary if we want to run equipment that requires three-phase power in places where single-phase electricity is the only option. There are three main approaches to this conversion: stay, rotary, and electronic, based on the appliances’ power requirements and load types. Consequently, these converters are widely used mainly in manufacturing plants, machine shops, and small firms to operate very efficiently motors, compressors, and pumps, among other equipment. The choice of converter depends heavily on the assessment of power output, load type, and system interoperability, to ensure high performance and reliability.
What is a Phase Converter?
A phase shifter is an apparatus that converts single-phase electrical power into three-phase power, enabling a three-phase machine to operate in a single-phase power environment. The upturning process is most often performed by adding a third voltage line with characteristics similar to those of conventional three-phase power systems, and it can be implemented in various ways that are not necessarily limited to the three aforementioned ones.
The first type of phase converter is the rotary phase converter. It is widely dependent on the three-phase motor, which is the idler motor in this case. The motor converts the supplied single-phase power into a rotating magnetic field, which, in turn, induces the other phases required for three-phase devices. On the contrary, modern solid-state converters employ power electronics and digital control to generate the other two phases precisely and efficiently, thereby reducing energy losses.
Importance of Phase Conversion
The necessary phase conversion step plays a significant role in expanding the availability of three-phase power systems to areas with only one-phase power supply. This capability enables the trouble-free operation of mid-sized industrial-grade equipment such as computer numerical control (CNC) machines, pumps, and compressors in locations where a cost-effective option is upgrading the electrical infrastructure to three-phase power. Similarly, phase converters make economic and labor sense as a viable alternative when extensive electrical grid modifications and the associated costs are the key barriers to providing electricity.
State-of-the-art developments in phase converter technology emphasize improved energy efficiency and reduced harmonic distortion, making it less likely that the power quality of interconnected systems will suffer. A good example of this is the digital phase converters that are manufactured today, which can do the correction of voltage imbalances in real-time, and this kind of adjustment used to be something only a utility could do. This not only extends the equipment’s service life but also makes the operating conditions safer. At the same time, once the phase conversion accuracy is ensured, the motor can be operated without overheating, thereby improving the overall system reliability.
Benefits of Using a 3 Phase Converter
Enhanced Equipment Performance
Industrial equipment must be connected to a 3-phase power supply to ensure smooth, efficient operation. Compared with single-phase power, which is characterized by power delivery fluctuations, 3-phase systems consistently provide a balanced power supply. This ‘caliber’ of power delivery eliminates overstraining of motors and other equipment, thereby extending their operational life by 30%.
Cost Efficiency
The business community can cut costs significantly by deploying 3-phase converters rather than redoing or replacing their existing single-phase infrastructure. Recent research shows that installing 3 3-phase converters can reduce infrastructure upgrade costs by 40%-60% compared with alternatives.
Improved Energy Efficiency
Three-phase systems operate more efficiently and experience less energy loss than single-phase systems. For example, they reduce I²R losses due to the different current levels they operate at, reducing total energy losses by up to 20%, depending on the system scale and use.
Support for High-Power Equipment
Many large-scale and business devices, such as HVAC systems, CNC machinery, and pumps, generally require a 3-phase power supply to function correctly. A 3-phase converter is a device that makes these high-demand devices compatible by providing the appropriate power and preventing issues such as power drops or outages.
Flexibility in Power Management
It is a 3-phase converter that determines power requirements based on the equipment in operation. By enabling energy distribution via a 3-phase converter, a facility can be powered from a single supply line rather than multiple dedicated lines, thereby allowing greater scalability in a factory.
Reduction in Downtime
Because consistent power output and the risk of motor overheating and equipment failure were reduced, companies that used 3-phase systems experienced significant reductions in unexpected equipment failures. The company is estimated to have achieved a 15%-20% increase in system average uptime after adopting phase conversion solutions.
How Phase Converters Work
The job of a phase converter is to change single-phase power into three-phase power. This enables equipment requiring three-phase power to operate on single-phase power. The transition from one power type to another can be achieved using rotary or static converters.
The rotary phase converters, consisting of a rotating motor and capacitors, produce three-phase power for continuous and variable loads. In contrast, static phase converters provide three-phase power only for a short period required for the motor to start, after which the motor continues running on single-phase power. Therefore, the latter is also suitable for lighter, less frequently used applications. Each converter type is designed for a different field; therefore, the use of phase converters is highly advantageous in power systems, as optimization is achieved with ease.
Technical Principles Behind Phase Conversion
Phase conversion is a process that engineers design and implement using electrical engineering principles to convert single-phase power to three-phase power. This industrial process primarily occurs in locations without a three-phase power supply. The pivotal point in the transformation is the generation of a rotating magnetic field, whose effect is comparable to that of a real three-phase current. Rotary phase converters demonstrate high efficiency by using an idler motor to balance voltage and dosage across all three phases. Furthermore, capacitors in the system provide the final voltage adjustment and correct asymmetries, ensuring the machinery runs consistently.
Capacitance and the relays that start are essential components of the static phase converter, which generates a brief phase lag during the motor’s start-up period. Consequently, the motor receives the required torque and can reach the desired speed, making it single-phased for the remainder of the operation. Digital phase converters have reached a point where they interact with microprocessors, which control and continuously monitor electrical parameters, turning the converters into dynamic, smart devices that are virtually free of voltage drop problems whilst handling significantly different and large loads. All these improvements demonstrate that precision engineering is the backbone of equipment longevity and highly efficient energy consumption.
Types of Phase Converters
| Type | Key Points | Parameters to Know |
|---|---|---|
| Rotary Phase Converter | Uses a rotating generator for conversion | Ideal for heavy, variable loads |
| Static Phase Converter | Provides power only during startup | Best for consistent, light-duty operations |
| Digital Phase Converter | Uses microprocessors for accuracy | Handles sensitive, precision applications |
| Single to Three-Phase Converter | Converts single-phase to three-phase | Versatile for multiple applications |
| Multiphase Converter | Converts power for complex systems | Used in industrial multiphase setups |
Understanding 3 Phase Power Output
Modern electrical infrastructure is incomplete without three-phase power systems, which are known for their operational efficiency and the ability to carry heavy loads. A three-phase system, unlike single-phase systems, uses three alternating currents that are 120 degrees apart in phase angle to distribute power. This setup ensures a more reliable, continuous power supply, resulting in reduced motor vibration and increased operational efficiency in the industry.
The system’s power quality is considered good, and with controls, it can be easily maintained within a very narrow voltage range. Due to reduced electricity consumption, the three-phase system lowers operational costs while delivering the same power. Even when the power frequency is held constant, the power factor remains a consideration when operating the process economically. As a result, power is distributed more effectively to users.
From a daily operations perspective, three-phase power is used to handle balanced loads across all three phases, reducing the risk of equipment stress and power loss. That is why it is the first choice for working machines, manufacturing equipment, and other high-demand systems. In addition, advances in digital control and phase-conversion technology have made three-phase power more versatile and capable of achieving accurate energy regulation across a wide range of applications, from industrial automation to renewable energy systems.

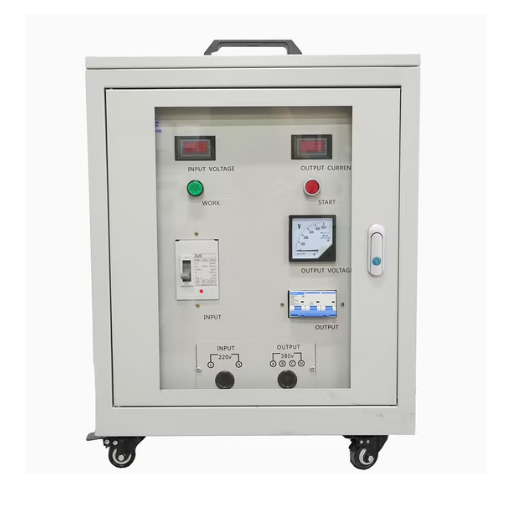

Applications of 220V Single Phase to 3 Phase Converters
220V single-to-three-phase transformer converter units are typically used when three-phase power is required but only single-phase is available. They can be applied in the following ways:
- Industrial Machinery: It enables energy-efficient operation of equipment such as lathes, milling machines, and compressors in workshops and facilities with single-phase power.
- HVAC Systems: They supply power to three-phase air conditioners and commercial refrigeration systems by delivering a high, continuous load. This way, they ensure the smooth operation of equipment that would typically need single-phase power.
- Renewable Energy Systems: They convert energy from wind turbines or solar panels, which are usually the primary energy sources in rural areas.
- Agricultural Equipment: It provides heavy-duty farm machinery, grain dryers, and other equipment with energy in a safe, uninterrupted manner.
- CNC Machines: They ensure precise energy control for advanced manufacturing and cutting systems that rely most on three-phase motors.
The converters above provide new, money-saving, equipment-light ways, allowing users to avoid extensive electrical work and instead connect high-demand equipment.
Industrial Machinery and Equipment
Industrial machinery relies heavily on three-phase converters to deliver power steadily and efficiently, thereby linking these converters and the industries to the consistent quality of the power supply. The converters are essential to the smooth operation of lathes, milling machines, and industrial compressors, which depend on a stable, steady three-phase power supply. The electrical study states that operators can save up to 25% by using high-efficiency converters, because these converters produce less wasted energy and extend equipment life through consistent quality. On the other hand, the most recent converter technologies now include internal energy monitoring systems that enable plant supervisors to measure energy during operation and to directly control energy efficiency, which is another factor for cost reduction. This new technology is essential for the sectors as mentioned earlier, which typically require high precision and reliability throughout the process, especially in aerospace and automotive.
Manufacturing Applications
The use of new converter technologies has a positive impact on modern manufacturing workflows. For instance, robotics-driven assembly lines, which ensure consistent power delivery, are one means to reduce fluctuations that could affect precision in high-speed operations. Equally, predictive maintenance enabled by installed sensors and analytics plays an essential role in maintenance tasks, reducing failures before they occur by approximately 30% of total downtime. Semiconductor manufacturing, which requires nanometer-scale accuracy, is another sector where the adoption of these innovations is improving quality control and throughput. Converter efficiency and monitoring are continuously improving, further confirming that its contribution to the optimization of the production cycle across manufacturing sectors is unavoidable.
Role in Workshop and Shop Environments
The combination of converters, analytical tools, and real-time monitoring modules in a workshop or shop setting will increase precision and efficiency. This hardware is seamlessly connected to the IoT network, enabling immediate assessment of energy consumption, machinery performance, and process efficiency. The discovery of hidden weak points in the mechanical operations of a workshop or factory, such as an uneven distribution of power or suboptimal load balancing, can be detected early and corrected through highly accurate, data-driven monitoring. According to research, these tweaks have increased the factory’s operational energy efficiency by up to 25%, resulting in a sizeable reduction in operational costs. On top of this, the converters, by applying maintenance forecasting algorithms, are instrumental in averting sudden breakdowns and thus maintaining workflow without frequent disruptions. The ability to operate with diverse machinery and manufacturing processes is one of the reasons for their widespread use in modern shop-floor management.

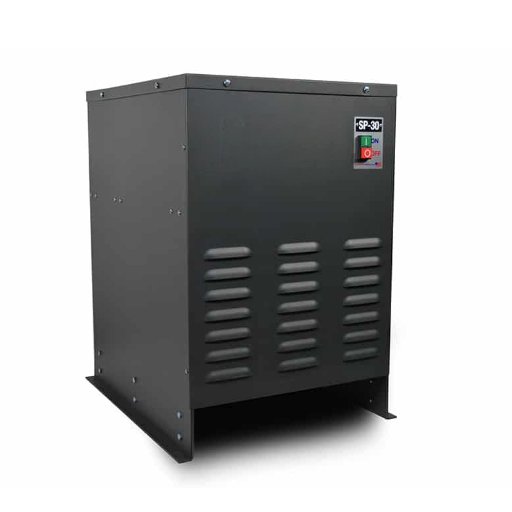

Selecting the Right Phase Converter
When selecting the most suitable phase converter, three key factors are power requirement, equipment type, and operational demands. First, the total power required is calculated by summing the horsepower (HP) or kW of all equipment operating simultaneously. It is good practice to make the culprit at least 25% larger than the actual one for a converter that handles consistent peak loads, so different sources do not get jammed. Second, the equipment type determines the most suitable rotary phase converter: for motor-driven tools, the static phase converter is used. At last, the operational settings, i.e., equipment that runs with periodic breaks and for sensitive equipment, the necessity of a constant voltage balance, etc., need to be checked. A good example of a very sensitive item to voltage fluctuations is a computer. The factors should be analyzed so that the selected phase converter is an exact fit for the application in terms of efficiency and durability.
Factors to Consider: Power Capacity and Load
Determining the correct phase converter for your application is critical; you need to match the power rating to the load requirements to ensure optimal performance. The first step is to determine the total power (HP) of the equipment to be fed by the converter, as this is the parameter used to select the minimum required capacity. In the motor-operated machine case, account for inrush current or starting load, which is usually higher than the equipment’s running amperage. A phase converter should be capable of absorbing these peaks effectively to avoid voltage sags or equipment damage.
Moreover, determining whether the load is in check or not is required. When the load is uniform, as in motors, the phase converter’s work is low, whereas unbalanced loads from different equipment types or intermittent power consumption can complicate voltage stabilization. For operations with sensitive loads, phase converters equipped with voltage regulation are recommended to protect against load-voltage fluctuations. Addressing these technical topics ensures the converter operates reliably under normal, continuous conditions, and following a planned system upgrade will enable long-term reliability.
Choosing Between Rotary and Digital Phase Converters
| Key Parameter | Rotary Phase Converter | Digital Phase Converter |
|---|---|---|
| Power Source Compatibility | Suitable for high-demand machinery | Ideal for precision applications |
| Voltage Regulation | Less stable, basic regulation | Highly stable with precise control |
| Efficiency | Moderate, dependent on load balance | High, consistent across load ranges |
| Noise Level | Generates audible mechanical noise | Operates quietly, minimal noise |
| Maintenance Requirements | Requires periodic mechanical upkeep | Low maintenance, fewer moving parts |
| Cost | Generally lower initial cost | Higher initial investment |
| Application Versatility | Works well for heavy load variations | Best for sensitive and precise equipment |
| Start-Up Load Handling | Handles high inertia starting loads | Limited ability with high start-up loads |
| Phase Balancing | Offers basic balancing | Provides advanced dynamic balancing |
| Installation Complexity | Relatively simple setup | Requires professional setup for precision |
Budget Considerations for Phase Conversion
One must always keep in mind that cost-benefit trade-offs ultimately determine the economic feasibility of a particular phase converter configuration. In addition, the continuous cooperation between cost and benefit must be supported by aligning the application requirements. The cost of implementing rotary phase converters versus digital phase converters is another key consideration. In other words, with rotary systems, you, as a user, would have a much lighter pocket at the start. Yet, they are likely to be a significant asset for budget-conscious operations, particularly with less sensitive equipment. However, the rotary phase converter is not without its drawbacks. The latter part of the expenses is primarily due to increased energy consumption and maintenance under rugged operating conditions.
Although digital phase converters require a larger upfront payment, they can still be considered a good investment when energy savings and high-performance, accurate equipment are priorities. The digital phase converter doesn’t need to be significantly more expensive than the other types. It is better to use a digital converter if the load does not require a quiet power supply. The savings from extending equipment life will significantly exceed the initial outlay, especially when power must be consistent and stable. Additionally, digital units are usually complex to install and will require a professional, which adds associated costs.

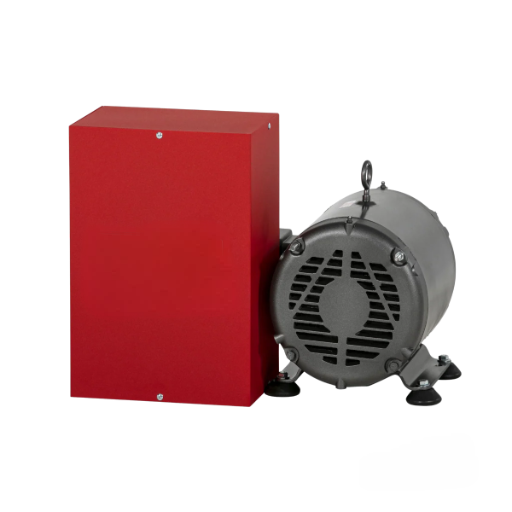

Expert Tips for Phase Converters
Select the Right Type:
Your machine characteristics will help you pick between rotary, static, and digital phase converters. For major electronic equipment, you cannot bypass rotary converters, but small businesses can use static converters. On the flip side, precision tools or machine-sensitive loads can only be secured by digital converters.
Ensure Proper Sizing:
Appropriate sizing is critical. If the converter is too small, it cannot handle the load effectively, while one that is too large may result in reduced efficiency. It is essential to select the converter’s capacity based on your equipment’s starting and running power requirements.
Evaluate Installation Needs:
It is good practice to place the phase converter in a well-ventilated area to prevent overheating. Always trust the professionals during installation, and do not hesitate to ask questions about compliance with safety standards and performance levels.
Perform Regular Maintenance:
Regular cleaning and fastening of connectors ensure the converter’s reliability and guarantee network connectivity, but they are highly susceptible to wear and tear. Early detection of these problems saves time and money, since extended operational shutdowns are unnecessary.
Monitor Load Balancing:
Ensure the voltages are adequately supplied, and the equipment receives power that is efficient and reliable. Periodically taking readings from the devices and analyzing them with a voltmeter will readily reveal or correct minor imbalances.
Check Local Codes and Regulations:
The location of the phase converter and the entire system must comply with applicable State laws and regulations. This is one way to have the most hassle-free operation from Durastar, and it is not to mention the most affordable, certainly the way to do so.
Common Issues with Phase Converters
⚠ Voltage Imbalances:
Voltage imbalance is one of the most common problems encountered with phase converters. It can have negative implications, such as poor operation and performance degradation in connected equipment, or more severe problems, including damage to machinery components. Continual supervision, monitoring, and adjustment of the voltage level can address this problem.
⚠ Overheating:
Running overloads for extended periods can cause thermal issues in converters of either rotary or static type. The heat will, in turn, pose risks of circuit damage and reduce the system’s overall life cycle. Using appropriate cooling and equipment to ensure proper air circulation is a key method for controlling this risk.
⚠ Improper Sizing:
The problem with the wrong size converter, either too small or too big, is faced very often. A converter with less power than required will struggle, while a larger-than-needed converter may increase energy consumption. Before you use a phase converter, perform accurate load calculations to ensure the correct size is purchased.
⚠ Harmonic Distortion:
None of the phase converters produces harmonic distortion, which can disrupt the performance of the electrical system and surrounding machinery. Especially in industrial settings with precision machinery, this might be a big issue. The best way to mitigate disturbances is to use harmonic filters or employ advanced converter design.
⚠ Capacitor Failures:
The capacitors in the phase converters are likely to degrade over time, especially in systems under constant use or at high temperatures. Malfunctions in capacitors can lead to reduced converter efficiency, voltage fluctuations, or even no converter operation at all. A good way to avoid this problem is to conduct regular inspections and replace the capacitors promptly.
⚠ Start-Up Delays:
Rotary phase converters seem to be the most delayed among the start-ups. The reason could be worn mechanical components, incorrect connections, or insufficient power supply. Mechanical components should be maintained regularly, and the power source should remain stable to avoid start-up delays.
When to Seek Professional Help
It is of the utmost importance to have a qualified technician address the issue when the previously mentioned measures do not resolve the converter issues or when the system exhibits persistent irregularities. Situations such as unexplained voltage fluctuations, recurring overloading, or strange sounds during operation may indicate serious mechanical or electrical problems and should be handled only by a diagnostic specialist. Moreover, complex issues such as phase imbalance, which can damage connected equipment, make it indispensable to have an expert who can reset and equalize the system.
In many industrial settings that use large rotary or static phase converters, specialized tools are required. The primary purpose of these tools is to ensure safety and compliance with standards. In the same context, hiring highly trained personnel is a good idea. With their help, we will ensure that, among other things, new converters and equipment are correctly connected and integrated. Overall effectiveness is improved by properly maintaining the converter’s life expectancy from the outset.
Reference Sources
Fuzzy Logic Control for High-Frequency Switching in Photovoltaic SEPIC DC/DC Converters and Three-Phase Inverters
Summary: This paper explores the use of fuzzy logic control for high-frequency switching in photovoltaic systems.
Instantaneous power theory for unbalanced voltage compensation of 3-phase power systems
Summary: This research investigates the application of instantaneous power theory for compensating unbalanced voltages in three-phase systems.
Frequently Asked Questions (FAQs)
What is a 220V single-phase to 3-phase converter, and how does it work?
A 220V single-phase-to-3-phase converter is a device used to convert a single-phase electrical supply to 3-phase for running three-phase motors and equipment. It is always applied to methods such as electronic conversion using a variable-frequency drive (VFD), rotary phase-converter technology, or static phase-converter designs to create additional phases. The converter equalizes loads and, at the same time, provides the appropriate phase shift so the motors can operate smoothly and effectively. Digital phase converter models also offer exact control. Additionally, motor starting current and harmonic filtering are usually the two biggest concerns during installation.
Can I use a rotary phase converter for 220V single-phase-to-3-phase applications?
Yes, a rotary phase converter is frequently the go-to choice for 220V single-phase-to-3-phase applications and is particularly advantageous in situations with multiple three-phase machines. Rotary phase converters add a third leg via an idler motor and can deliver near-ideal three-phase power under load, unlike the most basic static converters. They are robust and perform well under full load, although they may require more space and be more challenging to maintain than electronic solutions. VFDs may be the better solution if precise speed control or energy savings are the goal, but static phase converter options may be less expensive for light-duty startups.
What are the differences between a static phase converter and other 220V single-phase to 3-phase converter types?
The most straightforward and cost-effective 220V single-phase-to-3-phase converter alternative is a static phase converter, which provides a temporary third phase only during motor startup. The other option is rotary phase converters or VFDs, which never fail to deliver the specified three-phase power under load. However, using static converters may reduce the motor’s efficiency, and only the lightest loads should be imposed on them. Static converters are compact and low-cost; however, in continuous operation, they may be inefficient and cause increased motor heating. For industrial equipment that requires full torque and constant operation, rotary or digital phase converters are typically recommended.
Is a variable-frequency drive (VFD) a suitable 220V single-phase-to-3-phase converter for my motor?
A VFD could perform well as a 220V single-phase-to-3-phase converter, providing good speed regulation, energy savings, and soft-starting and system protection. A VFD with a single-phase input converts the input to three-phase at a frequency and voltage that are fully controlled, which is ideal for variable-speed, highly efficient operation in some applications. In addition, VFDs can limit inrush current, provide human-helpless motor protection, enable regenerative braking, and mitigate harmonics when used with appropriate filters. For instance, selecting the right VFD is somewhat challenging, given that it should be rated for a single-phase input, the motor’s horsepower, and the service factor.
