As for specific electricity industries, the importance of a 400Hz frequency converter can never be underestimated. Converters of this type are indispensable for the development of such industries. They provide power supply to industrial equipment or devices that rely too much on accuracy, dependability, and overall performance. This type of system is also widely used across various industries, including aerospace and defense, as well as high-performance machining. 400Hz frequency converters form the core of operations, specialized to meet power requirements. All these and more are some of the things that you need to know when trying to appreciate 400Hz frequency converters. This article examines the various technologies used in building 400Hz frequency converters, their key areas of application in different sectors, and how these converters have proven advantageous in harsh industrial environments. Regardless of whether you’re an engineer, a technician, or an operator working on power systems within a factory setting, this e-book will offer a lot in educating you on this technology and its pragmatic implications.

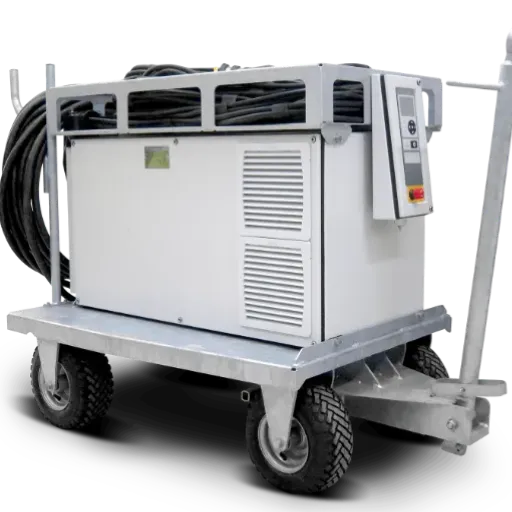

Brief Introduction to a Frequency Converter
Frequency inverters are converters designed to change the frequency of electrical energy in a power line, enabling specific equipment or systems to operate efficiently. It will be possible to achieve the desired energy consumption in motors and electronics. Frequency converters are used most often, and many are employed in the aerospace, manufacturing, and renewable energy fields to minimize energy waste. When discussing frequency converters, they are primarily utilized for two reasons. They may be used to regulate the speed of the motor, manage various international power levels, or other resources, and for hooking up specific instruments in confined locations.
What is a Frequency Converter?
Essentially, a frequency converter is a type of device that enables one set frequency of input voltage or current to be transformed to a required voltage of another frequency as per the application requirements. These sorts of actions usually consist of three key phases. Firstly, the incoming variable frequency oscillation, which can be either direct current (DC) or sinusoidal with a non-varying amplitude, or even a rectangular wave, is converted into a pulsating direct current using the rectifier (or converter) method. This pulsating output signal is then filtered and smoothed to provide a stable and constant voltage supply. The last stage involves an inverter-type circuit, which is used to convert the continuous output of the rectifier back to alternating current (AC) at the grid frequency for the connected equipment, but this time filtered at the required frequency. Frequency inverters of the present generation, which require automatic output waveform shaping, are equipped with matchboxes; yet, controls of straightforward complexity work fine even under the most adverse conditions. These systems are highly flexible and can be used to regulate the speed and torque of the drive with great accuracy, meeting the requirements of complex industrial or commercial applications.
Types of Frequency Converters
| Type of Frequency Converter | Key Features | Applications | Example Parameters |
|---|---|---|---|
| Static Frequency Converters | Compact, efficient, no moving parts | Industrial drives, power conditioning | Input/output voltage, efficiency |
| Rotary Frequency Converters | Mechanical, robust, uses electric motor | Legacy systems, durability-focused setups | Speed range, power ratings |
| DC Link Converters | Converts AC to DC for intermediate stage | Precision motor control, regenerative systems | Voltage control, harmonic reduction |
| Cycloconverters | Direct AC-to-AC conversion, low frequency | Large synchronous motors, rolling mills | Input/output frequency ratio, waveform |
| Matrix Converters | Direct power conversion, compact design | Aerospace, manufacturing, renewable energy | Switching frequency, heat management |
Importance of Frequency in Power Systems
No can foster the trendy transformation of power systems—deviations from testing the desired focus. The need for such an adjustment might be made clear. Run some kind of difference. The lapse of time from which the event takes place ensures that someone knows the focus is opposite, where one needs to conclude. The more emphasis is placed on 50 Hz or 60 Hz, which is the standard frequency in any network, the clearer the consequences of even the smallest inherited elements in the system of any functioning designed unit become. Examples of such renewable sources include wind power and solar power, where the time-varying nature of the input power source increases the need for frequency control in recycling method systems.
To address these challenges, various advanced technologies have been employed, including Frequency Response with Automatic Generation Control (AGC). While the Frequency Response can balance the power supply and demand in a manner as real-time as possible, AGC systems maintain balance through the control of generators, which is far more effective. In the same vein, the indigenization of innovative grid technologies and renewable energy systems has made frequency regulation more dynamic, allowing the systems to keep up with the quickly changing demands of the system and the on/off cycle of solar and wind intermittency, while upholding grid stability and efficiency.

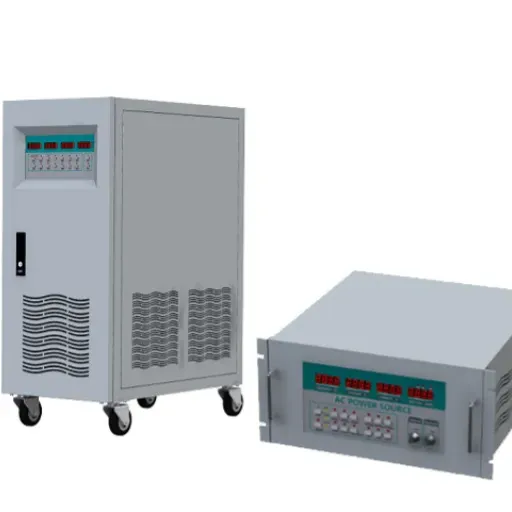

Exploring 400Hz Frequency Converter
400Hz AC frequency converters are predominantly used in aviation, defense, and other sophisticated applications to power loads designed for high-frequency operation. Those in the 400 Hz frequency domain are compact or relatively lighter compared to those in standard 50 Hz and/or 60 Hz power voltage systems, and are particularly helpful in aircraft and naval systems where space restrictions and weight constraints are highly considered. It is important to note that the equipment that must be powered by these converters, particularly communication systems and other onboard signal processing devices are a great host in maintaining communication within the aircraft which can be very dangerous when cut communication. These converters have also proven to be effective when used appropriately on a variety of machines, with no failures ever present in their operations. This has enabled the use of modern 400Hz converters, which offer even better performance due to their increased energy efficiency and seamless integration into the systems used.
What is a 400Hz Frequency Converter?
A frequency converter operating at 400Hz is not a standard electrical power device; instead, it is designed to convert the busbar voltage at 50Hz or 60Hz to 400Hz. One of the most critical applications of 400Hz frequency technology is the reduction in size and weight of electrical machines such as transformers and motors. These compact and efficient devices are achieved by increasing the frequency of the power delivered by these devices. These frequency converters are ideal for applications in areas where constraints such as space and weight are imposed. Modern 400Hz frequency converters are equipped with advanced solid-state technology that employs more sophisticated control mechanisms, increases the service life of these devices, and especially enhances energy efficiency. These devices not only generate stable and balanced power, but they are also equipped with features that deliver high-quality power necessary for the operation of other sophisticated circuits, including avionics, navigation systems, and in-flight mobile services. They, with all the advantages possessed by 400Hz frequency converters, allow them to serve a particular market, which made it a permanent component of the POWER ELECTRONICS market.
Applications of 400Hz Converters in Aircraft
Avionics Systems
In the case of avionics, the stable and precise functioning of the equipment is essential, especially for radar and GPS navigation receivers and relay devices, which are irreplaceable in the lives of pilots. Reliability is critical, as even the highest Limits advise pilots to prioritize productivity while remaining safe.
Cabin Systems
Onboard comfort will also depend on the ability to supply power to lighting systems, entertainment systems, and climate control systems through any reliable power sources. 400Hz AC power sources effectively eliminate power surges, voltages, and stall them; delays, power cuts, and power drops will not occur, and no other explanation will be required, including transient rejections for the equipment installed, even for long trips.
Ground Power Units (GPUs)
For external power sources and the maintenance of aircraft systems without utilizing the aircraft’s energy content, a GPU, or ground power unit, is a trailer that incorporates 400 Hz in-line converters. This converts the alternating current supply into 400Hz voltage to feed the aircraft’s electrical appliance,s facilitating the accomplishment of pre-flight checks and maintenance at air transport.
Emergency Power Backup
In the event of an aircraft’s primary power failure, it is paramount for the backup power system to be reliable and effective in supplying power. 400Hz converters aid in the uninterrupted operation of these emergency systems, such as safety lighting and critical instrumentation, during such instances.
Hydraulic and Auxiliary Systems
Electrical systems are prevalent in several hydraulic pumps and auxiliary power units (APUs), as well as some other movement and power components. 400Hz frequency converters enable the reduction of physical art designs, making the electrical systems more accessible for every pumping unit, which in turn increases the overall accuracy of the aircraft as a system.
Electric Motor Drives
In modern aircraft, electric motors are also used on a significantly larger scale, replacing turbines in fuel pumps, vault mechanisms, air offtake, and other subsystems. This is made possible by the use of suitable dynamic frequency converters, operating at 400 Hz, for powering the motors as mentioned earlier and ensuring their precise and reliable operation.
Comparison of 400Hz and 60Hz Systems
| Parameter | 400Hz Systems | 60Hz Systems |
|---|---|---|
| Frequency | Operates at 400Hz | Operates at 60Hz |
| Size of Components | Smaller, lighter components | Larger, heavier components |
| Primary Use | Aeronautics and military applications | Commercial and residential power systems |
| Power Efficiency | More efficient for lightweight systems | More efficient for high-power applications |
| Voltage Drop | Lower voltage drop in transmission | Higher voltage drop over distances |
| Weight Considerations | Optimized for weight-sensitive systems | Not optimized for weight constraints |
| Cost | Higher due to specialized components | Generally lower for standard systems |
| Infrastructure | Requires specialized equipment | Supported by standard infrastructure |
| Compatibility | Limited to specific applications | Widely compatible with various devices |
| Transmission Distance | Less suitable for long-distance power | Suitable for longer-distance transmission |

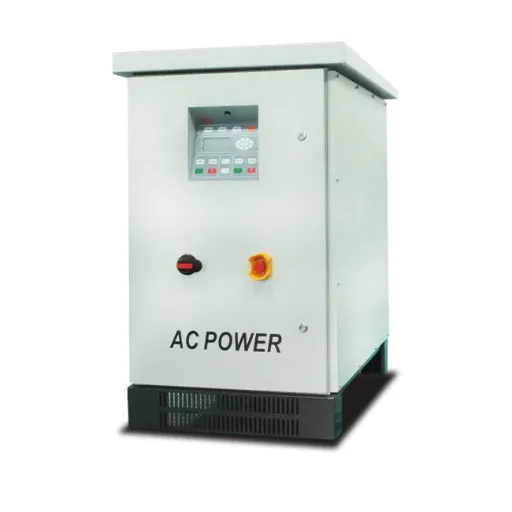

Technical Specifications and Ratings
During the assessment of the technical specifications and ratings of performance, the following factors are of utmost relevance:
- Efficiency: The amount and quality of the output provided can be expressed in terms of the energy consumed. Conventional systems are estimated to operate at efficiencies ranging from 85% to 95% of their maximum in many cases.
- Power Capacity: Any given system has a design power rating. Small systems may have hundreds of watts of rated power, while many large systems with power outputs of several megawatts are provided for multifarious purposes.
- Durability: Operational maintenance features built into components to ensure prolonged useful life. Projections of endurance range from 10 to 25 years for various applications, depending on location or wear rate.
- Safety Standards: Seals and gaskets, such as fluid seals and gauges, are entirely safe in regular operation and adhere to the regulations provided by organizations like ISO and ANSI.
These enable the presence of versatility in different models and scenarios; hence, they are vital in the selection process.
Understanding Power Ratings: 500VA to 200kVA
Power ratings between 500VA and 200kVA are established to evaluate the performance of electrical devices and systems. Basically, such rating systems describe the maximum sum of two components: active power consumption (specified in watts) and reactive power consumption (specified in var). Smaller systems, such as a home uninterruptible power supply (UPS) or an office UPS, will have smaller capacities that may also be expressed in volt-amperes (VA) or VAR, for example, 500VA.
Alternatively, power ratings as high as 200kVA will be suitable for use in heavy industrial applications, spanning from typical single-phase systems to large power backup systems. This will be mainly within the transformer rated bands allowed by the relevant standard at the time of use. The heat dissipation and mechanical supports, up to the highest coupled load values in the range, would be critical due to environmental influences such as air temperature, as well as the type of load being served. These systems operate close to the ‘stated full load value’ and require good heat management and effective voltage stabilization practices to protect the apparatus and optimize its helpful life. These insights are essential in ensuring the proper integration of the equipment in the process in a way that meets every business need.
Single Phase vs. 3-Phase Frequency Converters
| Parameter | Single Phase Frequency Converter | 3-Phase Frequency Converter |
|---|---|---|
| Power Supply | Operates on single-phase input power | Operates on three-phase input power |
| Power Output | Limited to lower power applications | Suitable for high-power applications |
| Efficiency | Lower compared to 3-phase converters | Higher efficiency due to balanced load |
| Load Compatibility | Limited to single-phase equipment | Supports 3-phase industrial equipment |
| Voltage Stability | May experience voltage fluctuations | Provides stable voltage output |
| Size and Weight | Typically smaller and lighter | Larger and heavier due to design complexity |
| Cost | Generally more affordable | Higher cost due to advanced functionality |
| Installation Requirements | Easier to install, fewer connections needed | More complex installation, additional wiring |
| Applications | Residential and small business usage | Industrial and commercial applications |
| Starting Torque Capability | Lower starting torque in motor applications | High starting torque for heavy-duty motors |
Static vs. Rotary Frequency Converters
| Key Point | Static Frequency Converters | Rotary Frequency Converters |
|---|---|---|
| Efficiency | Higher efficiency due to fewer moving parts | Lower efficiency due to mechanical losses |
| Maintenance Requirements | Minimal maintenance needed | Requires regular mechanical maintenance |
| Noise Levels | Operates silently | Produces mechanical noise during operation |
| Power Density | Higher power-to-size ratio | Lower power-to-size ratio |
| Reliability | Higher reliability, fewer failure points | More prone to mechanical failures |
| Load Compatibility | Limited to static or predictable loads | Handles dynamic and varying loads |
| Lifespan | Longer lifespan with less wear | Shorter lifespan due to moving components |
| Scalability | Easy to scale for additional applications | Harder to scale without overhauling design |
| Cost of Ownership | Lower long-term operational costs | Higher operational and maintenance costs |
| Environmental Impact | Eco-friendly, no mechanical waste | Creates mechanical waste over time |

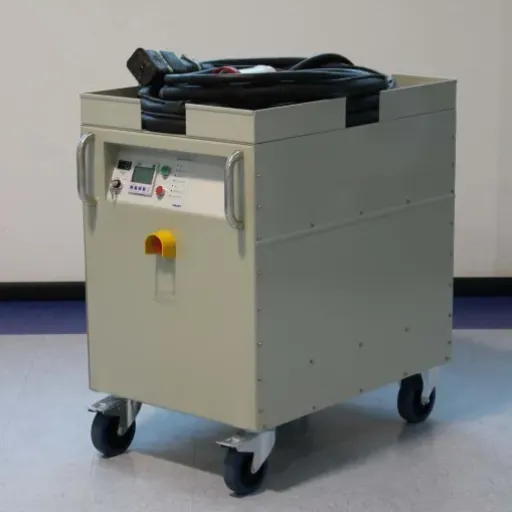

Advantages of Using 400Hz Frequency Converter
Compact Design and Lightweight Equipment
A 400 Hz frequency enables the design of smaller systems, utilizing smaller component sizes, while maintaining a lower total weight. Electrical systems with such high frequencies have been primarily used in the defense and space industries for weight and bulk reduction purposes.
Higher Power Efficiency
Energy losses in equipment operating in a 400Hz system are significantly lower when compared to operating in any other lower-frequency system, due to its high performance.
Improved System Performance
The utilities requiring these compounds can be better served by the advantages of the design enhancements, which reduce energy losses and allow the circuits to operate without hesitation.
Compatibility with Specialized Equipment
The use of 400 Hz power systems is a common practice in most military and naval operational units, and 400 Hz components and equipment are becoming increasingly widespread in many other industrial applications.
Reduced Magnetic Component Size
If the fundamental frequency is increased to 400Hz, the sizes of motors and transformers will be significantly smaller compared to those designed for 50Hz or 60Hz; therefore, less raw material will be required to manufacture them, and their production will also be cheaper.
Benefits for Industrial Applications
Improved Energy Efficiency
Thus, the 400Hz equipment in the production sphere proves to be more energy-efficient. That is, in comparison with situations where the mains power the same devices at 50Hz or 60Hz, energy savings of 15-20% can be achieved, consequently.
Lower Weight and Size of Components
The use of a 400Hz frequency in equipment design achieves several benefits, including reducing the size of transformers, inductors, and other equipment, such as motors. Origin boiling hard learn to make mighty, Wide Band Start Reducers when their frequency is 50Hz. From the addition, a 50Hz transformer and a 400Hz transformer can have the same rating, but the weight of the 400Hz element may be up to 50% lower. Additionally, the volume occupied by the two is likely to change, with the 400Hz transformer occupying only 40% of the volume of the 50Hz transformer.
Enhanced Power Density
With high frequencies, the power output in electronic systems is increased. At a 400Hz frequency, most power supplies and conversion systems can typically deliver power at a density that is almost 1.5 times that of the system operating at 50Hz or 60Hz, making them very convenient to use in industries where modern and effective systems need to be installed in a small space.
Improved System Performance
Processes that require higher precision and faster response rates, such as refractive processes and automation systems, benefit from the quicker and more stable 400Hz machinery. It is particularly observable in industries such as semiconductor manufacturing, where high frequencies facilitate very weak signals and precise settings.
Cost Efficiency in Material Usage
Moreover, it is possible to reduce losses in 400Hz units because magnetic materials are in a thin cross-section. With the help of such systems, most industries have the opportunity to eliminate up to 30% of copper and iron in the production of transformers and motors, which are the largest consumers of these metals and therefore tend to be expensive due to the need to cover production costs.
Ease of Integration with Advanced Technologies
The adjustment of 400Hz adapters to contemporary digital and electrical implementations is very high, as this component technology can easily adapt to advanced technologies within the changes implemented in the industry and digital sector. For instance, a vast number of automation controls and inverters on recent and new equipment are specified for 400Hz operations, as this does not require any extraordinary alterations to be made.
Efficiency in Power Conversion
High-frequency technologies, for instance, systems based on 400Hz, tend to have better power conversion efficiency than systems based on lower frequencies. This is explained by the fact that in high-frequency systems, among other factors, there are fewer losses due to the results of this switching process. Additionally, high frequencies result in lower core losses in transformers and improved rectifier performance. Additionally, the reactive elements—inductances and capacitances—have reduced dimensions at high frequencies, resulting in lower heat generation and making energy transfer more efficient. Ultrafast diode technology is based on silicon carbide (SiC) and gallium nitride (GaN) semiconductors, which considerably enhance the performance of high-frequency converters in terms of higher power and lower conduction losses. These improvements in technology collectively underpin the potential of 400Hz systems in setup applications that require high efficiency transformation and on-time performance.
Impact on Equipment Performance
400Hz power systems are the backbone of equipment; hence, the influence of their performance, efficiency, and sustainability is readily apparent. It is often the case that the higher the frequency, the smaller the size and weight of magnetics, transformers, and inductors used in the system. Especially in the interest of saving weight, the aerospace and defense industries love 400Hz systems. Besides this, every new generation of semiconductor devices has lower switching losses, which prolongs the lifetime of equipment and diminishes thermal effects.
Research studies and empirical evidence indicate that 400Hz systems have a high capability for power loss recovery, while simultaneously ensuring a constant output power, which is significant, particularly in sensitive facilities such as avionics systems and medical equipment. This helps maintain functional accuracy and minimize operational losses during power outages caused by electrical interference. Advanced control schemes also help in controlling these loads to improve the reliability of such systems further. Therefore, 400Hz generators cannot be ruled out in applications where uninterrupted power is essential for the successful fulfillment of tasks.

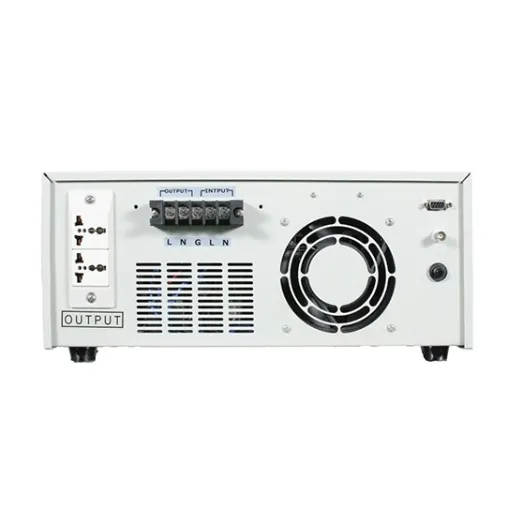

Installation and Maintenance Considerations
Elect 400 Hz systems, which are to be installed, demand an accurate assessment of the premises. This is a car on a crown, which is a preemptive action against the created problems. The first step is to validate and check the earth’s earthing, the heat signatures of the systems, and the heat loss, among other factors. The world should be earthened if there was any possibility of touching metal to other conductive surfaces/footwear. Equally as necessary is scheduled servicing, which includes inspecting the tightness of the wires, air filters, oiling and coolant systems, as well as paying attention to the age and possible faults in materials related to voltages. Based on the manufacturer’s specifications, regularly tuning up and checking the equipment periodically will save most of the energy and help it develop. Furthermore, experienced personnel should install and service technical equipment to minimize the probability of undesirable outcomes and ensure compliance with safe operational rules.
Installation Requirements for 400Hz Converters
A correct foundation of 400Hz converters is imperative to guarantee that the machines work as expected and are also safe to work with. In the first place, the place where the converters are to be put should comply with the predetermined weather conditions, in that the temperature should be within limits, and there should be fans and draughts present if required by the conditions, there should be no damp in the air or vibration in excess of the norms. The installed converter should be provided with sufficient space to ensure that air circulation does not cause it to overheat. This will also prevent issues with filter changes or other maintenance due to clearance, as directed by the manufacturer.
As mentioned above, the cable distribution systems should adhere to conventional wiring practices to minimize voltage drops, load imbalances in the components, and thereby reduce capacitance losses. Additionally, these cables should be overground and not undersized, to further reduce the energy wastage effects and thus the converters. Further, instead of overacting the requirements containment wiring, it is better to lift the power converter and install it properly in a vertical position.
Additionally, the overall efficiency and reliability of the produced wattage should also be verified. This is especially crucial in the case of electrical energy generation, where abnormal fluctuations of fundamental frequency, also known as “harmonic distortions,” are known to interfere with the process deleteriously. Background about the usage of resistance welding shows that a great deal of distortion work can be done between the cooled sides and a limited time of heating due mainly to the low temperatures of these welding operations, so that a very low speed of inversion in electrical energy from the non-screened region during the predetermined time is established at the start. And, fusiform strains are destroyed during several of their aft cartoon strip maidens. Instead, academic air training offers little practical experience, as driving distances, freezing temperatures, and traffic constraints currently hinder many repairs.
Routine Maintenance Practices
Maintaining up-to-date and properly functioning mechanical components is the cornerstone of their long-term operation. Organizational steps should include regular visual verification of the systems for possible external defects, such as cracks, rust, or decreased tightness. Furthermore, during assembly, the use of thermal imaging cameras helps determine the temperature at critical points, as thermal geophysics is the only technique that allows for the direct measurement of an object’s temperature. Such practices enable stable functioning and reduce downtime for air compressor maintenance.
The assessment of insulation health and the prevention of catastrophic failures in high-power systems rely on oil analysis of the transformer oil and dielectric testing. The performance of the circuit breakers and the protective relays requires tests for each relay and adjustments to each relay to allow these devices to function when disturbances arise actively. The use of predictive maintenance technologies, such as vibration and ultrasonic diagnostics, is highly efficient as it can identify potential failures within a running device. Follow these practices by observing all the industry standards and legislations, and you will realize a significant improvement in getting more out of the system safely.
Reference Sources
-
Design of a 400 Hz Current-Source Single-Phase Inverter for Avionic Systems
- Key Findings: This study proposed a current-source inverter designed for avionic systems. The topology includes a DC link inductor in series with the battery, ensuring a constant current source. The design improves efficiency and reliability in avionic applications.
-
Power Supply Design Considerations for 400Hz Aircraft Applications
- Key Findings: This research focuses on a 5kW power supply design for aircraft applications. It employs a Boost-type power factor correction topology and a Delta rectifier to ensure compliance with aircraft power standards.
Frequently Asked Questions (FAQs)
Q: What is a 400Hz frequency converter, and how does it work?
A: A frequency converter at 400Hz is what might be called a quality power conversion system. This term refers to a device that converts power from a low-frequency source, typically 50Hz or 60Hz, to a higher frequency of 400Hz, which is the application in question. The technology comes in handy for various sectors, with the aeronautics industry being a prime example, as it requires supplying 400Hz power systems for planes while on the ground. The device also matches the input frequency and voltage, ensuring that the equipment in use is not only safeguarded from damage but also operates within the required frequency range. These converters come in solid-state frequency converter form or can even be found in the form of rotary converters, depending on the general design and needs of the application.
Q: How do 400Hz converters benefit aircraft ground power systems?
A: The use of a 400Hz Aircraft Ground Power (AGP) system is essential to supply line power at on-board power frequency while the airplane is parked and surplus AGP power is not available. Mostly, it is 400 Hz that system designers prefer to use, as using this frequency in the power line network allows for a considerable reduction in power supply weight compared to a 60 Hz power supply. This issue is vital in aviation since addressing weight issues in an aircraft can, in a real sense, lead to reduced operational costs and increased productivity. Furthermore, these converters are typically of true sine wave form, ensuring that any power quality issues do not affect electronic components. Different load conditions can be handled, especially in big aircraft, where the power rate may be 30kVA or even 150kVA.
Q: What are the differences between rotary and static frequency converters?
A: Rotary and static converters have a similar primary purpose, which is changing the amount of the frequency signal fed into the system to the frequency signal of another range, but they perform very differently since they use different methods to achieve this. Accordingly, solutions such as a generator-motor setup are included in the scope of electromechanical design for rotary converters. Static converters, in turn, are based on solid-state electronic components, which in turn allows for a small size and high efficiency level. Static frequency converters feature voltage- and frequency-adjustable outputs, making them easily adaptable for various practical applications, particularly in manufacturing systems, where they can perform their functions effectively.
Q: Can a 400Hz converter support various load types like motors and GPUs?
A: Well, it is possible to use a 400Hz inverter for different loads, whether it’s motors or a GPU, if the inverter size matches the power output requirement for the specific load. For example, if a motor runs at 400Hz, the inverter should deliver an appropriate kVA, such as 3kVA or 20kVA, to achieve the desired output. The operation of an industrial GPU is similar to it. Many industrial processes require a proper voltage, and some even require voltage stability. The sine wave nature of the output is crucial in electronic types of loads, as it reduces device malfunctioning due to overheating issues and minimizes losses. Moreover, the overloading aspect in the converters also helps to protect the connected equipment from damage resulting from power spikes.
