In the wake of the global power system complexities, frequency compatibility is mainly viewed as a stumbling block. The 50Hz frequency converter serves as an excellent enabler for industries and applications, facilitating easy conversion between power standards. It starts from running a machine at a place where the grid frequency is different to keeping sensitive equipment in prime condition. Understanding how these converters work is essential for anyone looking to work with machinery in areas with different grid frequencies or those that require sensitive operation to maintain optimal conditions. This article highlights the fundamental basics of the 50Hz frequency converter, its applications, and what it means for the new industrial world globally. Join us as we explore the key concepts that will help you make an informed decision about your frequency conversion needs.
Introduction to Frequency Converters
Frequency converters are devices used to convert electrical power supplied to them at one frequency to a supply at a different frequency. This is done so that the equipment can operate in a region where the grid frequency differs or if it is required for a particular application to have a non-standard frequency. Such devices convert the frequency from 50Hz to 60Hz or vice versa, allowing machines to work together while ensuring maximum performance. Industries such as manufacturing, aerospace, and energy, where precision and reliability are of utmost importance, commonly use frequency converters.
What is a Frequency Converter?
This form of frequency conversion equipment, so to speak, changes the frequency of an electrical power supply to suit the requirements of specific equipment or applications with which it is expected to operate.
Types of Frequency Converters
| Type | Key Features | Applications | Advantages | Disadvantages |
|---|---|---|---|---|
| Voltage Source Inverter (VSI) | Converts DC voltage to AC voltage | General motor control | Robust, simple design | Limited dynamic response |
| Current Source Inverter (CSI) | Converts DC to AC | High torque, dynamic braking | High torque, braking capability | Complex structure, high harmonics |
| Direct Torque Control (DTC) | Precise torque and speed control | Robotics, CNC machines | High dynamic performance | Expensive, complex |
| Matrix Converter | Direct AC-to-AC conversion | Compact, efficient systems | Compact, no DC link | High cost, less common |
| Scalar Control | Maintains voltage-to-frequency ratio | Simple motor control | Easy to implement | Limited precision |
| Vector Control | Precise speed and torque control | High-performance systems | High precision, fast response | Expensive, complex |
| AC-DC-AC Converter | AC to DC to adjustable AC conversion | Industrial automation, HVAC | Versatile, widely used | Requires filtering |
| AC-AC Converter | Direct AC frequency adjustment | High-power, low-frequency systems | Simple, efficient | Limited frequency range |
Importance of Frequency Conversion
In a wide range of industries, frequency conversion plays a crucial role in maintaining the operation of electrical equipment and enhancing operational efficiency. Some of the critical points about frequency conversion are as follows:
Energy Efficiency
Controlling frequency converters to run motors at the appropriate speed and torque results in energy conservation and reduced costs. Researches show that frequency conversion systems may save energy by as much as 30% in industrial-level applications.
Equipment Protection
A smooth power supply, provided by frequency converters, reduces the risk of shots and surges that may cause equipment failures and damage to critical components.
Global Compatibility
Frequency converters enable equipment designed for a specific frequency (such as 50 Hz or 60 Hz) to operate in areas where power is supplied at a different frequency, thereby facilitating global applications.
Process Control and Precision
They precisely control the speed of motors. In applications where speed must be consistent, such as food processing, chemical manufacturing, and textiles, this is important.
Reduction of Mechanical Wear
By providing controlled start and stop operations for motors, converters help reduce mechanical stresses on components, thus extending the equipment’s lifespan and lowering expected maintenance costs.
Thus, frequency converters are an absolute must nowadays in any modern industrial or commercial setup.
Understanding 50Hz and 60Hz Systems
Systems of 50Hz-60Hz currents refer to the chosen frequency for the AC in an electrical system. These frequencies are worldwide standards: 50Hz predominates in Europe, Asia, and Africa, while 60Hz is the common standard for North America and some parts of South America.
Regional standards and historical infrastructure determine the decision on frequencies. There are very few functional differences between the two from a usage point of view, except that, due to faster speeds, 60 Hz equipment may be smaller and slightly more efficient. To adapt between systems with 50Hz and 60Hz frequencies, frequency converters may be required, or alternative, compatible equipment may need to be used.
Differences Between 50Hz and 60Hz
| Parameter | 50Hz | 60Hz |
|---|---|---|
| Frequency | 50 cycles per second | 60 cycles per second |
| Speed | Lower machine speed | 20% higher machine speed |
| Torque | Higher due to 220V systems | Lower due to 110V systems |
| Cooling | Better cooling efficiency | Slightly less cooling efficiency |
| Bearing Lifetime | Longer due to lower speed | Shorter due to higher speed |
| Machine Size | Larger for the same power output | Smaller for the same power output |
| Power Losses | Lower constant and variable losses | Higher constant and variable losses |
| Noise | Lower humming noise | Higher humming noise |
| Conductor Size | Smaller due to lower current | Larger due to higher current |
| Corona Losses | Lower corona losses | Higher corona losses |
| Insulation Cost | Lower insulation cost | Higher insulation cost |
| Efficiency | Higher efficiency | Slightly lower efficiency |
Applications of 50Hz and 60Hz Systems
Power Generation and Distribution
50Hz is more prevalent in countries like India, Europe, and most parts of Africa and Asia. The working frequency of 60Hz is primarily found operating in North America, South Korea, and certain parts of South America. Forced to make a choice, these factors will modify the design of generators, transformers, and power infrastructure in these regions.
Data Example: Most European countries use 50Hz as the working frequency of their National Grid, while the USA and Canada are standardized at 60Hz.
Household Appliances
Household appliances such as washing machines, refrigerators, and A.C. units, and lighting are manufactured by the standard frequency of a region. Appliances from another frequency may act inefficiently or even get damaged.
Data Example: A 60Hz microwave might operate more slowly or overheat in a 50Hz supply situation due to a mismatch in operational cycles.
Industrial Machinery
Machinery used in many industries is custom-designed for a country’s specific frequency to achieve optimal performance, thereby reducing wear and tear, including manufacturing tools, pumps, compressors, and conveyor systems.
Data Example: Textile machinery produced for 50Hz regions would operate at speeds synchronized to the frequency, whereas a switch to 60Hz would adversely affect processes.
Railway Systems
The electrified railway network typically utilizes the native frequency of the country’s power grid, although some specialized railway systems employ their own frequencies for improved efficiency and reduced power loss.
Data Example: European rail systems operate at 16.7Hz, the frequency converted from 50Hz supplies, while the USA operates direct railway at 60Hz.
Telecommunications and Electronics
Data centers and mobile telecommunication networks also follow the frequency of the region to provide uninterrupted service and synchronize their equipment. Consumer electronic devices, such as televisions and gaming consoles, are synchronized to their respective regional frequency standards.
Data Example: A 60Hz TV may flicker or fail to display at all in a 50Hz region due to a timing mismatch.
These demonstrate various applications for industries and consumers, which adapt to the regionally practiced electrical frequency and succinctly explain the reach of frequency dominance over infrastructure and device compatibility.
Standard Devices Using 50Hz and 60Hz
- Household Appliances: Examples include washing machines, refrigerators, and microwave ovens. These devices are usually expected to operate at maximum efficiency at the regional frequency. A washing machine designed for use in 50Hz regions may overheat or have a shorter lifespan if used in a 60Hz region.
- Industrial Equipment: Conveyor belt systems and heavy-duty motors are often frequency-dependent. Operating this equipment outside its designated frequency range may lead to reduced efficiency and even mechanical misalignment.
- Lighting Systems: Fluorescent and LED lighting systems operate with a considerable dependency on the electric frequency. Lights functioning at 50Hz will exhibit noticeable flickers if run at 60Hz; such flickering effects cause significant discomfort and visual fatigue.
- Clocks and Timers: Various analog clocks and timers utilize synchronous motors that rely on the power frequency to maintain accurate timekeeping. Moving across a 50Hz-60Hz boundary makes these devices lose or gain time.
- Power Tools: In most cases, that includes drills, saws, grinders, and so on, which are primarily designed for local frequency standards. A power tool running at 50Hz, initially developed for 60Hz use, will experience a reduction in both speed and power output, thereby undermining its performance.

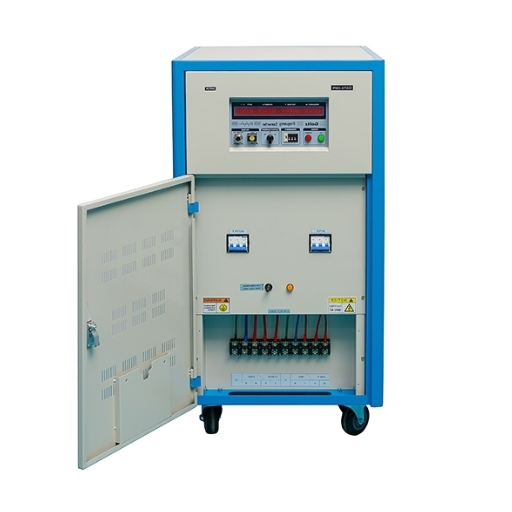

50Hz Frequency Converter Explained
This frequency converter is designed to change the electrical power frequency from 50 Hz to any other frequency, such as 60 Hz, and vice versa. They occur mostly when it becomes necessary to operate an electrical device or machine designed for one frequency standard in a region of differing frequencies. It achieves the electrodes working at the proper frequency and protects from possibly damaging effects due to mismatched frequencies. Modern frequency converters are efficient and reliable, easy to use, and thus units essential in industries and applications requiring frequency adaptation.
How a 50Hz Frequency Converter Works
The 50Hz frequency converter receives a power supply of a given frequency and converts it into a steady output of 50Hz, suitable for tool or system operation at this frequency. Some of the main steps involved in the process are:
- Input Rectification: First, the converter rectifies input AC power into DC. Rectification removes the AC component of the input current, allowing the current to flow smoothly in one direction.
- DC to AC Conversion: After rectification, the DC converts back into AC at a frequency of 50Hz. This process utilizes an inverter, whose output power frequency and voltage can be controlled with great precision.
- Voltage and Frequency Adjustment: In modern frequency converters, users can adjust output voltage and frequency to custom values. This flexibility fits a variety of applications. Such systems, as a rule, provide the manufacturers’ microprocessor or digital controls to ensure precision and efficiency in operation.
- Output Filtration: The AC output power is then filtered to remove undesired harmonics and noise. Accordingly, pure power is supplied to the sensitive equipment.
Main Technical Data for a 50Hz Frequency Converter
- Input Voltage Range: Typically 110V to 480V, depending on the device type and application.
- Output Voltage: Adjustable, preferably to typical standard voltages like 230V or 400V.
- Efficiency: A modern type can have an efficiency of 90-95%, thereby minimizing energy loss.
- Power Capacity: Available over a wide range of power capabilities, from the smallest of power sources (500W) to enormous industrial power systems (>100kW).
- % Harmonic Distortion: Also, many converters keep THD lower than 2%, rendering them very friendly to sensitive instruments.
Applications and Benefits
The 50Hz frequency converter has a wide application in manufacturing, aerospace, and maritime industries, where the frequencies of hardware often must adhere to strict standards. Essentially, these converters enable the smooth functioning of machinery originally designed for 50Hz systems within regions where 60Hz is the norm. Furthermore, such converters serve to improve energy efficiency while reducing wear on equipment, thus enhancing the overall lifespan of the system. Due to new technological advancements, these devices are becoming increasingly compact and well-suited for a variety of industrial applications.
Benefits of Using a 50Hz Frequency Converter
- Energy Efficiency: Since the frequency converter optimizes the power supply frequency, it reduces energy consumption, which ultimately translates to significant cost savings. It is believed that energy-efficient systems reduce operating costs by up to 20%.
- Increased Equipment Life: With machines being used at their design frequency, there is minimal wear and tear; hence, the machine can last significantly longer without requiring re-shelling and rework.
- Operational Stability: Frequency converters ensure the steady operation of equipment, even in areas where the power supply fluctuates. This prevents interruptions and malfunctions associated with unstable supply.
- Higher Adaptability Between Regions: A 50 Hz frequency converter enables equipment to operate in areas with a different frequency standard, such as 60 Hz, without necessitating significant changes.
- Reducing Downtime: As frequency converters mitigate shock and sudden changes to equipment, breakdowns are correspondingly reduced, leading directly to a decrease in downtime and an increase in productivity.
Types of 50Hz Frequency Converters
| Type | Key Features | Applications | Advantages | Disadvantages |
|---|---|---|---|---|
| Voltage Source Inverter (VSI) | Converts DC voltage to AC voltage | General motor control | Robust, simple design | Limited dynamic response |
| Current Source Inverter (CSI) | Converts DC to AC | High torque, dynamic braking | High torque, braking capability | Complex structure, high harmonics |
| Rotary Frequency Converter | Mechanical conversion of frequencies | Large industrial applications | High power capacity | Noisy operation |
| Solid-State Converter | Electronic frequency conversion | Compact, quiet applications | Precise, efficient | Limited power capacity |
| AC-DC-AC Converter | AC to DC to adjustable AC conversion | Industrial automation, HVAC | Versatile, widely used | Requires filtering |
| AC-AC Converter | Direct AC frequency adjustment | High-power, low-frequency systems | Simple, efficient | Limited frequency range |
Practical Applications of 50Hz Frequency Converters
- Industrial Machinery: With frequency adapters, machinery designed for a specific frequency can seamlessly integrate with operations globally, ensuring compatibility and reliability.
- Power Supply Systems: They stabilize and adjust power supplies when frequency standards vary, ensuring equipment does not fail.
- HVAC Systems: Frequency converters enhance heating, ventilation, and air conditioning systems by providing the necessary power frequency.
- Marine and Offshore Equipment: Frequency converters guarantee the efficient operation of all equipment aboard ships and offshore platforms.
- Renewable Energy Systems: Their use becomes vital in integrating renewable energy sources, such as wind or solar, into power grids operating at different frequencies.
Industrial Applications
With large and complex industrial operations, frequency converters play multiple roles to ensure the smooth operation of machinery and effective energy efficiency management. These operations can be listed as five major industrial applications:
Manufacturing and Production Plants
Frequency converters control the speed and torque of machinery, such as conveyors and industrial mixers. This leads to accurate performance with energy efficiency, reducing operational costs.
Pulp and Paper
Converters regulate paper machine speed to improve product quality and minimize equipment wear.
Mining
These converters ensure stability by regulating heavy equipment under adverse working conditions, including hoists, crushers, and mills. At the same time, they conserve energy.
Commercial Building HVAC
These converters optimize the energy consumption of large HVAC systems by adjusting motor speeds according to demand.
Water and Wastewater Treatment
Frequency converters are used for pumps and aerators to precisely regulate flow rate and oxygenation functions, thereby saving energy and managing water efficiently.
Residential Uses
Frequency converters also contribute to residential energy efficiency and improved appliance efficiency. Some of the uses of frequency converters in homes are the following:
Heating and Cooling Systems
Frequency converters are used to speed up compressors and fans in heating, ventilation, and air conditioning (HVAC) systems, enabling comfortable temperature control with low energy consumption. It has been suggested that an HVAC system using frequency converters may save even up to 30% in electricity consumption.
Refrigerators
When using frequency converters in modern refrigerators, these systems can vary the compressor speed according to cooling demand, allowing them to operate much quieter and save energy. This also increases the life of the refrigerator and decreases power bills.
Washing Machines
Controlling the speed of motors, frequency converters in washing machines work to improve operational efficiency. This technology enables variable spin speeds and gentle treatment of delicate fabrics, ensuring both good performance and energy savings of almost 20-40%.
Pool Pumps
Pool pumps equipped with frequency converters run to meet water circulation demands, significantly reducing energy wastage and, in turn, lowering electricity bills by approximately 50%.
Home Automation Systems
Frequency converters enable linked devices in smart homes, such as motorized window blinds, garage doors, and cameras, to function smoothly and efficiently with the least amount of energy possible.
These applications provide insight into how frequency converters offer cost savings and environmental benefits in residential applications.
Commercial Applications
Frequency converters are essential to commercial activities as they optimize performance and conserve energy in an environment filled with numerous applications. Below are five main commercial applications:
Offices and HVAC Systems
Frequency converters can adjust the speed of motors in HVAC systems, thereby conserving energy. It is estimated that the use of frequency converters in HVAC systems can result in energy savings of up to 30%.
Industrial Machinery Control
The speed control of modern industrial machines utilizes frequency converters for cutting, shaping, and moving materials, thereby enhancing operational accuracy and extending the equipment’s lifespan.
Elevators and Escalators
Frequency converters with smooth acceleration and deceleration make elevators and escalators more efficient and reliable, while saving up to 20% of energy.
Water Treatment and Sewage Treatment Plants
Frequency converters control pumps and compressors in treatment plants, significantly reducing their energy and operating costs. For instance, the energy savings achieved through such methods could be as high as 40% for a plant.
Commercial Refrigeration Systems
Frequency converter systems in supermarkets and large refrigeration plants control compressor speeds according to cooling demand, thus minimizing wastage of excess energy and maximizing performance.
These applications underline the adaptability and effectiveness of frequency converters in enhancing commercial performance and sustainability.
Choosing the Right Frequency Converter
Here are some necessary parameters to take all into account when selecting the correct frequency converter:
- Compatibility: Ensure that the correct converter is selected for your equipment’s power supply, taking into account the voltage, current, and motor type.
- Load Requirements: The converter shall be chosen to meet the demand for load satisfactorily, ensuring the system functions smoothly and efficiently.
- Energy Efficient: Use models that possess high energy efficiency ratings if you intend to minimize running costs and conserve the environment.
- Control Features: Determine the types of controls you require, such as variable speed control or remote monitoring.
- Quality and Support: A reputable brand should be selected, one that guarantees consistent performance backed by a warranty, along with competent customer support.
By concentrating on these factors, one can guarantee peak performance as well as long-life reliability of the respective application.
Factors to Consider When Selecting a Converter
When choosing a converter, I tend to focus on certain key factors. First, I analyze the power requirements. It must be compatible with my system’s requirements. Then, I list efficiency as a priority, to save operational costs and also protecting the environment. Control capabilities, such as variable speed adjustment and remote monitoring, are also on my list for versatility and ease of use. Lastly, I prefer a trustworthy brand with excellent customer service and good warranty support to ensure the unit serves me well for years, thereby alleviating any stress.
Voltage Compatibility: 120v, 230v, and 240v
Before selecting any device or system, it is crucial to verify voltage compatibility for proper functionality and safety. Electrical voltage standards vary across different countries and regions, so it is essential to determine whether the product under consideration meets the voltage requirements specific to the country where it will be used. Below is a more exhaustive list of standard voltage options and their applications:
120v
- Mainly applicable to North America and some Central and South American countries.
- It is a standard voltage for residential places and small appliances.
- Useful for general household appliances.
230v
- This is considered the standard value in Europe, most of Asia, and Africa.
- It caters to high-power devices, such as ovens, washing machines, and industrial equipment.
- Also, it maximizes the distances over which electricity may be transmitted.
240v
- In certain parts of Australia and China, this voltage exists.
- Often for heavier appliances and electrical tools.
- Provides efficient delivery of power.
110v
- Generally available in Japan and specific areas of Taiwan.
- Use of the voltage is commonplace for home and office use.
- Requires specific plugs and adapters for compatibility with foreign devices.
220v
- This voltage is also a staple in India, Saudi Arabia, and Brazil.
- Suitable for almost all consumer and commercial applications.
- Placed alongside some protective grounding systems most times.
Single Phase vs. Three Phase Frequency Converters
| Parameter | Single Phase | Three Phase |
|---|---|---|
| Input Power | Single-phase AC | Three-phase AC |
| Applications | Residential, small loads | Industrial, high-power loads |
| Efficiency | Lower efficiency | Higher efficiency |
| Motor Compatibility | Single-phase motors | Three-phase motors |
| Power Output | Limited to smaller loads | Suitable for high-power applications |
| Cost | Lower cost | Higher cost |
| Complexity | Simpler design | More complex design |
| Performance | Less smooth operation | Smoother operation |
| Torque | Lower torque | Higher torque |
| Usage | Household appliances | Industrial machinery |
References
Power Electronics-Based Voltage and Frequency Controller
This paper discusses the role of power electronics in controlling voltage and frequency, particularly in standalone wind energy systems.
Read the paper here
Simulation of 40 kVA, 400 Hz Power Converter System
This study explores the use of solid-state power or frequency converters for converting 50Hz or 60Hz utility line frequencies.
Read the paper here
Modeling and Simulation of Power Electronics Converters
This document provides guidelines for modeling DC/AC converters for single-phase grid-connected systems operating at 220V and 50Hz.
Read the paper here
Frequently Asked Questions (FAQ)
This 50Hz frequency converter is a device that converts electric power from a 50Hz frequency to another frequency, typically 60Hz, and vice versa. It is mainly used where an installation intended for one frequency must be operated by a supply of another frequency.
The 60Hz to 50Hz converter transforms the input frequency of the electrical power supply, indeed, from 60Hz to 50Hz. In this process, electronic circuitry adjusts the timing of electrical signals to achieve the desired frequency, ensuring that the output power is suitable for all devices that need to operate at 50Hz.
The following are some of the benefits offered by employing a single-phase frequency converter. It allows the operation of single-phase equipment at a different frequency without requiring the entire power system to be changed. They provide some flexibility in power supply and can substantially improve the performance of any electrical device, as the converters ensure that the device receives the correct frequency and voltage.
Yes, a 50Hz converter may be applied to 240V applications. Many 50Hz frequency converters can be used for different voltage levels, including 240V, to ensure that devices operating on such voltage can function properly, regardless of whether they are placed in a country where power is supplied at 50Hz.
Each frequency converter, whether it is a 50Hz or a 60Hz model, differs essentially in the frequency contained in the output power it generates. In simpler terms, a 50Hz frequency converter generates power at 50Hz, whereas a 60Hz frequency converter generates power at 60Hz. This distinction is crucial when it comes to ensuring that your frequencies are compatible with electrical devices designed for twin-frequency operations.
A pure sine wave frequency converter produces an output voltage that closely resembles the smooth, continuous waveform of utility power. This type of converter benefits sensitive electronic equipment by preventing distortion and improving the operation of any equipment that requires a clean power source.
A step-up transformer inside a frequency converter is used to increase the voltage in the output power. This becomes indispensable whenever the output voltage must be forced into some unusual range for some equipment so that the machine gets the proper voltage and frequency.
Yes. Three-phase frequency converters for 50Hz applications certainly exist. The converters take charge of a three-phase power system and therefore are mainly limited to industrial applications, where equipment operates on a three-phase supply. Thus, they correctly adjust the frequency and voltage until the equipment is operating optimally.
The input voltage is crucial to a frequency converter because it determines the converter’s compatibility with the power supply. A frequency converter must be rated for a specific input voltage level to operate safely and efficiently. Any input voltage mismatch can be very detrimental to equipment.
Yes, indeed, a 50Hz frequency converter can be used to connect 120V 60Hz devices if the said converter is made to accept input at the 120V level and output at the appropriate frequency accordingly. It permits devices that typically run on 60Hz power to be put to service on a 50Hz supply, enabling multipurpose use of power.
