Understanding AC Frequency: The Basics of Alternating Current and Utility Frequency

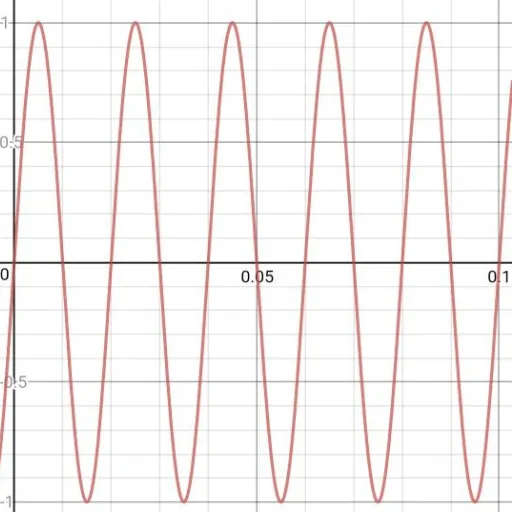

What is AC Frequency?

The AC frequency is the number of cycles that an alternating current (AC) waveform undergoes in one second and is measured in hertz (Hz). It essentially represents the number of times the current changes direction in one second. For instance, the North American standard for AC frequency is 60 Hz; that is, the current undergoes 60 cycles per second. Inversely, nations in Europe mostly use 50 Hz as their standard frequency. This standardized frequency plays a crucial role in the synchronization of power systems, ensuring the continuous operation of electrical devices and the smooth transfer of energy.

Definition of Frequency in Electrical Terms

Frequency goes into every design and operation of an electricity supply system. For the efficiency of devices, grid stability, and energy conservation, electricity plays a significant role. For instance, bigger frequencies could help in reducing the size of transformers and motors, allowing for lightweight and compact designs. On the other hand, the lower frequency is good for long-distance power transmission due to less power loss. It is only because the regional developments of the power infrastructure have fostered the standard of 50 Hz or 60 Hz power system in the world, not really because technically it is better than the other. This mismatch is generally bridged by devices, which convert frequency for compatibility. Recent developments, for instance, in inverter technology, allow variable frequency output for useful purposes, thereby greatly enhancing both supportability and dependability in electrical environments.

Understanding Alternating Current (AC)

An alternating current is one that changes the direction of flow within a circuit regularly, typically represented by sinusoidal waveforms. This alternating behavior of AC facilitates the transmission of electrical energy over long distances with minimal power loss due to the resistance posed by the conductors. The essential characteristics of AC are the frequency measured in hertz (Hz) and the peak and RMS voltage value that provides a measurement of its maximum potential and power delivery capability respectively.

Modern-day AC setups mainly operate on either 50 Hz or 60 Hz frequencies and voltages, depending on the romance and application of the network design. This flexibility in implementation has enabled AC to become the largest focus on the global power distribution system, which encompasses both industrial and residential electricity needs. Moreover, developments in AC-related technologies, such as high-voltage transmission lines and Smart Grid integration, have given another boost to the enhancement of efficiency, reliability, and flexibility of electrical power infrastructures. The exploration for improving transformers, power electronics, and storage engineering fitted to work with AC networks is ongoing by engineers and researchers for even higher effects on resource efficiency.

Importance of AC Frequency in Electrical Systems

AC frequency is considered a critical parameter for variations in electrical systems, as it directly impacts the operation and synchronization of various equipment involved in the generation, distribution, and consumption of power. The standard frequencies, 50 and 60 Hz, are almost universally adopted, albeit with local and historical preferences, but it is highly important to maintain a stable frequency to prevent any disturbances. Frequency deviation from the nominal one, such as a few tenths of a percent, may cause inefficient operation, faulty operation, or even damage to sensitive equipment, i.e., industrial equipment, life-supporting equipment, and equipment used in hospitals.

Frequency stability is another important factor for security in the grid. Modern grids incorporate resources such as renewable energy from wind or solar, which being intermittently variable, impart frequency instabilities into the system. Recent Technologies, such as Frequency Response Services (FRS), inverter-based resources, and Battery Energy Storage Systems (BESS), are tested and placed into use to manage these challenges and maintain the system within operational tolerance. For example, reports demonstrate how frequency response mechanisms can adjust deviations with seconds of onset, lowering the chance of brownouts and blackouts substantially. Therefore, measuring and improving AC frequency is the foundation for ensuring a resilient and efficient electrical infrastructure.

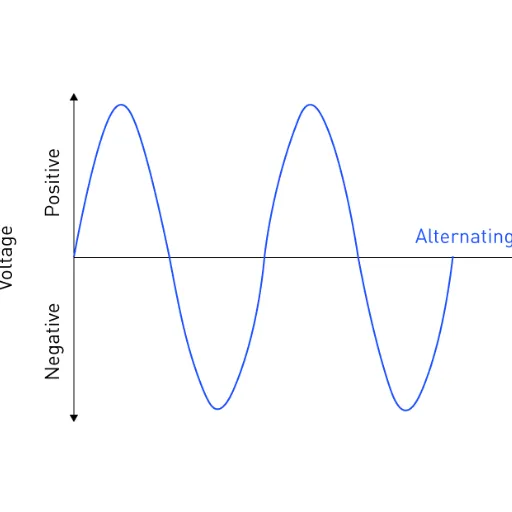

Common AC Frequencies

Practically every region of the world is served by alternating current electricity transmission networks, which operate at either 50 Hz or 60 Hz frequency. The two common frequencies were chosen based on the power requirements in the specific regions. 50 Hz, for example, is the more commonly found frequency in Europe, Asia, Africa, and many other regions. And then 60 Hz is applied in areas North America and some parts of South America. The choice of frequency is intrinsic to the developing stage and grid of electricity supply in these countries respectively. Both work efficiently for the purposes of power transmission, however the type of operating equipment tends to be produced specifically to match the standard within this region.

The Standard 60 Hz Frequency in North America

The origins of 60 Hz in North America stem from early attempts to develop AC power systems by inventors such as Nikola Tesla and George Westinghouse. This frequency was chosen on technical grounds, as it optimized the operation of the motors and reduced flicker in the lighting systems. The modern electrical infrastructure of the U.S., Canada, and a few adjacent countries functions on this standard, which facilitates fixing various grids and devices seamlessly.

One of the primary benefits of the 60 Hz system is the decreased size-to-weight ratio of transformers for an identical output power, which was a substantial factor during the original development of electrical grids. Also, the frequency lends itself to the rotational speeds of induction motors used in industry and commercial sector operations, thus assuring efficiency. On the other hand, this frequency is still the base of power grids in North America, with regulatory bodies and institutional developments enhancing reliability and making it scalable.

50 Hz Frequency: Global Standards and Usage

50-hertz frequency standards are used in many parts of the world, including most of Europe, Asia, Africa, and some parts of South America. This frequency was adopted due to its technical suitability with early electromechanical and generation technologies, and transmission systems recorded energy efficiency due to this choice. These countries, with this system, enjoy the benefit of widespread adoption, helping make the systems and equipment workable from cross-border and international perspectives.

Multiple recent innovations have turned 50 Hz systems even more effective. Primarily, smooth application of transformers and synchronous engines which are core in transmission and distribution network because their losses are kept at the minimum even with such a frequency used. In addition, it is well known that 50 Hz design is mainly applicable to use with electrical appliances and industrial equipment at the international level and therefore can easily be interconnected and expanded during infrastructure expansions internationally. Regulation authorities such as the International Electrotechnical Commission (IEC) do not stop their work on the system and improvement of the 50 Hz grid so as to defend the energy requirements of the world that has increasingly turned into a meshed community.

Other Frequencies: 400 Hz and Specialized Applications

Applications that use 400 Hz primarily focus on a specific scope of activities. Applications that focus on critical aspects such as efficiency, mass reduction, and size containment predominantly involve 400 Hz. It is found that this higher frequency is often used to reduce the size and weight of transformers and electrical elements in aerospace, military, and particularly selected transport means. As such, the application of this technology in aeronautics and marine will be facilitated – the number of transformers, fittings, and electrical devices in use could be quite reduced while the reduced weight clearly makes a direct impact on fuel performance ,becoming more effective within the same given movement.

An insert of the various enterprises in Question will utilize 400 Hz systems to acquire uninterruptible power supply (UPS) systems, as these are known to be stable while transmitting relatively clean power. In addition, the increased frequency enables quicker reaction time of the UPS systems during emergency conditions. Yet, the use of 400 Hz has its limits, and it is primarily considered only if its benefits outweigh its limitations, namely, higher attenuation and signal losses at more extended geographical areas compared to the more widespread and extensively applied 50 Hz and 60 Hz systems. The continually improving ways of converting frequency and power, and modern power electronics, make the use of 400 Hz even more refined than earlier in these specific applications, which ensures performance while satisfying the strict requirements of these sectors.

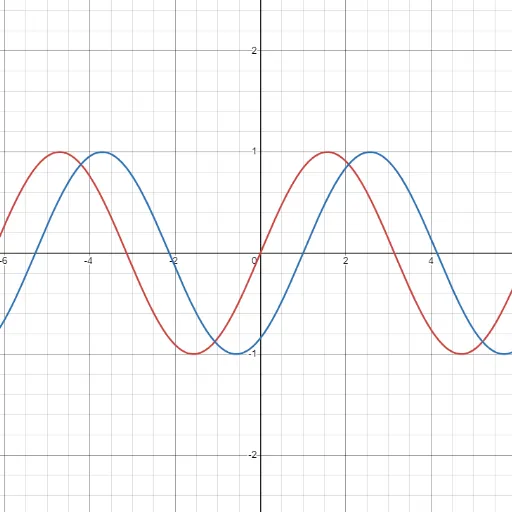

Waveform Characteristics of AC Frequency

Alternating current (AC) is sinusoidal in general frequency usage of its purchase. It is because it utilizes frequency-optimized energy distribution techniques and generates minimum waveform distortion. This type of waveform is essential as far as both voltage and current vary in a way that their variations are smooth, which also helps to further reduce power losses and aid most electrical and electronic systems. Distortions to a sinusoindal waveform apart from the harmonic wave form can impair system operation and efficiency. It is clear that the waveform can alternatively be described by its amplitude, frequency, and phase. These other characteristics all taken as a whole, further enhance the analysis of the waveform relative to the alternating current in a circuit.

Understanding Waveform Shapes

Waveform Shape	Key Points	Parameters
Sine Wave	Smooth periodic oscillation	Amplitude, frequency, phase
Square Wave	Alternates sharply between high and low levels	Duty cycle, frequency
Triangle Wave	Linearly rising and falling pattern	Amplitude, slope, frequency
Sawtooth Wave	Rises gradually, drops sharply	Amplitude, rise time, period
Pulse Wave	Short bursts of voltage or current	Amplitude, width, frequency

Root Mean Square (RMS) Values and Their Significance

The RMS values are essential for any analysis regarding any time-varying signal, especially for an electrical engineer or signal processor. Once the RMS value is obtained, it measures the effective magnitude of a signal, which is often referred to as the effective power of a waveform. It is computed as the square root of the mean of the squares of instantaneous values of a waveform in one complete cycle. It becomes beneficial when considering various types of non-sinusoidal waves, such as square, triangle, or sawtooth, because it normalizes their varying amplitudes for fair comparison.

In practical use cases, RMS values are crucially important, and that is to say, they are the most significant value in considering the heating effect when the AC is applied to the resistive loads, because it is a value of the alternating current that is inversely proportional to the equivalent DC current that would bring about the same results. For a sinusoidal waveform, the RMS value is the peak voltage divided by √2 or roughly 0.707 times the peak level. However, for nonlinear waveforms, the calculation differs according to the signal’s profile as well as the different factors involved. Engineers rely on RMS metrics to enhance the performance of the entire system’s voltage and current levels, thereby protecting electronic devices and increasing overall process efficiency in power consumer system designs.

Effects of Waveform Distortion on AC Power Supply

Waveform distortion in an AC power supply is chiefly due to the presence of harmonics of the fundamental frequency. These distortions create an adverse effect on the power quality of the system that manifests in several ways; to mention a few, increased resistive losses for both conductors and transformers due to harmonic currents cause overheating and reduce the easily-supplied efficiency of the system. Besides, these harmonics stand to cause misbehavior in sensitive electronic gadgets, thus inducing communication line interruptions, leading to sudden equipment failures.

Qualitatively, Total Harmonic Distortion (THD) is the most widely used metric to assess waveform distortion. A distortion level of less than 5% is generally acceptable for most power systems with IEEE standards prescribed; however, higher distortion intensifies voltage instability, leading to eventual damage in equipment. The repair cost of such equipment also grows with time. Yet, the effects may be ameliorated with active harmonic filters, proper system design, and load balancing, so that power supplies and voltage remain stable and efficient under heavy loads on the demand side.

Utility Frequency and Its Impact on AC Power Supply

Utility frequency, generally expressed in hertz (Hz), is the rate at which alternating current (AC) changes its direction in a second. Standard utility frequencies are usually 50 or 60 Hz, depending on the region. This frequency, in a way, constitutes the heartbeat of AC power systems since its fluctuation alters how transformers, motors, and other electrical devices basically work-for an intended frequency. Operating outside the standard frequency creates inefficiencies, overheating, and, worse, engine failure! Maintaining a steady utility frequency is essential in guaranteeing uninterrupted power supply and smooth operation of electrical networks. Grid tendencies, such as frequency regulation by power plants and grid balance automatic control, take precious care of this requirement.

How Utility Frequency Affects Electrical Appliances

The utility frequency ultimately determines the performance of electrical appliances, especially those that have frequency-sensitive parts: motors, transformers, and clocks. If the nominal frequency, which is generally 50 Hz or 60 Hz depending on the location, deviates sufficiently, the operation will be severely interrupted. For example, AC motors used worldwide in both home and industrial applications are designed to operate at a specific frequency. Any deviation from this frequency, whether upward or downward, results in a change in the motor’s rotational speed, which can cause mechanical stress, loss of efficiency, or overheating.

Transformers, being the essential elements to stay in voltage regulation in a power system, are also highly dependent on constant frequency levels. Velocities about core losses and being inefficient may heat-up their windings, thereby shortening service life. Appliance clocks or timers relying on electrical grid frequency for timekeeping, such as oven or microwave displays, may run too fast or too slow during frequency fluctuations.

Comparing Supply Frequencies in Different Regions

Region	Standard Frequency	Voltage Level	Notable Characteristics
North America	60 Hz	120/240 V	Higher frequency aids motor efficiency.
Europe	50 Hz	230 V	Lower frequency requires heavier transformer cores.
Japan	50 Hz (East), 60 Hz (West)	100 V	Dual frequency complicates device compatibility.
Australia	50 Hz	230 V	Similar system to Europe, high voltage standards.
India	50 Hz	230 V	Designed for cost-effective power transmission.
South Korea	60 Hz	220 V	Reflects North American and European influences.
China	50 Hz	220 V	Integrated frequency aligns with global standards.
Brazil	60 Hz	127/220 V	Dual voltage system for residential areas.

Implications of Frequency Variations on Power Quality

Changes in values of frequency greatly effect the behavior of electrical systems in terms of both power quality and performance. Deflections from the standard frequency of either 50 or 60 Hz, as defined in a given area, can lead to damage in equipment, reduced performance, and wasted energy. Such devices as motors can produce a heating effect and can malfunction at frequencies other than the designed frequency, resulting in a very short lifetime.

At the same time, for the purpose of controlling the grid modernization process, particularly when different parts of the grid interact with each other, it is essential to observe how the grid frequency fluctuates. The existence of any continuous oscillations not only returns added value to the system but may as well on its own encourage the growth of higher order distortions that stretch along cables and in the end results to loss of power quality, i.e., adoption of higher levels of voltage and even degrading some sensitive electronic devices.

Frequency control techniques such as automatic generation control (AGC) and energy storage devices are emphasized more so in the current period to restore system imbalances. It is also anticipated that the progress made in smart grids and real-time setup equipment has maximally facilitated the identification and subsequent management of frequency-related issues, thereby ensuring effective and dependable power system service delivery in various regions worldwide.

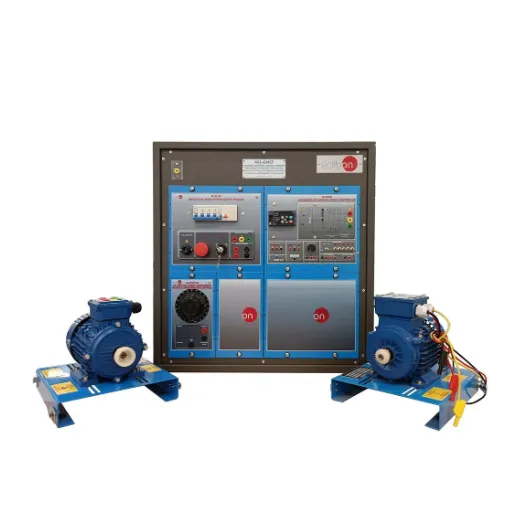

Applications of Different AC Frequencies

Different AC frequencies are utilized based on the requirements of specific applications and regions:

• 50 Hz Systems: 50 Hz power is also very common in those regions because this frequency bridges both continents and is therefore more of an easily shared frequency for continents such as Europe, Asia, and Africa, and that cannot be changed, due to network development reasons, economic reasons, and consumer equipment standards.
• 60 Hz Systems: It is common to use 60 Hz electrical supply systems in most of North America, some parts of South America, and other regions. It provides the best operating performance in certain types of electric motors.
• High-Frequency AC: The high-frequency and very high-frequency AC electric power transmission is used in some specialized applications, such as in aircraft and related systems, where 400 Hz is commonly used due to the so-called lightness of equipment. Likewise, some medical and telecommunications systems function on high-frequency AC power because it offers effective and targeted use of energy.

The decision to facilitate production according to a specific repetition rate depends on which side of the market is concerned, as well as the nature of the end product’s properties and the technical parameters of the specific equipment.

Industrial Applications of 60 Hz and 50 Hz Power

The division between 60 Hz and 50 Hz grids across different global territories has resulted in the development of diverse industrial practices and implementations. Majority of the factories in North America and certain parts of South America use 60 Hz current as it facilitates the use of high-power machines for specific industries, such as heavy equipment, air conditioning systems and industrial electric motors. This frequency is slightly higher than the standard of 50 Hz in most of the rest of the world because it is more effective for certain types of equipment without reactance, especially inductive loads, where the performance is better, and losses are lower.

Conversely, in Europe and other parts of Asia, Africa, 50 Hz systems are most common and are indeed, much sophisticated, as they are used to support manufacturing and power plants as well as railway lines. 50 Hz is the best-suited for applications that seek to integrate the synchronization of large network-based systems because the integration of long networks with this frequency has been done for many years. In other sectors, such as processing, refining, and the making of garments, precise 50 Hz apparatus functionality plays a significant role in reinforcing the system compatibility and operational safety, even in international value chains.

The utilization of varied power frequencies necessitates the use of two transformers, either step-up or step-down, and frequency changers, thereby making modernization more intricate, particularly for internationally extended economic structures such as industries. However, due to ongoing changes in this sector, industry has grown up to accommodate these differences particularly with the advent of such inovations as solid-state, high frequency power systems. This new approach will encompass new geopolitics, including industry adjustments and regional strengthening.

Use of 400 Hz in Aviation and Military

What else explains the domestic adoption of 400 Hz power? Military and aviation characteristics can even be predominant there. The power required by the various systems of all aircraft categories, from autonomous to class A, includes those of companies such as Camp Equip One Military Earth Inc. The management of complex systems often involves the application of 400 Hz power technology, which takes into consideration the limitations of aircraft operational speed. Introducing 400 Hz as the standard for AC power systems, instead of the traditional 50 or 60 Hz, significantly reduces the length and size of related components and is also essential, as such a consideration is particularly relevant to aircraft AC systems.

400 Hz frequency is commonly used during military operations to power various electronics, radar and communication systems. This electronic power system necessitates a seamless mechanism for providing high-quality power under minimal weight, allowing it to fit into various moving platforms, such as ventilators on naval vessels, vehicles on roads, and even aircraft. To counteract such safety risks, ground power units (GPUs) operating at 400 Hz are installed within the airfields and repair facilities to keep the systems running while awaiting service.

The aviation industry has started using semiconductor-based electronic devices to enhance the performance of 400 Hertz (Hz) systems. The benefits of such technologies include increased stability of these power networks, less heat dissipation, operations management as well as a clean and reliable electricity source. Particularly, it is essential for the safety of heavy-duty equipment and highly sophisticated systems used in aviation and military applications, as these systems must stably supply power. This further development of 400 Hz continues to illustrate the significance of this technology in meeting the power load standards of today’s establishments.
