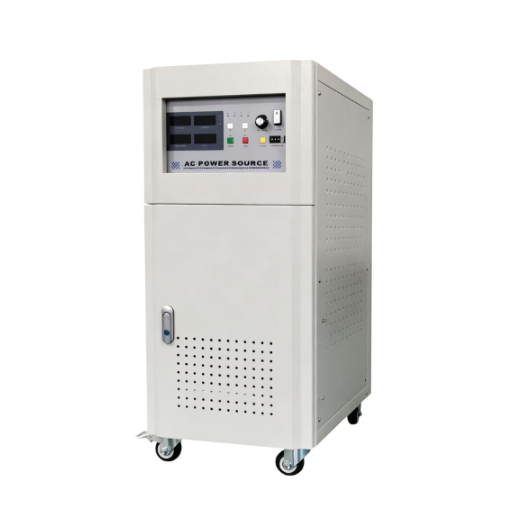

What is a Frequency Converter?
A frequency converter is an electrical device that is built to convert the frequency of an AC wave to accommodate particular equipment or systems. The main goal of any frequency changing device is to ensure that energy can be transformed from one voltage to another (e.g., 50Hz in Europe) to 60Hz in other places. Machines, or in general, machines can fully operate under the right design even when the power supplied is not the one that is recommended by the manufacturer by reinforcing the power conversion through changing the normal input frequency.
Basic Principles of Frequency Conversion
Frequency transformation is based on the adjustment of the frequency of the alternating power current in order to function appropriately in the equipment or systems. This process characteristically occurs in two phases. Firstly eliminates the AC and changes it to DC with the aid of a rectifier. The DC is then converted back to AC of the desired frequency using an inverter. Modern frequency converters use electronics with solid-state devices such as Insulated Gate Bipolar Transistors, IGBT for short. This ensures increased accuracy efficiency and high reliability during the frequency conversion process.
In addition, modern inverters are equipped with powerful processors ensuring high precision power conversion. By applying pulse-width modulation (PWM) in all of its control processes, regardless of how complex or otherwise demanding, the use of conventional control frequencies adversely affects efficiency and complicates the active power supplied to the load elimination of harmonics. Some of the reasons, among many others like these, are why there is increasing acceptance of the application of frequency inverters, saving power in industrial processes and in many projects constructed to reduce losses and enhance quality thereof such as renewable energy.
Types of Frequency Converters
| Type | Description | Key Features | Applications |
|---|---|---|---|
| Static Frequency Converter | Uses solid-state components for frequency conversion. | High efficiency, low maintenance | Aviation, power distribution |
| Rotary Frequency Converter | Utilizes motor-generator systems for conversion. | Durable, handles high power loads | Industrial equipment, marine systems |
| Digital Frequency Converter | Provides precise digital control of output frequencies. | Advanced programming, real-time adjustments | Telecommunications, sensitive devices |
| Variable Frequency Drive (VFD) | Controls motor speed by varying frequency. | Energy savings, operational flexibility | HVAC systems, manufacturing processes |
| Cycloconverter | Converts AC to AC with different frequency directly. | Compact, suitable for low-speed applications | Large motors, cement mills |
The Importance of 50Hz to 60Hz Conversion
The 50Hz and 60Hz conversion is a very important aspect as it allows electrical appliances to function properly despite the standard frequency differences in the grid systems of different countries. A number of countries comprise grids that operate on either 50Hz or 60Hz, leading to cases where devices intended for a particular frequency do not operate in another. As a result, improper functioning can be experienced, or in the worst case, the equipment can be destroyed due to overworking.
Hence, Such problems need to be fixed immediately, and if the only possibility to run equipment of different frequency is to use frequency converters, then often in industries that work with international equipment, like production, telecommunications, transporting and so on. This is further enhanced by the matching of the output frequencies as a result of frequency converters which ensures that no strain is exerted on the equipment while also ensuring there is more power saving.
Impact on Electrical Equipment
The effect of deviations in frequency on electrical devices is versatile, it’s all about the equipment and the way they function. Engines that are engineered to run on a given frequency, i.e., 50 Hz or 60 Hz, are capable of reaching maximum speed, exposure-free mode of operation unless the external devices violate the original engine design. For instance, an induction motor will not develop torque or will draw additional power as a result of idle operation, but is running on the power supply frequency that is unrealistic, hence frequencies do not match.
There are problems with transformers and they include things like core saturation and then the excessive overheating and performance issues appear, so the process is practically impossible. Precise timing-based appliances like clocks, or types of control algorithms will note that the operating speed of radios and televisions is different from the region that those systems were designed for, and their performance may shut off. In addition, any pressure could be such that equipment in operation may suffer wear at a much higher rate than what is tolerable with consent frequencies, which necessitates alphanumeric conversion systems in such systems.
Applications in Various Industries
1. Manufacturing
Another important use of frequency converters is the regulation of motor speeds in the case of conveyors, robotics and production lines. This allows motors to be applied more precisely to the necessary amount of operation, minimizing energy use and improving product quality. For instance, it has been shown that facilities that are exposed to the use of frequency converters can reduce energy requirements and enable savings of up to 30% on their energy bills.
2. HVAC Systems
In the area of heating, ventilation, and air conditioning, frequency converters play an essential role. They adjust rotation speed of pumps and fans to fit appropriate airflow levels as well as desired temperatures. This not only provides normal working conditions in public and residential buildings but also decreases overhead liabilities to a considerable extent. Studies have demonstrated that the application of frequency converters in modern heating, ventilation and air conditioning systems can lead to energy reduction of between 20-50%.
3. Oil and Gas
In the oil and gas industry, where drill rigs, compressors, and pumping units are the main processing equipment, the ability to change the speed of a drive with frequency converters is of high importance. These promote efficient use of resources and also diminish the effect of wear on the equipment hence increasing its life span. The increased adaptability of frequency control systems has been seen as being responsible for between 15% and 25% reduction in operating costs in the oil and gas field.
4. Water and Wastewater Treatment
It prevents sluffing of pumps by making them run full throttle to tie it back from unlagged to untied. This improved extent of operation is in lightweight but is effective in reducing energy consumption and enhancing compliance with environmental regulations. Different areas have been able to reduce power consumption by just under 35% through the application of frequency converters and rapid deceleration when there is a need to stop the motor at power drop speed.
5. Renewable Energy
The renewable energy segment benefits from frequency converters in wind turbines or hydroelectric systems where they are used to stabilize the power outputs which are essentially dependent on frequencies. Its functionality enhances the grid’s capability of handling the quantity and velocity of the noises, thus optimizing production.
6. Mining and Extraction
Since wherever you look in mining applications, they usually include equipment whose performance in both wear and tear and energy consumption is optimized by frequency converters, the installation of such devices leads to engineering a solution that is highly reliable during service and that significantly saves electricity most of the time by 20-40% gains.
Benefits of Frequency Conversion
1. Energy Efficiency
The development and use of frequency conversions have enhanced the functioning of motors exploiting the advantages of several energy saving properties when compared with fixed-speed systems. Comparably, when the load pattern is adjusted, there is a possibility of reducing the power consumption by up to approximately 50% instead of the typical 20%. For instance, making a 20% decrease in the motor speed can bring efficiency increases up to 50% since speed and energy efficiency have a relationship of the order of three orders of magnitude.
2. Extended Equipment Lifespan
A frequency converter is the effective solution for the problem of additional wear which comes mainly as a result of frequent engagement and disengagement of such machines. Depending on the condition of equipment components, one may expect to extend the life of machines by about 25-30%, entailing reduced touch periods and lowered maintenance costs.
3. Improved Process Control
In advanced manufacturing applications such as pumps, lasers, and other material processing or fabrication industries, particularly conversion of one type of energy to another type, frequency converters are used primarily to allow efficient and effective control of desired performance parameters such as speed, torque, and flow rates.
4. Reduced Mechanical Stress
Features such as soft start and soft stop in particular reduce the impact experienced by equipments including the motor, gear, belts and any other accessory. This effect is not only important in boosting the longevity of the machinery but also comes in handy in the prevention of sudden malfunctions hence averting operation halts.
5. Noise Reduction
Frequent adjustments of motor speed tend to limit the noise in industrial settings rather than a condition where noise levels begin to increase further. Excessive vibrations and noise are emitted by systems that are running at high speeds, which are not without attraction but can place the workers’ life and health at risk.
6. Flexibility Across Applications
The prevailing attribute of frequency converters, is their ease of application. This quality arises from its capacity to accept any load size or type, timed according to the process requirements. The fine-tuning of the engine extends to most applications such as HVAC systems, belts of conveyors, wind mills among others, which covers the operation unit such that specific industry needs can be fulfilled standard-wise.
Technical Aspects of Frequency Converters
A power converter is a device that changes input power with a frequency of the converter into an output power with a variable frequency and voltage. Power converters fundamentally consist of three major components:
1. Rectifier
Changing AC power to DC charge. It is an indispensable intermediate step needed in order to generate a stable current for external modulation processes.
2. DC Link
It allows the converted DC power to be maintained, and it smoothens the DC power to levels that allow it to provide a constant power supply to the inverter.
3. Inverter
This unit transforms the stabilized DC power into electrical AC power with the required frequency and voltage values in order to make adjusting the speed of an electric machine rather easy to implement.
Meanwhile, by the use of these parts, power converters improve system efficiency by reducing power consumption and hence improve levels of process control and equipment utilization efficiency.
How Does a Solid-State Frequency Converter Work?
A solid-state frequency converter performs by manipulating the electrical power efficiently and accurately via advanced semiconductor devices. Such materials are the most advanced ones. Most processes start with the rectifier stage, where the incoming AC power is changed into DC power using high-power diodes or a thyristor. This conversion is important as it means that the power is ready for further use and hence there is no risk of power surges occurring.
The next level on the other hand, includes DC-link which serves as an underlying energy storage and conditioning system. The DC link works as a stabilizer, thanks to the utilization of capacitors and inductors which help in the absorption of voltage ripples. Such stabilization helps maintain a certain level of performance even with the DC and less power in wasted.
Finally, the inverter module reconverts the sorted DC power into useful AC power with a varying frequency and voltage inasmuch as it depends on user demand. As for the inverter, it produces the desired waveform with the use of insulated-gate bipolar transistors (IGBTs) or similar advanced switches in accordance with the electric motor’s characteristics. Adjusting frequency is necessary for motor speed and torque optimization, thus increasing the efficiency of use and extending the life of existing equipment.
Modern dynamic converters are enhanced as they use intelligent software and also they can dynamically work flexible loads owing to modern control algorithms. In this regard specialists can rely on these technical devices since they prove to be effective; they help to save on mechanical elements, improve energy consumption and enable expanded measurement rates.
Understanding Phase Converters
These devices referred to as phase converters are the ones that are used to change the single phase to three-phase electrical power making it easy to operate three-phase machinery in an area that only accommodates single-phase machinery. Their application is necessary in establishments ranging from industries to boutiques, and may even have homes where there are appliances that require more than a single phase, such as motors, compressors, and pumps, among others, which are running on a 3-phase power supply.
In three particular types of phase converters, more advanced types exist. These include modern day rotary, static and digital phase convertors. The first one of such is a rotary phase convertor that makes it possible to extend in balanced supplies in three different phases using an intermediate motor as a motor used. It is recommended for operations with high power and varying loads. A static phase generator is a temporary device used to help start three phase motors by providing the required phase shift. But the whole operation does not circulate any form of overload or tension in the load.
Modern phase converters offer added benefits such as voltage regulation to the highest level, minimization of harmonic distortions, and provision of interface overload mechanisms which assist the efficient and most reliable working of the equipment. Ultimately, they’re only as effective as their design and, therefore, the engineers and technicians installing phase converters need to establish suitable load levels, power quality, and characteristics of the machines to which they would like to provide with power.
Common Use Cases of 50Hz Frequency Converters
- Industrial Machinery:
Allows machines designed for a what 50-Hz power circuits to work with a 60-Hz power systems and vice versa. It is particularly useful in the onset of international manufacturing that uses equipment from overseas since most of such machinery is not sold with a power supply. - HVAC Systems:
In fancy systems such as heating, ventilation, and air conditioning, the training motor systems produce an alternating current from the main power source in an uninterrupted alternating current power system. - Testing Facilities:
Another valuable application of these devices includes helping testing facilities in the research and development section to avoid non-linear power sources which often come with irritating result during the simulations and tests. - Marine and Aviation Sectors:
Switching from ship to shore power regularly requires the use of alternating current frequency converters in-line with aircraft voltage converters, which worsen the percentage system-transition stability provided by such equipment.
Home Appliances and 220V Power Supply
The majority of homes and businesses across the globe make use of a 220V power supply standard. This enhances efficiency and safety of homes by providing energy used in most household equipments. Moreover, most of the household electrical devices like freezers, washing machines, air coolers are designed to operate at a 220V range and not lower than. This rise in power supply level means that more energy can be transmitted through lower currents, and in return, the losses resulting from resistance are decreased, hence increasing efficiency.
Additionally, these days, most of the present – generation electric machines are susceptible to using both 110V and 220V so as to eradicate any operational problems across different areas. It was also pointed out that utilization of a 220V regime minimises operations which are contrary to the advancement of energy efficiency mechanisms, as modern technologies such as inverter-driven appliances consume less energy and bear a longer life expectancy.
Industrial Applications of 3 Phase Static Frequency Converters
Three-phase static frequency converters play a critical role in industrial settings, where exact and secure power supply is necessary. These types of equipment are usually found in a production area where there is need to power the machinery that has specific frequency range, for example, CNC machines, conveyors, induction motors, etc. In other words, it improves machine reliability as critical equipment is protected from all possible risks which is why converters convert the input frequency into the desired frequency.
Moreover, besides dynamic frequency converters, strain frequency converters play a crucial role in the aerospace industry and defense, where they are used to produce various power conditions for equipment and systems testing. One of the components that has many applications in these fields is two terminal devices. Some of the other areas application of them are is in power distribution systems. In addition they industry there are other applications like induction heating, arc welding and rectifying equipment. Contact systems include direct connected motors, air circuit breakers, and contactors. In this section, construction aspects of these devices, including the design of components like contactors, are considered.
Recent data suggests that there has been progress in the energy management, downtime and productivity sectors in sectors that are using the static frequency converters. These make sure that changing energy standards are met and are changing industrial practices towards more sustainable and smarter practices.
Advanced Applications and Innovations
The role of static frequency converters in modern challenges in aerospace, renewable energy and transportation industries is expanding. It is static converters that stable the frequency of the aircraft onboard power system and contribute to the proper functioning of crucial aircraft onboard systems. Static frequency converters are also employed in renewable energy generation to address the issue of floating energy – particularly wind and solar energy.
In transportation equipment such as trains, trams, locomotives, light rail vehicles and electric cars, static frequency converters have been developed to manage electric power usage in the systems and to maximize the energy recovery systems to reduce consumption. These attempts are to push industries to achieve advanced standards in improving efficiency, sustainability, and safety of various infrastructures.
KVA Frequency Converters in Modern Technology
KVA frequency converter technology is shaping all other sectors drastically because of the advanced developments that have taken place recently. For a long time, one of the areas that has drawn great emphasis is the increased use of sophisticated materials, such as carbon, silicon carbide (SiC), and gallium nitride (GaN), which are distinct in analyzing that the penetration of these materials will lead to higher switching rates as well as reduced power losses. These newer materials have also made it easier to compress operational costs and package (size) of the system.
New frequency converters now come with control systems, which can be controlled even more with upcoming AI and IoT implementations. These controls enable real-time troubleshooting, preventive maintenance, and efficient capacity control even under Martian load changes. Furthermore, development and deployment of intelligent storage devices as an option to improve on the active load control, and as a result smart grid has become very effective especially in incorporating renewable energy sources.
The continued progress in various fields such as manufacturing, aerospace, and healthcare among others has propelled the advancement of these technologies. Plainly, due to the modern KVA frequency converters’ capabilities, their precision is a necessity in high-speed machines and medical image machines, which fall within strict accuracy thresholds for successful operation. It is clear that such engineering advances highlight the development of KVA frequency converters, their necessity and role particularly in regards to the effective and eco-friendly practices of today’s industries.
Future Trends in Frequency Conversion Technology
Frequency conversion sector of industry is considered very promising for the implementation of technologies based on machine learning. With the help of techniques like artificial intelligence (AI) and machine learning (ML), predicting the breakdown frequency become easy for the frequency control device. Active condition monitoring can be implemented in the power electronics devices to self optimize their operation and promptly identify deviations from normal. In addition, th development of alternative power sources leads to the achievements of comparatively higher efficiency of the converters. The latter is governed by trends in the global energy efficiency and energy saving requirements.
Moreover, the evolution of systems into a wide bandgap (WBG) semiconductor materials base for instance materials like silicon carbide (SiC) and gallium nitride (GaN), enables high frequency of switching, improves thermal performance and also the size of the system. This kind of innovation is especially useful for sectors that require high levels of energy efficiency like renewable energy system or electric vehicles.
Moreover, it is anticipated that the implications of the development in the field of communication will be vital. A good example of such an improvement is the inclusion of the Internet of Things (IoT) in the current frequency converter designs. This leads to easy connectivity to digital platforms and many more functions. Such as on the RAM intensively used for the purpose of monitoring, operations and techniques, etc. Similarly, it aims at achieving upgradability to better industry-specific applications such as medical, automotive as well as others and enabling a dynamic market penetration of low frequency solutions.
