Frequency converters or frequency changers, as the technically correct nomenclature, form an indispensable class of mechanisms in this highly developed (industrial) setting at present. Such devices can be used for power generation at specific frequencies to match the stipulated frequencies required by equipment and systems used in the modern world. With the operation of everything, from industrial machines to systems that generate renewable energy, the frequency converter corresponds to the energy efficiency and performance of the effective operational time period of a device. This article will elaborate on the cornerstone frequency changers that modern technology relies on, describing their functions, applications, and advantages across various industries. Whether in the field or simply a curious individual interested in the technology behind modern achievements, this comprehensive guide will shed light on the role of frequency converters in the present world.

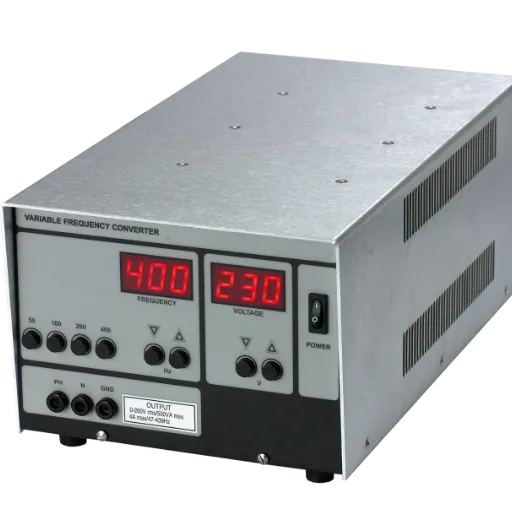

Understanding of the Frequency Converter
A frequency converter is a system that changes the frequency of the electrical power supplied to a circuit, thereby meeting specific operational requirements. It first converts the incoming electrical current to direct current and then changes the direct current into alternating current at the required frequency. This enables the adjustment of motor speed and performance, which have various applications in manufacturing, HVAC systems, renewable energy, and other industries. They work towards cutting unnecessary energy usage while ensuring the technology works efficiently, making them perfectly integral to modern technological development.
Definition and Functionality
Frequency converters perform their function through an elegant process of power conversion and modulation. Initially, the incoming AC power is rectified to DC by using a rectifier circuit. This DC power is then directed toward the inverter stage, where insulated-gate bipolar transistors (IGBTs) or other parametric semiconductor technologies convert it back to AC at a settable frequency and voltage. In recent years, power electronics and digital signal processing have significantly improved the efficiency, reliability, and performance of these devices. For example, current frequency converters use advanced algorithms for constant real-time monitoring and optimum energy use. These features help to lessen harmonic distortions and extend the operational life of the appliances. Applications ranging from industrial automation to energy management systems require such facilities, where precise control and energy efficiency are the primary requirements.
Types of Frequency Converters
| Type | Key Features | Applications | Advantages |
|---|---|---|---|
| Voltage Source Converter | Uses DC capacitors for energy storage | Industrial drives, grid connections | High efficiency, compact design |
| Current Source Converter | Requires large inductors for energy storage | Heavy industry, high-power motors | Stable operation, supports high currents |
| Cycloconverter | Directly converts input frequency to lower output frequency | Rolling mills, marine propulsion | Supports low-frequency applications |
| Matrix Converter | Does not use intermediate DC link | Compact AC-to-AC conversion | Smaller size, reduced component count |
| Load Commutated Converter | Relies on load-side characteristics for commutation | High-power synchronous motors | Robustness at high power levels |
| Dual-Active Bridge | Bidirectional power flow with high efficiency | Energy storage systems, renewables | Enhanced control, energy flexibility |
| PWM Frequency Converter | Employs pulse-width modulation for precise control | HVAC systems, robotics, conveyor belts | High precision, low harmonic distortion |
| Resonant Frequency Converter | Uses resonant circuits for high-quality conversion | Wireless charging, induction heating | High energy transfer efficiency |
| Direct Torque Control Converter | Provides fast and direct torque control | Variable-speed motor drives | Superior dynamic response |
Solid-State Frequency Converters Explained
The solid-state frequency converter is advanced equipment designed for changing the frequency of electrical power for applications requiring precise control and efficiency. They are carriers of semiconductor technology, using methods such as pulse-width modulation (PWM) or resonant circuit design to ensure highly reliable performance. One invariably encounters their applications in systems where adjustments must be made to the alternating current (AC) frequency and voltage to accommodate varying load needs.
Having undertaken modernization, the solid-state frequency converter has made substantial strides in efficiency and operating characteristics. Silicon carbide (SiC) and gallium nitride (GaN)-based semiconductors, for instance, offer opportunities for high power density and low heat dissipation, while also supporting further energy-saving measures. Apart from performance optimization and operational safety of the converters, monitoring systems and intelligent control algorithms have been integrated into them; hence, they perform efficiently in harsh conditions, like those encountered by renewable energy systems and aerospace technologies. Subsequently, in the wake of solid-state frequency converters, developers are transitioning towards greener and more efficient power solutions.
Frequency Specifications
Frequency specifications for solid-state frequency converters encompass a wide range, accommodating various application requirements. The frequency input is typically 50 or 60 Hz, conforming to the dominant frequency of the power grid in most parts of the world. However, the output frequencies are highly customizable, and the range typically spans from 20 Hz to 400 Hz, depending on the field of application, ranging from heavy industry to aviation, or occasionally to testing equipment. Such adaptability allows for specifications to the utmost degree for versatile systems, while preserving standards concerning efficiency and operational suitability for use.
Understanding 50Hz vs. 60Hz
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Frequency Standard | Common in Europe, Asia, Africa | Common in North/South America, Japan |
| Voltage Compatibility | Often used with 220-240V systems | Often used with 110-120V systems |
| Power Transmission Efficiency | Slightly lower than 60 Hz | Slightly higher than 50 Hz |
| Equipment Compatibility | Designed for 50 Hz frequencies | Designed for 60 Hz frequencies |
| Motor Speed Influence | Slower operational speeds | Faster operational speeds |
| Transformer and Losses | Larger transformer for same power | Smaller transformer for same power |
| Electrical Noise Reduction | Generally less prone to noise | More prone in specific conditions |
| Power System Costs | Can be cheaper, depends on setup | Slightly higher costs, depends on setup |
| Common Applications | Industrial, household systems | Industrial, household systems |
| Regional Adoption | Widespread in 50 Hz standard areas | Widespread in 60 Hz standard areas |
The Importance of 400Hz in Specific Applications
The implementation of 400Hz systems should be considered wherever size and weight optimization are the dominant criteria. This frequency is, therefore, predominantly used in the aerospace, aviation, and military industries for reducing the size and weight of electrical components, such as transformers and generators. At higher frequencies, components carry the same power with fewer magnetic and inductive core materials, thereby becoming significantly smaller and lighter. The consideration of weight is especially critical for aircraft and spacecraft, as it can adversely impact efficiency, performance, and fuel consumption.
Besides these, 400Hz systems are also preferred for radar systems, advanced communication technology, and portable military equipment, where compact designs and operational reliability become critical. However, such systems require specialized infrastructure and are rarely seen outside these niche applications. Yet, their implementation is justified due to the performance gains achieved in delicately controlled environments or in critical operations, where the consequences of failure must be minimized. This makes 400Hz a specialized but prized option in modern engineering and technological solutions.
Single Phase vs. Three Phase Frequency Converters
| Key Point | Single Phase Frequency Converters | Three Phase Frequency Converters |
|---|---|---|
| Power Input | One-phase power supply | Three-phase power supply |
| Typical Applications | Low-power devices, residential use | High-power industrial and commercial use |
| Voltage Stability | Moderate voltage fluctuations | Greater voltage stability |
| Phase Efficiency | Lower efficiency | Higher efficiency |
| Equipment Size | Compact and lightweight | Larger and bulkier |
| Installation Complexity | Easier installation | Requires more complex setup |
| Load Handling Capability | Limited handling of high-load equipment | Suitable for heavy-load machinery |
| Cost | Relatively lower cost | Generally more expensive |
| Maintenance Requirements | Simple maintenance | Requires specialized maintenance |
| Power Output | Limited to single-phase output | Can handle three-phase output |
| Noise Levels | Quieter during operation | Could be noisier depending on load |
| Usability in Industrial Settings | Not ideal for heavy industry | Preferred for industrial environments |

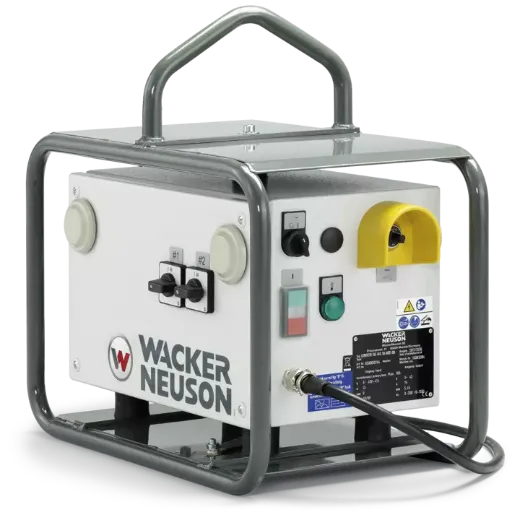

Working Principles of Frequency Changers
Frequency changers–the common moniker for frequency converters–are devices that change the frequency of an input AC power source to suit the needs of the output. Usually, the entire procedure is divided into two stages:
- Rectification: The AC power first undergoes conversion to DC (direct current) by means of a rectifier. Rectification helps to do away with the alternating component of the incoming electricity, thereby creating a steady DC voltage.
- Inversion: The DC power is then converted back to AC at the chosen frequency through the inverter. By manipulating the control signals passed to the inverter, the output frequency and voltage can be flexibly adjusted.
These couple of stages ensure that frequency changers can modify power supply parameters to suit applications where it is necessary to reconcile power source parameters with equipment specifications. They are widely used in industries such as manufacturing, aviation, and renewable energy systems.
How Frequency Changers Operate
Frequency changers utilize high-tech electronics and system control algorithms to smoothly convert alternating current (AC) power from one frequency to another. An input rectifier stage converts the input AC voltage to a DC voltage initially. This rectification stage remains crucial, as it enables the subsequent manipulation of power frequencies without disruptions and inconsistencies.
From the inverter, the DC signal passes into a circuit governed by PWM strategies to control it. These allow for excellent control of the output frequency and waveform by modulating pulses at precise intervals, resulting in virtually no harmonic distortion and excellent energy efficiency. Contemporary frequency changers feature sensors and feedback loops that continuously monitor voltage, current, and frequency levels at the output, thereby ensuring their operation meets the requirements of the dynamic load. This is particularly useful in industrial installations where operational stability and reliability of performance are top priorities.
With advancements in semiconductor technology, the latest frequency changers utilize IGBTs and advanced microprocessors. This enables manufacturers to produce timely modifications to output parameters for a variety of applications, ranging from variable-speed motors to precision machines used in aerospace and scientific research.
AC Power and Voltage Conversion
AC power and voltage conversions provide a fundamental backbone for modern electrical systems, facilitating the transfer and distribution of energy to its various applications. Voltage conversion is primarily achieved through transformers, which, via electromagnetic induction, either raise or lower voltage levels. This ensures that power, typically generated at high voltage for transmission over long distances, can be stepped down to low voltage for residential, commercial, or industrial use.
Furthermore, solid-state electronics have revolutionized the methods of AC voltage conversion. High-frequency converters operate at generally higher frequencies than the classic 50 Hz or 60 Hz, leveraging the advantages of silicon carbide (SiC) and gallium nitride (GaN)-based technologies to achieve efficiency, thermal budget, and size improvements. Such systems really make a difference in renewable energy, mainly wind- and solar-based systems, where inverters are expected to convert the DC power generated into grid-compatible AC power, with utmost efficiency, and along with the intelligent monitoring system integration for on-demand precision control of stability, minimum energy loss, and optimization of power delivery for diverse load requirements.
Pure Sine Wave Output in Frequency Converters
The pure sine wave output is considered an ideal waveform for alternating current (AC) power, thus closely resembling natural waveforms generated by conventional utility grids. Frequency converters with pure sine wave outputs are essential for sensitive electronics, such as medical systems, telecommunication systems, and industrial systems, where a precise and stable power supply is crucial.
Some advantages of pure sine waveform output include high energy efficiency, low harmonic distortion, and energy-saving designs that reduce the heating of connected equipment. These converters apply a steady voltage and current, which significantly reduces interference and can be used with devices on the market. Along with the independence of silicon carbide (SiC) and gallium nitride (GaN) for the development of frequency converters, their rechargeable properties enable increased power density and cooler operation under high loads. Consequently, pure sine wave systems become vital where performance, safety, and efficiency are mandatory considerations.

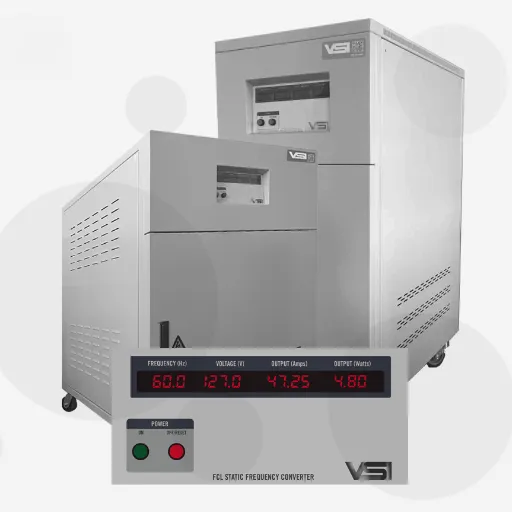

Common Applications of Frequency Converters
- Industrial Automation: These converters have wide applications in controlling the speeds and torques of electric motors during manufacturing processes, thereby improving process efficiency and product quality.
- HVAC Systems: These regulate the operation of pumps, fans, and compressors, optimizing them for energy consumption in heating, ventilation, and air-conditioning systems.
- Renewable Energy: Frequency converters ensure compatibility between renewable sources of energy, such as wind and solar, and the grid.
- Marine and Aerospace: Frequency converters provide steady power and fine control for ships and airplane systems where reliability is of utmost importance.
- Medical Equipment: Frequency converters ensure the operational stability of highly sensitive medical devices such as MRI and surgical equipment.
Manufacturing and Automation
Frequency converters have ensured precise motor speed and torque conversion, thereby improving the efficiency and productivity of machinery used in assembly lines, robotics, and material handling systems. Energy-wise, advanced frequency converters enable adapting motor operations to the requirements of specific tasks, thereby significantly reducing operating costs. Additionally, frequency converters are integrated with automated control systems, allowing easy monitoring and diagnosis, which in turn provides high reliability for the system and saves valuable time. Considering these attributes, frequency converters are utilized to ensure that manufacturing workflows remain high-performance and energy-efficient across various industries.
Energy Sector Implementations
Frequency converters play a crucial role in the energy sector, enabling the maximization of efficiency and security in various application areas. One fine example is within wind turbines, where frequency converters control the rotational speed of the turbine blades, ensuring the maximum energy generation output is achieved given the prevailing winds at any particular moment, thereby maximizing power generation. Additionally, it mildly wears down the mechanical components, thereby lengthening the equipment’s lifespan.
Similarly, in the oil and gas industry, frequency converters regulate the speed of pumps and compressors, adapting motor performance to the process-consuming and production conditions. This then reduces energy consumption in extensive processes, operational costs, and environmental impact. Additionally, when integrated with smart grid technologies, modern frequency converters enable dynamic load management and voltage stabilization, thereby facilitating the integration of renewable energy by adapting supply to demand patterns.
This, in essence, answers the dynamic call of the world to transition to sustainable energy systems, and this perfect implementation of the frequency converter symbolizes how innovative and efficient operations within some of the critical energy sector domains can be.
Telecommunications and Electronics
The telecommunications and electronics fields underwent rapid changes due to growing demands for new technologies with properties of being faster, more reliable, and energy-efficient. Among the many applications for frequency converters in telecommunications infrastructure, signal stabilization, power adjustments, and frequency alterations occupy the most critical positions. With modern digital signal processor (DSP) implementations and significantly higher power output efficiencies, a very advanced converter can be integrated without loss of energy in the system to achieve the desired effect.
Moreover, in any high-speed data transmission system, the accuracy of frequency control is vital, and any cause of signal deformation must be avoided to achieve maximum data integrity during transmission. These technologies have also impacted the processes in electronics manufacturing, especially in applications such as circuit testing, where the frequency of modulation must be precise to test device response times under different conditions. Such innovations underscore the pivotal role that frequency converters play in telecommunications and industry electronics, enabling scalability and reliability in an increasingly digital world.

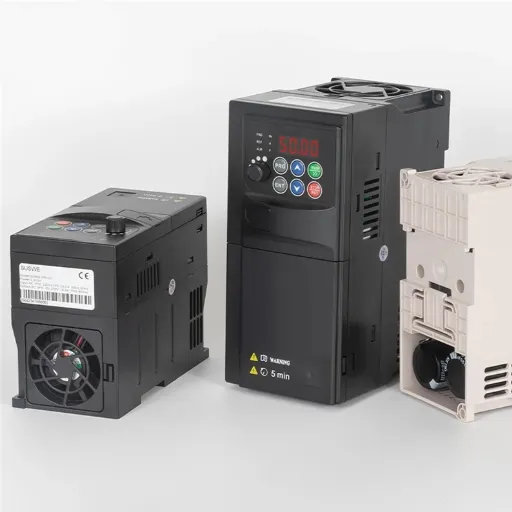

Benefits of Using Frequency Converters
- Energy Efficiency: Energy is optimized when the frequency converters adjust the frequency and voltage to the motors, thereby reducing energy wastage and lowering the electricity cost incurred.
- Enhanced Equipment Lifespan: Accelerations and decelerations resulting from the usage of frequency converters are controlled, thus limiting mechanical shock to the motors and other instruments being used.
- Improved Process Control: These devices enable changes in speed and torque, allowing processes to be maintained at a constant rate either in time or in speed, even in complex industrial processes.
- Versatility Across Applications: Using frequency converters enables many systems to adjust their electrical outputs to meet operational needs, with examples ranging from heating and ventilation to industrial applications.
- Reduced Maintenance Costs: Frequency converters reduce mechanical failures and those related to motors, which ultimately result in less frequent maintenance requirements.
Efficiency and Energy Savings
Frequency converters are crucial for optimizing energy use and enhancing operational efficiency in various industries. By regulating the speed and torque of electric motors, they reduce energy consumption when less power is necessary and eliminate unnecessary power dissipation. It is believed that the use of variable frequency drives, particularly in ventilation, pumping, and heating systems, can save energy by 30% to 50%. This increased efficiency has further cost-saving implications on a long-term scale and reduces carbon emissions, hence addressing global sustainability plans. Some advanced versions utilize real-time measurement protocols and decision-adaptive controls to balance power use in a manner that allows the process to run at the minimum level of energy consumption. This makes frequency converters key players in both industrial and commercial energy management schemes.
Improving Equipment Longevity
Frequency converters directly address inefficient working conditions by mitigating stress factors on industrial and commercial products, thereby increasing their lifespan. Traditional fixed-speed systems expose the machinery to sudden starts and stops, causing mechanical deterioration. Using frequency converters, equipment undergoes soft start-up and soft stopping operations, which significantly reduce stress and wear on motors, belts, bearings, and other mechanical components. They also provide control of speed and torque within the recommended technical parameters, thus limiting the possibilities for overheating and process overloading.
According to research, the industry shows that frequency converters can increase equipment lifespan by up to 30%, depending on the use scenarios. Reduced mechanical stress increases durability, which in turn decreases maintenance requirements and downtime, leading to enhanced reliability. To achieve operational efficiency and extend asset lifetime, frequency converters offer a solution for implementing both in any organization.
Flexibility in Power Source Adaptation
The ability to adapt to different power sources is one of the most significant benefits offered by frequency converters, enabling smooth integration across various power systems. These devices are designed to accommodate different voltage and frequency standards, such as those found between lands with 50 Hz and 60 Hz power systems. The primary objective is to enable equipment to produce high-quality output without incurring additional expenses for alterations or supplementary hardware. For instance, state-of-the-art frequency converters are often used in manufacturing, marine, and aerospace environments, with machinery deployed globally that requires such adaptability. By broadening the compatibility horizon to encompass a wider range of electrical terrains, frequency converters further reduce engineering complications that could otherwise halt operations, thereby increasing scalability and application globally.
Reference Sources
1. Design of a 0.5–18 GHz Wideband Frequency Down-Converter Module
- URL: Read the full paper
- Summary: This study presents the design and fabrication of a wideband frequency down-converter module for electronic support systems. The module features high gain, low spurious signals, and high reliability.
2. Simulation of Frequency Converters Operation in Industrial Power Nets
- URL: Read the full paper
- Summary: This paper analyzes the impact of frequency converters on industrial power networks, focusing on voltage harmonics and power quality. It highlights how transformer inductance can act as a natural line choke, reducing the need for additional components.
Frequently Asked Questions (FAQs)
Q: What is a frequency converter and how does it work?
A: Frequency converters are devices that convert the frequency of an output electrical power supply from one frequency to another. Usually, such configurations convert from 50 Hz to 60 Hz, thus allowing equipments made for one frequency to operate at the other frequency. Therefore, frequency converters enable the use of AC motors and other electrical apparatuses across different regions. Frequency converters may be solid-state devices or utilize other conversion methods, such as motor-generator sets. In shore power and ground power applications, they ensure that the electrical energy supplied is compatible with the local standards.
Q: How does a solid-state frequency converter differ from traditional options?
A: An efficient method of changing the frequency is maximized by semiconductor devices like IGBTs, utilized in the solid-state frequency converter. Due to their reliability and low maintenance, these are ideal for applications that require variable speed control or a consistent pure sine wave output. Through solid-state converters, a smaller and lighter converter can be created for use with single-phase or three-phase power, unlike older types of technology. These are very much employed in pumping and fan applications, as well as industrial automation systems.
Q: What are the benefits of using a three-phase frequency converter?
A: A three-phase frequency converter maintains many advantages over single-phase ones, in particular from the perspective of efficiency and power distribution. Three-phase frequency converters are capable of handling higher loads and are best suited for industrial environments where large AC motors are used. This technology can change the AC power from one frequency to another while maintaining the same constant output voltage. Another advantage includes balancing the power delivered, thereby reducing the stress on other electrical components and improving the overall operation of the equipment, such as induction motors.
Q: Can a frequency converter supply 220V 50Hz to 120V 60Hz?
A: Yes. A frequency converter can change the 220V 50Hz AC power to 120V 60Hz. This process is beneficial when using equipment imported from a location with a power setup that differs from the local area’s. This converter converts both the voltage and the frequency to a level compatible with the desired power source. A frequency converter is essential for any scenario where electrical devices need to be operated at different voltages and frequencies for optimal performance and safety.
Q: What applications commonly require frequency conversion?
A: Frequency conversion finds extensive applications in industrial machines, HVAC, and renewable energy systems. Pumps, fans, and compressors are just a few examples of equipment worldwide that can benefit from frequency conversion to optimize speed control and improve energy efficiency. Frequency converters are also required to convert electrical power from shore power for marine applications or to convert electrical signals in motor generator sets. Thanks to the superb versatility offered by frequency converters, applications can be commercial and residential, ensuring compatibility for various AC power supply needs.
