Phase converters are indispensable for allowing a three-phase motor to run on a single-phase system, where static phase converters are one of the simplest and most cost-effective alternatives. But how do they work, and what properties make them desirable for some applications? An overview of mechanical properties and working principles for static phase converters, along with a comparison to other types of phase converters, will give you a very detailed idea of what they really do. Hopefully, this guide will provide some helpful information for any technician or engineer who needs to understand the realm of power conversion; indeed, even those who are curious about industrial power systems will benefit!

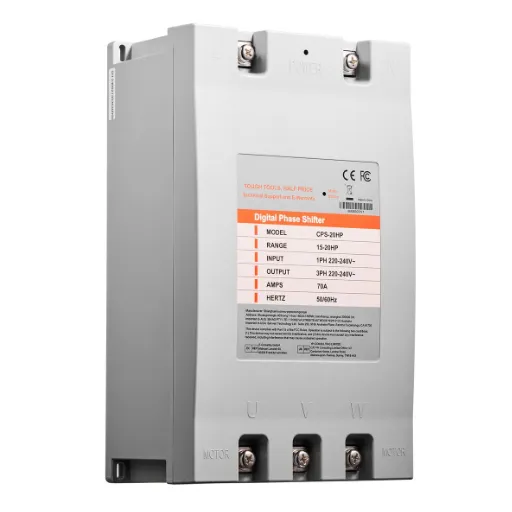

Introduction to Phase Converter
They are called phase converters because they convert a single-phase electric power source into a three-phase source, allowing a machine to operate on a single-phase electric supply. These converters are used in industrial and agricultural settings where three-phase machines are commonly employed, but utility three-phase power is either unavailable or too expensive to install. There are basically three types of phase converters:
- Static Phase Converters – These facilitate motor start-up by utilizing a capacitor to provide a short burst of three-phase power, after which the motor operates on single-phase power. They are used in light-duty applications and may not deliver full motor performance.
- Rotary Phase Converters – These utilize a motor-generator to provide three-phase power continuously and are thus employed for heavier loads and broader applications.
- Digital Phase Converters – These comprise electronically controlled systems designed to generate three-phase power with the efficiency and stability required in heavy-duty settings.
Each category of phase converters has its own strengths and weaknesses, with the net effect making the decision highly dependent on load requirements, efficiency, and budget.
What is a Phase Converter?
A phase converter is an electrical device that transforms single-phase power into three-phase power, while maintaining operating instruments that require a three-phase electrical system in environments where only single-phase power is available. Such devices are necessary to operate three-phase machinery such as motors, compressors, and pumps without requiring costly upgrades to the existing electrical infrastructure in industrial, commercial, and agricultural applications. Phase converters work by simulating a proper three-phase system, with characteristics of balanced voltage output and phase angle relationships, to ensure the proper functioning and longevity of the attached equipment. They are instrumental in remote or rural areas where three-phase power may not be readily accessible.
Importance of Phase Converters in Industry
Phase converters serve a wide range of industrial activities in regions where a readily available three-phase power supply is not available. The manufacturing, agricultural, and woodworking industries are among those that utilize machinery requiring three-phase systems for efficient operation. For instance, in agriculture, phase converters enable the use of power-hungry irrigation pumps and grain dryers, ensuring productivity and circumventing the need for costly upgrades provided by the utility.
Moreover, phase converters enable considerable cost minimization by allowing businesses to operate on single-phase electrical infrastructure while providing access to three-phase machinery. Today’s rotary and static phase converters effectively balance voltage precisely, hence limiting the potential for premature equipment wear or outright failure. While recent technology indicates great superiority in efficiency and control provided by digital phase converters, these are becoming favored in highly dynamic and critical-phase applications such as CNC machining and automated systems. Phase converters facilitate the widespread adoption of high-performance equipment and are, therefore, a crucial factor in industrial expansion, efficiency, and innovation.

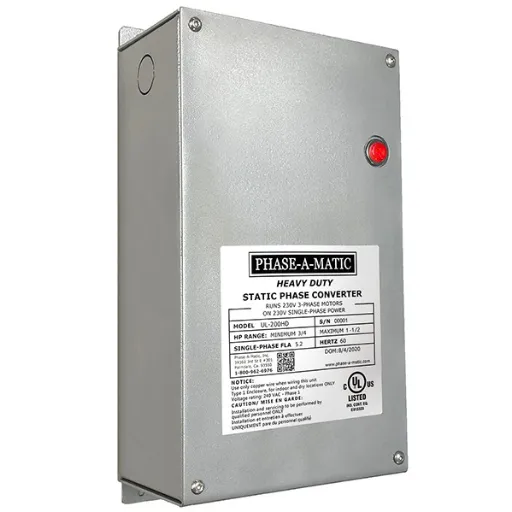

How Static Phase Converters Work?
The static phase converters work by creating a temporary third-phase input to give a boost of three-phase power to start up the three-phase motor, with the motor then running on a reduced single-phase input. They create a third phase for a short time by means of capacitors that produce a phase shift during startup. Then, after the motor reaches operational speed, the converter releases its grip, allowing the motor to operate solely on the single-phase input. Consequently, static phase converters offer a low-cost solution for motors that do not require high starting torque or a stable three-phase power supply during operation. They are usually not recommended for heavy-duty or continuous-load applications due to their limitations in providing balanced power.
Mechanics of Static Phase Converters
Static phase converters start by briefly supplying a third phase during the motor’s startup through capacitors or other means, located in components arrayed to shift phases. These phase-shifted voltages and currents generate the rotating magnetic field required to drive the machine to its normal operating speed under load. Once the motor reaches steady-state operation, the converter stops supplying the third phase, allowing the motor to run on single-phase power.
The static phase converter capacitors are selected to minimize energy losses and achieve carefully defined phase angles during motor startup. Particular consideration is usually given to the application of the converter, with designs tailored to suit motors of specific horsepower and voltage ratings. The principal weakness of static phase converters is that they cannot maintain balanced power on all three windings of the motor.
This means, for example, that if the converters can function perfectly on light loads, such as fans, pumps, or woodworking machines, they face severe difficulties handling high-efficiency industrial motors. These require a three-phase input to operate continuously. Thus, the proper sizing and application of the said equipment are likely to guarantee performance promises while also averting common problems associated with overheating or power inefficiency.
Key Components of Static Phase Converters
| Component | Description |
|---|---|
| Capacitors | Store and release electrical energy for phase conversion. |
| Start Relay | Controls the activation of start capacitors during motor startup. |
| Bleeder Resistor | Discharges stored energy in capacitors after use. |
| Control Panel | Houses switches, relays, and wiring for operations. |
| Power Input Terminals | Connect the single-phase input power to the converter. |
| Output Terminals | Transmit three-phase power to connected machinery. |
| Enclosure | Protective casing to ensure safety and durability. |
| Fuse or Breaker | Protects against overcurrent or short circuits. |
Operational Process of a Static Phase Converter
1. Single-Phase Input Power Connection
The static phase converter receives single-phase input power through the power input terminals. This power is usually fed through utility connections at either 120V or 240V, depending on the locality and equipment requirement.
2. Capacitor Charging and Discharging
With the input power plugged in, the capacitors charge to their designed capacity, and upon startup, discharge their stored energy to supply the third leg of power in conjunction with the existing single-phase supply, achieving a balanced three-phase output for the machinery being served.
3. Rotating Magnetic Field Creation
A rotating magnetic field is generated by the system, which is essential for providing the starting and running torque for three-phase motors. This is done with the help of capacitor connections to impose the appropriate voltage and current phase shift.
4. Transient Phase Conversion
During the startup cycle, the static phase converter immediately delivers a sufficient level of three-phase power to the load. This brief period ensures that the motor can build up the inertia required to begin rotation.
5. Continuous Single-Phase Power Supply
After the initial startup cycle, the static phase converter no longer operates actively, allowing the connected motor to continue running with significantly reduced assistance on single-phase input power. Additionally, if any voltage stabilizers are used, they can help sustain optimal running performance.
6. Component Protection and Monitoring
Overcurrent, electrical fault protection, and other safety features, such as fuses or circuit breakers, may be supplied for the system. Additionally, the enclosure ensures that everything inside remains safe from damage or environmental interference during operation.

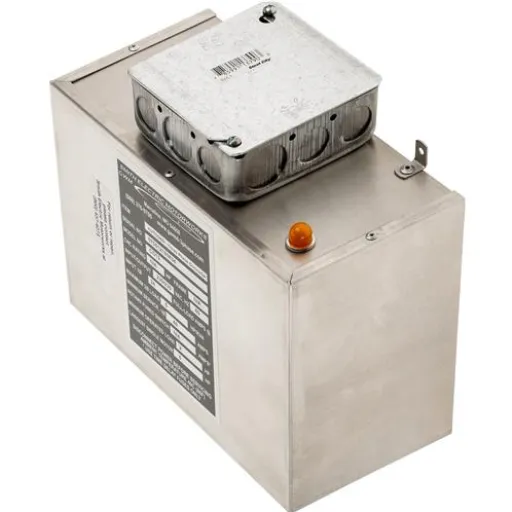

Comparing Static vs Rotary Phase Converters
Two standard methods of converting single-phase power into three-phase power are static and rotary phase converters; however, their differences extend far beyond performance and application.
Efficiency
Static phase converters are less efficient, providing three-phase power only during the motor’s start-up. Conversely, rotary converters provide consistent three-phase power throughout their operation, ensuring smooth performance for heavy-duty applications.
Applications
In other words, static converters may be sufficient for light-duty machines or other equipment that does not require full three-phase power after start-up. In contrast, rotary converters are best suited for heavy industrial applications where stable and continuous three-phase power is essential.
Cost and Maintenance
Static converters may be less expensive at the purchase price, but may not be as efficient in providing power over the longer term once in use. Rotary converters tend to have a longer lifespan and greater reliability, with fewer interruptions during operation, but require periodic maintenance to maintain optimal performance.
Power Quality
Rotary converters provide superior power quality, allowing for balanced voltage on all three phases, thereby preventing overheating or damage to equipment. In contrast, static converters supply power with unbalanced voltage, which reduces the life of connected equipment.
It highly depends on the requirements of the particular application, which include the type of equipment, nature of operation, budget limitations, etc. Most industrial and heavy-duty applications are best served by rotary phase converters, which are more rugged and dependable.
Differences Between Static and Rotary Phase Converters
| Parameter | Static Phase Converter | Rotary Phase Converter |
|---|---|---|
| Power Output | Limited to 2/3 of the motor’s rated capacity | Delivers full power to connected loads |
| Start-up Capability | Suitable for light to moderate loads | Handles heavy start-up loads easily |
| Voltage Balance | Often unbalanced | Provides balanced voltage output |
| Efficiency | Less efficient due to unbalanced phases | More efficient for sustained operations |
| Durability | Shorter lifespan under heavy usage | Longer lifespan for industrial purposes |
| Maintenance Requirement | Requires minimal maintenance | Requires periodic maintenance |
| Noise Level | Operates quietly | Produces noticeable operational noise |
| Initial Cost | Lower upfront cost | Higher upfront cost |
| Application Suitability | Ideal for small-scale, light-duty tasks | Designed for industrial-scale machinery |
| Ease of Installation | Easier to install, compact design | May require more space and expertise |
Application Suitability for Each Type
Without careful review of specific operational requirements, the suitability of equipment types to differing applications cannot be assessed. Less resource-intensive and compact setups excel in small-scale applications, such as laboratory experimentation, craft production, or light-duty applications, due to their easy-to-use interfaces and minimal resource consumption. On the other hand, in an industrial environment of massive scale, systems with design attributes and features of a robust nature, having high endurance, are claimed to be of paramount importance. Such setups exist to meet the rigorous operational demands of heavy-duty machines, including production line machinery, material handling, and manufacturing processes. Recent developments in enhancing performance and energy efficiency have further helped industrial-grade systems become increasingly compatible with sustainability goals without compromising high operational capacity. Hence, these are the systems explicitly chosen by any organization that requires steady output and scalability.
Size Considerations and Installation Requirements
When selecting an industrial-grade system, size considerations play a crucial role in ensuring that the layout of operations and infrastructure are well-suited to each other. The physical size of the equipment must be in conformance with the spatial constraints of the facility, while offering adequate space for maintenance access and, if possible, for any future expansion. The layout planning must be very efficient to preclude undue congestion that could hamper smooth workflow or, worse, lead to equipment damage or worker injury. In the same vein, installation requirements tend to be quite stringent, with reinforcement requirements for foundations and a mounting system that will probably fall under various local regulatory standards. For example, heavy-duty machinery must be laid down with precision so that vibration acts to extend operational life while assisting ease of operation. Integration with power supply, ventilation, and cooling systems is another issue that must be addressed rigorously to ensure that the servicing systems can adequately handle the energy consumption and thermal output demands of the system. Moving through each of these detailed aspects would provide a more efficient system and even better compliance with the presently stipulated safety and operational standards of the enterprise.

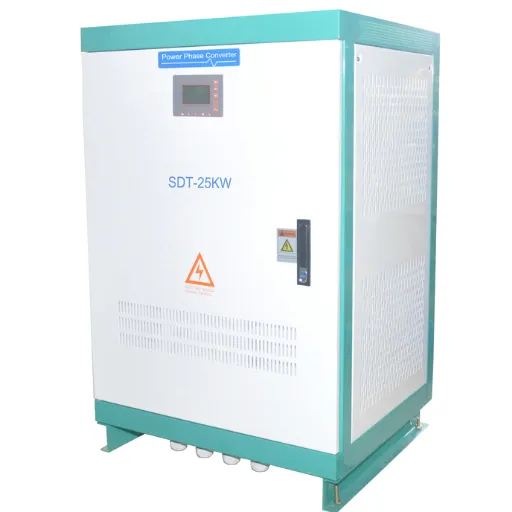

Types of Phase Converters
Rotary Phase Converters
Rotary phase converters utilize an idler motor to convert a single-phase electrical supply into a three-phase power output that meets its name. This converter type is highly suitable for scenarios requiring a strong and continuous power supply, more commonly found in industrial-grade machinery or equipment used under heavy loads. One of their most significant advantages lies in their capacity to handle enormous startup surges, which is vital in running motors that are really high in terms of horsepower. Further improvements and developments in rotary phase converter technology over the years have led to enhanced devices for power factor correction, ensuring no energy wastage and low operating costs for the converter. Furthermore, improvements in noise reduction and thermal management have indeed created a more practical rotary converter that is capable of delivering a consistent output even in challenging environments.
Static Phase Converters
Static phase converters provide a simpler means of operating three-phase equipment from a single-phase power source. Unlike rotary converters, static converters temporarily supply three-phase power during the motor’s start-up phase by using capacitors and relay systems to generate the third phase. Once the motor has attained its operating speed, the static converter disengages, leaving the motor to run on single-phase power. Static phase converters, being cost-effective and easy to install, are best for applications where the motor doesn’t need to provide full torque during operation. For example, these converters are often applied in light-load equipment and aren’t suitable for motors in heavy-load or fluctuating-demand scenarios, resulting in reduced performance and efficiency. However, with advances in capacitor technology, the reliability of static phase converters has been somewhat improved; however, the limitations in comparison to rotary and digital converters still hold significance for demanding industrial applications.
Digital Phase Converters
The digital phase converter is used for high-tech, high-speed, and high-efficiency conversion from single-phase to three-phase power. The system utilizes an advanced microprocessor that enables precise control over monitoring the power output. Unlike the static converter, which produces some semblance of three-phase power, digital converters actually produce true three-phase power with all three phases having balanced voltage and current. Thus, it is almost always very suitable for an application requiring high-performance and capable industrial equipment.
This is because one great advantage of digital phase converters lies in their ability to withstand varying load conditions without sacrificing performance, as they adjust their voltage and frequency in real-time to provide maximum efficiency and reliability in the face of fluctuating demands. In addition to power factor correction, digital converters also provide lower harmonic distortion and lower energy loss compared to their older counterparts.
Additionally, the recent development of automatic diagnostic and remote monitoring capabilities in digital phase converters enables operators to check system status and optimize performance easily. They have become an industry standard where reliable and robust power delivery is paramount, particularly in manufacturing, automation, and HVAC companies. Coupled with affordability and flexibility, they remain the next generation in power management.
Applications of Static Phase Converters
Static phase converters are used in applications that require three-phase power, but only single-phase power is readily available. It works best for running equipment that doesn’t require much torque to get started, including fans, pumps, drills, saws, and other motor-driven machines with low demand. Such converters are primarily used in small workshops, agricultural enterprises, and household applications where affordable and easy options for powering three-phase equipment are desired. Although static phase converters offer somewhat simple accessibility to these applications, they are generally not suitable for heavier-duty applications or those requiring consistent full-load power.
Common Industries Utilizing Static Phase Converters
With the ease of use and low cost of powering three-phase equipment, static phase converters find their application across various industries. A prominent industry is agriculture, where these converters are often used for grain augers, irrigation pumps, and other such machinery in rural locations where only single-phase electricity is available. Similarly, the woodworking industry utilizes static phase converters to drive tools such as table saws, planers, and lathes, allowing small shops to achieve more without the significant expense of upgrading to a full three-phase power supply.
Static phase converters are also widely used in metalworking. They are used to power milling machines, grinders, and small-capacity metal lathes in smaller facilities or home workshops. The HVAC industry also utilizes this converter technology to operate compressors, fans, and refrigeration equipment in areas where three-phase power may be difficult to access. These applications provide a glimpse into how static phase converters can keep various industries running, particularly when cost and simplicity are a concern.
Specific Equipment and Machinery Compatibility
Static phase converters have many uses with equipment that may not require variable speed operation but requires reliable three-phase power. A few examples are drill presses, belt-drive lathes, milling machines, and grinders. These machines tend to operate at constant speeds and are thus well-suited to the limited output of static phase converters. Woodworking equipment, including table saws and planers, also benefits from this converter installation owing to their relatively moderate power demands and consistent operating characteristics.
The compatibility of static phase converters largely depends on the motor’s horsepower rating and the type of load. Generally, they suit motors up to about 7.5 HP; however, there are models of this type that would support a higher rating. When utilizing these converters, attention should be paid to starting load characteristics, as starting loads with excessive torque requirements may require an alternative system to be catered for. According to research data on manufacturers, these converters are best suited for single-motor applications to maximize their effectiveness and conserve costs.
Reference Sources
-
Design and Implementation of a Low-Cost and Low-Power Converter
- Key Findings: This research introduces a cost-effective static converter designed for single-phase machines. It focuses on improving energy efficiency and reducing operational costs, making it suitable for small-scale applications.
-
A Simple and Efficient Control Strategy for Four-Switch Three-Phase Converters
- Key Findings: This paper presents a high-performance control strategy for four-switch three-phase converters, enhancing their efficiency and reliability. The strategy simplifies the control process while maintaining robust performance.
Frequently Asked Questions (FAQs)
Q: What are the differences between static and rotary phase converters?
A: Static vs rotary phase converter type discussions typically refer to their operating differences. Cheaper and simpler in nature, a static phase converter is the most economical for smaller motors or light-duty applications. On the other hand, a rotary phase converter can generate a balanced three-phase output through an active rotating motor, making it suitable for heavy equipment that requires constant power, such as large electric motors. In this respect, they can carry much higher horsepower loads and can provide higher torque at start than their static-type counterparts. Therefore, the choice between static and rotary phase converters ultimately depends on the equipment’s function and power requirements.
Q: How do digital phase converters compare to static phase converters?
A: Digital phase converters incorporate newer technology to enforce higher efficiency of power conversion and serve as great alternatives to static phase converters. Unlike a static converter, which typically relies on a simple start circuit, a digital converter actively controls the load and provides a stable output for three-phase machines. This means that they are capable of varying power demands and are appropriate for situations where motor performance is paramount. Furthermore, the digital rotary phase converter should provide exact voltage regulation with minimal harmonic distortion, thereby extending the life expectancy of the equipment connected. A step forward for users who need multiple machines or equipment requiring consistent three-phase power would thus be a digital phase converter.
Q: What types of phase converters are suitable for heavy-duty applications?
A: Jetting out as a chosen option for heavy-duty applications, rotary phase converters are considered very reliable. Therefore, they were engineered to serve large horsepower motors and to perform a stable three-phase output necessary for arduous tasks. These converters can operate multiple machines simultaneously without compromising quality, let alone being suitable for industrial use. Static converters, in comparison, would generally be considered of limited capacity to support heavier loads and be put to much lighter task applications. A thorough evaluation of the motor’s horsepower and the equipment’s power requirements will determine which phase converter best suits the situation.
Q: Can a static phase converter start a three-phase motor?
A: A static converter starting a motor is one of its limited capacities. That is, it starts the motor by producing a temporary phase shift that is required to bring the motor into motion. However, once the motors run, the static converter disengages, failing to provide three-phase power to the motor for heavy-duty action. That means a person can operate a three-phase motor on single-phase power with the aid of a static converter; however, the output would not be suitable for heavy-duty applications that require consistent three-phase power over a prolonged period. Thus, the user would need to note their application requirements to determine if this type of static phase converter will work for them.
