Large DC Motors: High-Performance Brushed DC Motor Applications and Controllers

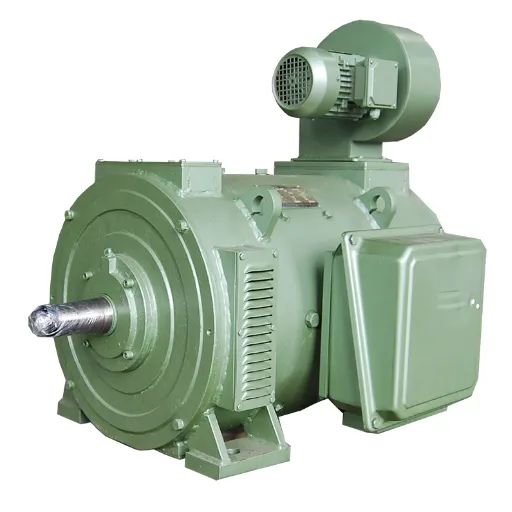

Introduction to DC Motors

DC motors, short for direct current motors, are devices that convert direct current (DC) electrical energy into mechanical power. DC motors operate by utilizing the forces of magnetic fields and currents, making them multi-purpose and energy-efficient equipment types. There are various advantages that come with the use of direct current motors, including stable and smooth output, high static torque, and a wide range of operational efficiency. These characteristics enhance their usability in applications such as industrial equipment, robotics, and transportation machines. They come in two major designs: the brushed construction and the no-brush design, and each is useful for a specific purpose.

What is a DC Motor?

The basic structure of a direct current motor comprises a series of mechanical and electrical entities whose respective functions blend together in the conversion process of Electrical to Mechanical. Key components include the rotor, stator, commutator, brushes (in the case of a commutated motor), and the power supply. The stator serves the exterior of the motor, and its main task is to produce a uniform magnetic field at all times. As for the rotor, it has an arrangement of windings that will spin whenever a current is passed through them (their magnetic forces at work). After energising the electric circuit – usually through the rotor -3-phase motors’ magnetic fields always repel each other, like moving the North and North poles of two magnets. The commutator channels the current through each winding in a way that produces torque, allowing for controlled and efficient rotation. The synchronous reluctance motor, as it is usually called, has been widely adopted by the motor industry.

Types of DC Motors

Type of DC Motor	Key Features	Applications	Advantages	Disadvantages
Brushed DC Motor	Uses brushes and a commutator	Toys, electronics, small devices	Cost-effective, simple design	Requires frequent maintenance
Brushless DC Motor	Uses electronic communication	Drones, electric vehicles, and fans	High efficiency, low maintenance	Higher initial cost
Permanent Magnet DC Motor	Contains permanent magnets in the stator	Automotive, robotics, HVAC systems	Compact, efficient for low-power use	Limited power output
Series DC Motor	High starting torque	Cranes, elevators, locomotives	Strong torque at low speeds	Less speed regulation
Shunt DC Motor	Separate the field and armature circuit	Industrial applications, conveyors	Good speed regulation	Limited torque at startup
Compound DC Motor	Combines series and shunt features	Rolling mills, presses, heavy loads	Balance of torque and speed control	Complex design

Brushed vs. Brushless DC Motors

Parameter	Brushed DC Motors	Brushless DC Motors
Maintenance	Requires frequent maintenance	Low maintenance
Efficiency	Lower efficiency due to friction	High efficiency with less energy loss
Durability	Shorter lifespan due to brush wear	Longer lifespan without brushes
Noise	Produces more noise	Operates quietly
Cost	Generally lower cost	Higher initial cost
Speed Control	Simple speed control	More complex control systems
Heat Generation	Higher heat due to friction	Lower heat generation
Application	Suitable for basic applications	Preferred for advanced, precision needs
Performance at High Speed	Limited performance at high speeds	Excellent performance at high speeds
Size and Weight	Larger and heavier	Compact and lightweight

Applications of Large DC Motors

Many industries rely on high-torque motors to achieve precise control of such motors. More so, the applications for DC motors are also widely used in such industries requiring high torque as well as efficient control of motion, such as:

• Industrial Machinery: In rolling mills, paper mills and crushers etc, as a result of their ability to afford a given maximum of torque under a load.
• Electric Transportation: This kind of motor will be useful in trolleybuses and electric trains to contribute to bans for soft start and fading.
• Cranes and Elevators: One has to be confident in the machinery the operator is making use of for positioning or erecting heavy components.
• Steel and Mining Industries: Ideal for operating conveyors and hoists in environments demanding robust performance.
• Test Equipment: Often used for load simulation in motor testing setups due to their reliable speed control.

These circumstances show the suitability and effectiveness of large Direct Current motors in extreme working conditions.

Industrial Applications

Cranes and Elevators

It could be noted that the installation of the large DC motors is particularly advantageous for cranes, lifts, and the like because of high starting torques and controllable operating speeds. They make the lifting and the lowering operations go off without a hitch.

Steel and Mining Industries

Steel and mining industries use highly durable motor systems since the conditions are very isolated and extremely harsh. It is the DC motors that are used to keep these harsh motors operative, aiding in control over the machinery, including conveyors, hoists, and drills.

Test Equipment

DC motors in various configurations are utilized in test equipment setups, particularly in load or motor-driven isolation testing.

Public Transportation

Normally, large DC brushed and brushless motors can be found in locomotives or trolley cars and railroad or subway systems. And as the electric trains move both fast and slow, and start and stop suddenly, high starting torques and motor acceleration patterns are required; therefore, the use of DC is mandatory in the motors.

Pulp and Paper Industry

In the production of pulp and paper, the design and function of an electric motor are closely linked and of the utmost importance. Such primarily involve revitalizing drives for faster awakening, slowing down, and making sure that there are no jerks in the motion, such as ‘driveline shock’.

Robotics and Automation

Notwithstanding, direct current motors enable applications where shorter response times, higher accuracy, and unlimited flexibility are required, such as in position control systems. Rotation of bunches of discs that are torque-driven chains and fulfil different purposes in the manufacture of things such as packaging or filling of bottles. For these reasons, further advances in motor technology have found applications in improving workload conditions and enabling robots to undertake multiple tasks with enhanced precision. Furthermore, advancements in motion sensor technology have enabled the operation of DC motors more efficiently, simply, and with reduced space requirements. Administrators are pushing hard for smart solutions and the integration of Industry 4.0 standards, wherein the use of direct current motors, in addition to fueling the current robotic and automation revolution, remains critical in the context of the advancements.

Automotive and Transportation

The understanding that DC Motors are one of the most important components used in many devices in the Automotive and Transportation sectors, with performance being the primary factor. They are also prominent in the electric and hybrid vehicle drives, assist steering of the vehicle, and even in mechanized brakes. Such motors are highly appreciated for being lightweight, optimized for power performance, and reliable, and thus represent some of the most effective tools in the quest for car fuel efficiency and the reduction of greenhouse gas emissions. Current changes in the demand for electric vehicles and self-driving van technology are changing the way moors have been designed — they are being designed to be higher in power, and resistant to wear and tear. This new age of transportation, made possible by the use of renewable energy, is suited for motor applications.

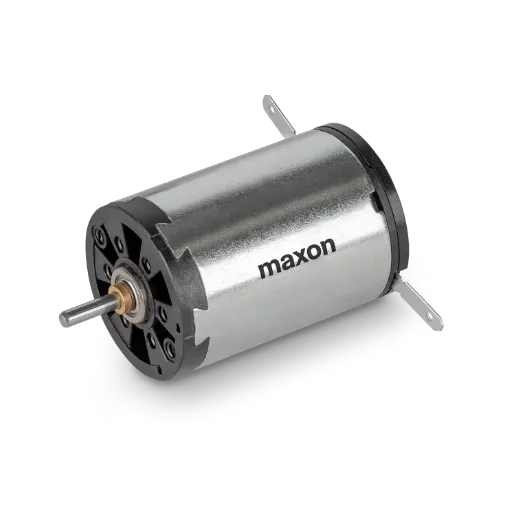

Understanding Brushed DC Motors

The principle of operation of brushed DC motors is based on the generation of a magnetic field using an electric current within the windings of the motor, which field interacts with the magnetic field of permanent or temporary magnets placed inside the motor. This interaction causes a pushing force that helps to rotate the motor’s shaft. Moving parts within the apparatus help to make the device operational, such as the rotor and stator. For example, the element called Rotor includes an axis and a ring around it. The windings are winded on th rings. The brushes located near the motor transfer current, so the bar can be fixed by clipping the rings to rotate. The work of such motors is quite cost-effective and straightforward, but it has one drawback–the shaft of the rotor has to be replaced.

Operational Principles of Brushed DC Motors

The straightforward design of a brushed DC motor makes it worthy of mention as one of the first advantages of such motors. It is not difficult to understand their construction; therefore, they are easier to handle and manage. An exception to the high cost lies in the fact that brushed motors are significantly cheaper relative to brushless motors. Moreover, they deliver sufficient power to maintain their position at rest, and accordingly, the electrical speed is effortless to control by adjusting the voltage inputs. This ease of control has made these kinds of motors widely used in automobiles, household fittings, as well as machinery and equipment for marketing buildings, demolition of buildings, and enhancement of human work.

However, brushed DC motors also have some disadvantages. Over time, brushes and a commutator wear out, and the motor’s efficiency decreases, requiring periodic servicing. This wear may also lead to the emergence of electric arcing during the process operations, posing potential dangers in cases where electric discharge is prohibited due to safety hazards. Moreover, the noise, including both electrical and acoustic noise, that emanates from the movement of the brushes can be quite unpleasant or even unacceptable in some sound-sensitive applications. Nevertheless, brushed DC motors remain a ‘good enough’ compromise in a number of cases, particularly in those where simplicity and affordability are the main factors.

Components of Brushed DC Motors

Component	Description
Armature	A rotating coil produces an electromagnetic force.
Commutator	Switches current direction in the armature.
Brushes	Transfer the current to the rotating commutator.
Field Magnets	Generate a magnetic field for motor operation.
Shaft	Supports rotation of the motor’s armature.
Bearings	Reduce friction for smooth rotation.
Housing	Encases motor parts for protection.
Windings	Coiled wires generate magnetic fields.
Power Supply	Provides electric energy to the motor.
Cooling Mechanism	Prevents overheating during operation.

Advantages of Brushed DC Motors

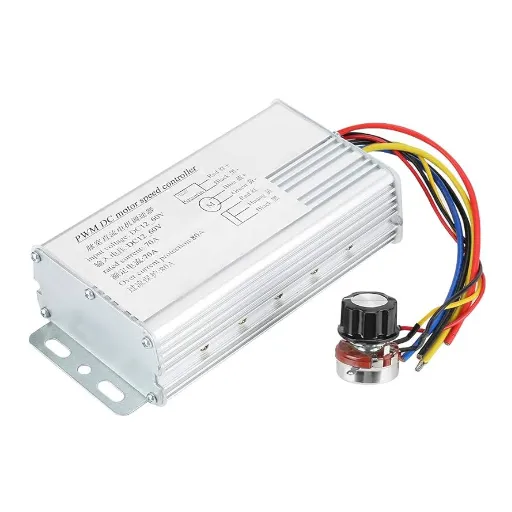

Controllers for DC Motors

Controllers for DC motors are a necessary component where the speed, direction or torque of the motor are to be controlled. These work by varying the voltage or flow of current to the motor so as to ensure accurate control and efficiency. Some of the various types of controllers that are used in that regard include:

• Pulse Width Modulation (PWM) Controllers: Inverters or PWM controllers are extensively used as they provide speed variation by adjusting the duty cycle of the motor.
• Linear Controllers: These controllers are capable of making seamless speed variations and are a more ideal choice for small capacity applications.
• Proportional-Integral-Derivative (PID) Controllers: PID controllers are best suited for systems that require high accuracy, as they prevent unstable motor conditions and maintain stability through continuous feedback/adjustment.

Controllers, when selected adequately for a given application, enhance the efficiency, service life, and performance of a DC motor.

Types of Controllers for DC Motors

Type of Controller	Key Features	Suitable For	Efficiency Level
Linear Controllers	Basic speed and direction control	Simple applications	Low to Medium
PWM Controllers	Precise speed and torque control	High efficiency needs	High
H-Bridge Controllers	Reverse motor direction control	Robotics and automation	Medium to High
Digital Controllers	Microprocessor-controlled, programmable	Advanced precision applications	High
Current Controllers	Regulates motor current for safety	Applications with variable loads	Medium
Voltage Controllers	Adjusts the voltage for the desired speed	Small-scale motors	Low to Medium
Servo Controllers	Accurate position and speed tracking	Servo systems	High
Field-Oriented Controllers (FOC)	Optimized for smooth, dynamic control	High-performance motors	Very High

Speed Control Techniques

Speed variation techniques are considered as one of the approaches to reaching efficiency and precision in contemporary control systems. Particularly, Pulse Width Modulation (PWM), as one of the most extensively used technologies, is primarily used to vary the average voltage to the motor while simultaneously changing the standard volume of the power of the signals. The benefit of PWM is that it helps maintain smooth speed control, resulting in reduced energy loss. Another complex method that has emerged is Field-Oriented Control (FOC), a method of vector control that precisely determines current torques in relation to predetermined desired requirements, without considering current restrictions. This feature is mainly used with modern high-speed motors. Based on position and speed, these controllers adjust the time intervals to minimize speed deviation by allowing a suitable flow of voltages. These designs enhance overall efficiency, reduce wear and tear, and improve the economy of all components.

PWM Controllers and Their Benefits

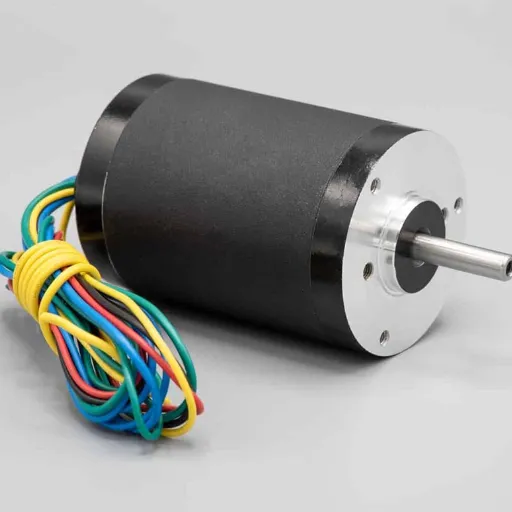

Maintenance Best Practices for DC Motors

• Regular Inspection: Frequently check for visible signs of wear, such as loosened connections, frayed cords, and burned or broken brushes. Address these issues promptly to prevent escalated problems.
• Brush and Commutator Care: It’s necessary to check the brushes and commutator regularly. Whenever you see brushes that look like they need to be replaced, do so. Brush or wipe the commutator as well to ensure its proper operation.
• Lubrication: Apply the lubricant suitable for the operation, as recommended by the equipment manufacturer, to the bearings by spraying or rubbing it in, so that the bearing parts move against each other without appreciable friction.
• Prevent Overloading: Operate the motor under its rated load to avoid overheating and mechanical stress that might cause ineffectiveness or breakdown of the motor.
• Keep it Clean: Ensuring dust removal. Additionally, debris and other particles that might hinder the convergence of the enamel wires or restrict airflow into the machine should be regularly removed from the motor.
• Temperature Monitoring: It is essential to verify that the equipment’s temperature remains normal and does not exceed the safe operating range during operation, particularly in areas where significant power is converted to heat within the motor.

Regular Inspection and Cleaning

It is essential to periodically control and clean the motor to maintain its efficiency and prolong its lifetime. Assessing wear, rust, and connections on the exterior is the first step that should be carried out. The products, such as gaskets, wiring, and fastening elements, should be carefully looked into. Without fail, during motor maintenance or motors, the safe removal of dust and other dirt-like materials from the parts is a paramount necessity to help circulate air, for cooling, as well as avoiding any forms of thermal ablation. The correct agents and tools, such as compressed air or cleaning agents that are resistant to electricity, must be used for effective cleaning to maintain the motor’s good working order without damaging any internal parts. Additionally, replacing filters and maintaining existing grills will help prevent the engine from reaching its peak efficiency. All these measures combined help to reduce downtime and increase valuation, and the overall reliability is enhanced.

Lubrication and Bearing Care

Effective bearing care and lubrication processes are vital for the efficient operation and long life of equipment. While the bearings facilitate smooth rotational operation and control load sharing, improper lubrication can lead to overheating, wear, and ultimately, stoppage. It is essential to use the correct type and quantity of lubricant as specified by the manufacturer, thereby avoiding over-lubrication, which, in reality, may be just as harmful as under-lubrication. Checking the bearing temperature and vibration levels regularly can help identify the initial effects of wear or inadequate lubrication. However, synthetic oils of the latest generation and specialized oil analysis services are increasingly used in modern maintenance services, making it easier to enhance effectiveness while reducing friction further. Nonetheless, under no circumstances should insufficiently replenished lubricants be allowed to circulate, as the longitudinal parts in the bearings will fail short of their useful life. A proper lubrication scheme, along with assessing the state of bearings for impurities or wear, helps ensure continued operation and prevent expensive repairs.

Common Issues and Troubleshooting

During usage, bearings may be exposed to various operational constraints, and addressing them promptly will help keep them in working order for an extended period. Among these constraints, the most easily noticeable and quite widespread one is overheating. This is generally due to the bearing’s system becoming over-lubricated, under-lubricated, or contaminated by foreign particles. Excessive heat generated, typically caused by improper lubrication, leads to higher wear and decreased mechanical efficiency. Often, attribute misalignment is observed; in this condition, loading occurs in an uncontrollably asymmetric manner over one portion, which eventually leads to excessive vibrations that can cause serious consequences for the structure. Conversely, the lack of proper alignment most frequently results in an uneven distribution of force, which in turn leads to increased friction and rapid wear of the components.

In order to address any issues in the shortest time possible, one must take note of the equipment operation history, which includes key performance indicators like temperature, noise, and vibration, and their effect on the equipment. Very often, a rapid increase in more than acceptable values of noise or vibration is regarded as a fault. Check whether the seals are in place and intact to prevent dust or moisture from the surroundings from contaminating the equipment components. Do equipment and machinery alignment or balance checks on a scheduled basis. They can be any devices to monitor the condition of the equipment, or, for instance, the use of an infrared thermometer to locate probable problems as they occur, or even before they worsen. Working on these underlying problems in a structured manner enables maintenance teams to provide continual improvements in system reliability and ensure that bearing systems receive optimal service, resulting in the elimination of both lost time and downtime through repairs.

Reference Sources

1. Comparison of Brushless DC Motors with Trapezoidal and Sinusoidal Back-EMF

   • Summary: This study presents an improved model for 120° brushless DC (BLDC) motor-inverter systems with trapezoidal back-EMF. The research highlights the accuracy of this model compared to traditional sinusoidal back-EMF models.

2. 180-Degree Commutation System of Permanent Magnet Brushless DC Motor Drive

   • Summary: This study introduces a novel 180-degree commutation system for permanent magnet BLDC motors. The system improves torque output compared to conventional 120-degree systems and demonstrates effective speed and current control.

Frequently Asked Questions (FAQs)

Q: How do brushed DC motors differ from brushless DC motors?

A: The primary difference between brushed and brushless direct current motors lies in their structure and functions. Where brushed motors necessitate the inclusion of electrical brushes to supply the rotor with the necessary electrical current, brushless motors use electronic controllers in their operation, thereby eliminating the need for mechanical brushes. As a result, brushless motors are more effective and quieter, and are suited to applications that require higher performance, are easy to operate, and require low maintenance. It is easier, however, to use brushed motors because they provide a simple, cost-effective solution. Such distinctions need to be carefully considered while selecting the right motor for a given use case.

Q: What is the significance of torque in large DC motors?

A: Torque is vital in the operation of bigger DC motors as it is key to the ability of the motor to do work. Large electric motors with high torque are useful where there are requirements for high starting torque and continued operation under load. The exact amount of torque a motor can exert can be measured, of course, depending on its design, such as whether it is a PMDC (permanent magnet DC) type or a wound field type. In many cases, especially in between low-torque and heavy-duty applications, high-torque density is desired to avoid operating at a disadvantage. In view of the above torque considerations, it is a crucial aspect when selecting DC electric motors for various tasks.

Q: What are the benefits of using a speed controller with large DC motors?

A: A user-friendly approach to plotting the performance of a big DC motor is by using speed controllers, which allow for precise control of RPM and torque. When a PWM (Pulse Width Modulation) controller is used, power saving is notable, and efficiency is achieved effectively. It is indispensable in applications such as robotics or electric mobility, where speed and torque have to be minutely adjusted. Furthermore, using a speed controller has the additional benefit of improved motor durability, as the motor runs at full power only when necessary, thereby avoiding the usual wear. In conclusion, the use of a speed controller aids in improving performance and manoeuvring capabilities.

Q: What should I consider when choosing a large DC motor?

A: When choosing a bigger DC motor, the consumer is faced with several issues to solve, like the voltage rating, the torque, and the application requirements. For example, the user can choose between motors that operate at 12V or 24V levels, and determine whether this will be compatible with their equipment. Additionally, the type of motor, i.e., whether it is brushed or brushless, as well as its maintenance and efficiency, directly depend on such inherently incorporated features. There is also no doubt that the motor’s operating details have to be analyzed to confirm that it will perform within the specified limits of making use of it in a particular task. In view of these factors, it is possible to select the motor that best meets one’s needs.
