Understanding Solid State Frequency Converters: An Ultimate Guide

Frequency conversion is an excellent application for Solid-State Frequency Converters, and it contributes to significant advancements in power conversion technologies. From industrial manufacturing processes to aerospace and the generation and supply of renewable energy, many methods rely on these converters for their optimum functioning. This book aims to provide an introduction to the basics of SSFCs, their operation, key components, and advantages over rotary-type counterparts. Regardless of whether you are an engineer, a business associate, or just wanting to expand your knowledge on contemporary power conversion equipment, this article intends to be a solid authority. When winding up reading this article, you will have garnered some basic understanding of the technology, applications, and why the future of energy systems has its sustenance from it.

Core Functionality of Solid State Frequency Converters

This method achieves frequency conversion using semiconductors without the need for a rotating armature, unlike the mechanical system. The three basic stages are as follows:

1. AC to DC Conversion: The alternating current (AC) of the input power source is converted into direct current (DC) using the rectifier. The primary method for stabilizing the power signal.
2. DC Conditioning: The rectifier’s output is filtered and regulated to prevent variations and noise. This, in turn, allows fine control of the frequency conversion process.
3. DC to AC Conversion: Conversion of DC back to AC at the desired frequency through the use of modern inverters for easy acceptance by the connected systems or devices.

Due to this solid-state method, traditional rotating machinery is not required; hence, higher reliability, quicker response times, and increased efficiency are achieved during frequency conversion.

What is a Solid State Frequency Converter?

A solid-state frequency converter is an advanced electronic device used to convert the frequency of an alternating current (AC) power supply from one frequency to another while maintaining stable output voltage levels. These converters utilize semiconductor technology, eliminating the moving parts commonly found in rotary frequency converters of the past. The key components of a solid-state frequency converter include rectifiers, inverters, and control systems, which enable accurate frequency modulation and voltage regulation.

Solid-state frequency converters have wide applications in matching equipment designed for various power standards. For instance, in the aerospace, manufacturing, and military sectors, these converters are used to provide power to systems whose frequency specifications differ from that of the local grid. Their compact nature, energy efficiency, and high reliability make them a suitable choice for today’s electrical systems. For continuous improvements in converter efficiency and functionality, further advancements in power electronics and semiconductor materials are indispensable for enhanced control and metrological performance in the field.

Unique Features of Solid State Frequency Converters

High Efficiency

Solid-state frequency converters achieve an efficiency of approximately 95%, significantly reducing energy losses compared to rotary-type converters. This advanced efficiency is achieved through the use of high-tech semiconductor materials that produce less heat and therefore waste less energy.

Compact and Lightweight Design

Since these converters do not contain mechanical parts, they can be made very compact. A typical solid-state converter is also 50-70% lighter and smaller than the rotary system. This makes the former easy to mount and hence suitable for installations in constrained spaces.

Precise Output Frequency Control

Frequency determination by solid-state frequency converters is possible with an accuracy of up to ±0.01 Hz. Such high precision is necessary in applications that involve highly sensitive equipment. Some said applications can be found in aerospace, medical imaging, and semiconductor manufacturing, where even small perturbations can lead to operational inefficiencies or outright damage to the equipment.

Wide Input Voltage and Frequency Range

The systems allow for a wide range of input voltages (100V-480V, for instance) and frequencies (e.g., 50 Hz or 60 Hz, and even 400 Hz), producing a very versatile fit for worldwide use or for an apparatus requiring non-standard power specifications.

Superior Reliability and Durability

Thanks to the lack of moving parts, solid-state frequency converters are highly reliable and experience a reduced rate of wear and tear compared to mechanical alternatives. Frequently, a given installation lasts more than 20 years with virtually no maintenance, thereby lowering the total cost of ownership.

Advanced Protection Features

Alongside most converters are built-in protections, including over-voltage, under-voltage, over-temperature, and short-circuit-induced protections, all working to ensure the safety of the system and enhance the lifespan of the devices in harsh operational environments.

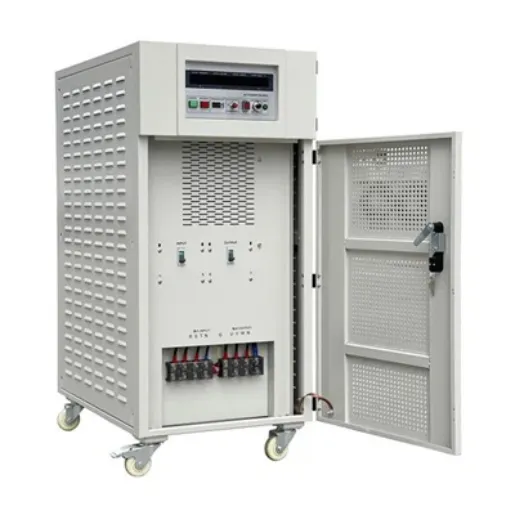

Benefits of Solid State Frequency Converters

• Energy Efficiency: By reducing power losses through conversion, solid-state frequency converters offer a more energy-efficient solution, making them the best suited for long-term operations in terms of cost-effectiveness.
• Precision Control: They guarantee precise control over frequency and voltage, allowing for maximum operation and protection of delicate equipment in various industrial applications.
• Compact and Lightweight Design: These converters are remarkably compact and lightweight compared to classical mechanical systems. This makes installation easier and requires fewer spaces.
• Reduced Maintenance: Since solid-state converters have no moving parts, they incur minimal wear and tear, thereby lowering maintenance requirements and contributing to their overall reliability.
• Environmental Sustainability: Their high efficiencies and low energy waste impose a lesser burden on the environment, thereby satisfying the sustainability recipe.

Improved Efficiency and Performance

Modern solid-state converters utilize the most advanced technology available for semiconductor fabrication and thermal management. Because their conversion efficiencies approach or exceed 95%, these systems minimize energy losses during operation, thereby substantially reducing the cost of equipment and ensuring its long lifespan. Additionally, the high-frequency switching enables precise power adjustments, ensuring the output remains steady under varying loads. This stability and reliability offered by the converters make them an essential component in power systems of industrial and renewable nature. These solutions continue to raise the standards of power conversion technology by employing advanced materials and novel design approaches.

Reliability and Longevity

Reliability and lifetime are essential features for creating and operating power conversion systems. The introduction of better thermal management systems, such as high-efficiency heat dissipation materials, has significantly reduced the operational stresses inflicted on components and consequently extended their lifetimes. The adoption of wide bandgap semiconductors, including silicon carbide (SiC) and gallium nitride (GaN), further enhances reliability by allowing operation at high voltages and temperatures. These improvements reduce failure rates and guarantee consistent function in hostile operating environments, such as industrial premises, where the formation of any type of downtime potentially entails significant losses. Statistical data from the industry indicate a high robustness of modern power converters in fulfilling long-term operational objectives, as evidenced by a pronounced decrease in maintenance periods and mean time between failures (MTBF) indicators.

Versatility Across Applications

Thanks to modern power converters being both engineering-wise advanced and featuring a modular architecture, their versatility and adaptability enable them to be employed across various industries, catering to a wide range of operational needs. At the renewable section, converters ease the conversion of energy by accommodating various grid standards and enhancing overall efficiency. Likewise, the converters are used in further applications to manage energy distribution within electric vehicles, thereby improving battery utilization and range extension.

A recent development in wide-bandgap materials, particularly silicon carbide (SiC) and gallium nitride (GaN), further enhances the operation of power converters in high-frequency and high-voltage applications. This ensures the converters meet the highest power density, allowing for faster switching speeds and increased tolerances, which enable the converter to be used in aerospace and healthcare for precision applications. Industry reports emphasize their growing acceptance and projected CAGR with values exceeding 5% in the global market over the next decade. This flexibility ensures that contemporary power converters meet current demands and foster a future that demands sustainability and efficiency.

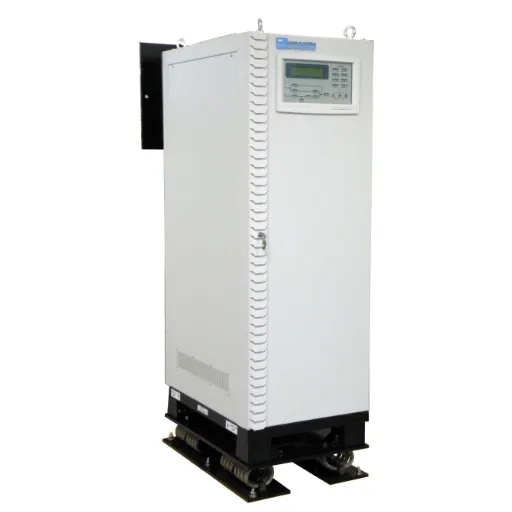

Applications Across Industries

Modern power converters are essential because they are efficient and reliable.

• Aerospace: Power converters regulate and distribute energy systems to ensure performance is maintained throughout extreme conditions.
• Healthcare: Power converters are necessary in sophisticated medical equipment, as their uninterrupted power supply requirements must be met in full, ensuring precise energy delivery when needed.
• Renewable Energy: These power converters are utilized in optimizing solar panels and wind turbines for improved power transmission, thereby achieving higher energy efficiency.
• Telecommunications: Power converters have a role in maintaining the stability of data centers and communication towers under unpredictable and unbalanced loads.

These applications emphasize the versatility and industrial importance of power converters.

Manufacturing Applications

• Industrial Automation: Power converters regulate the energy supplied to automated systems to maintain consistent performance, thereby preventing malfunctions in the numerous operations that require transformer-based power converters for robotic assembly lines. This ensures a stable voltage is maintained for optimal operational accuracy.
• CNC Machines: Power converters enable CNC machines to handle variations in motor speeds and tool positioning with high precision, which is crucial for ensuring fabrication integrity and minimizing material waste.
• 3D Printing: Depending on the application, power converters serve to stabilize input energy for additive manufacturing (3D printing) if this process requires extra precision in the laying of materials.
• Heating Systems: Converters are used in induction heating to produce the optimal amount of energy required for metal forging or annealing, ensuring efficient energy utilization and process reliability.
• Lighting Systems: In a manufacturing installation, energy-efficient lighting requires power converters to modulate electricity usage, thereby increasing the system’s lifespan and reducing operating costs.

Aerospace Industry Use Cases

• Avionics Systems: Power converters are among the most critical components in avionics, providing precise voltage levels to onboard electronic systems for optimal functioning. The converters also ensure that crucial systems, including communication, navigation, and flight control systems, are fail-safe.
• Electric Propulsion: Power converters are employed in electric propulsion systems for advanced aerospace vehicles to control energy flow between batteries and electric motors, ensuring the efficient use of energy for longer flight times with solar-powered environmental friendliness.
• Environmental Control Systems (ECS): Power converters are used in environmental control systems to manipulate and control pressurization, heating, and cooling processes. These processes help maintain comfort levels and operational standards for passengers during flights.
• Spacecraft Operations: The power converters interface between the energy collected through solar panels and convert it into usable energy for scientific instruments, propulsion, and communication arrays required by satellites and other spacecraft. Their top-level efficiency and adaptability are of utmost importance since the space environment lacks such extreme conditions.

Renewable Energy Solutions

The term “renewable energy” denotes systems that rely on efficient power conversion and management techniques to yield maximum energy and promote sustainability. Solar photovoltaic systems stand as an example of this. Such DC electricity, produced by sunlight hitting the solar panels, is actually converted into suitable AC for use at home or in industry. Modern inverters feature advanced algorithms for maximum power point tracking (MPPT), ensuring optimal energy extraction even under varying sunlight conditions. Similarly, wind turbines employ converters to regulate power flow from variable-speed generators, ensuring grid-compatible output.

Currently, grid-scale energy storage is a key option for storage, with lithium-ion batteries and flow batteries helping to address the intermittency issues associated with renewables. Power converters maintain a stable energy level at both the input and output sides, thereby efficiently utilizing stored power when demand is high or when renewable generation is low. Finally, in the case of hydroelectric plants, converters regulate turbine operation and energy distribution modes. Thus, the broad applications of these converters in the renewable energy field emphasize their importance in strengthening grid reliability while accelerating the transition to clean-energy platforms worldwide.

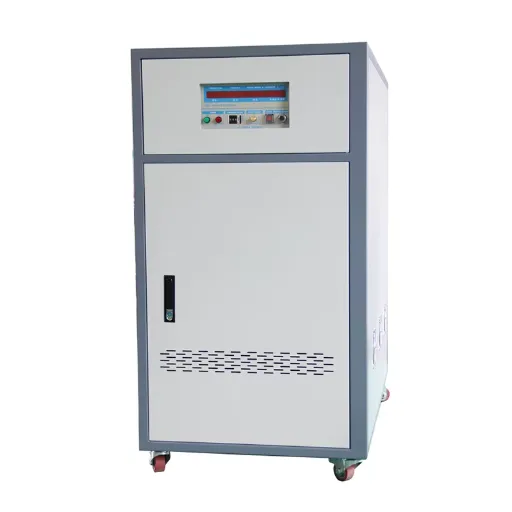

Comparison with Traditional Frequency Converters

Traditional frequency converters and modern power converter functionalities differ considerably, as do their efficiencies and applications. Conventional frequency converters operate primarily by speeding up or slowing down the motor by changing the supply frequency, unlike their modern counterparts. Traditionally, these have been very effective in industrial applications but tend to be limited in handling variable energy inputs derived from renewable sources.

Modern power converters have therefore been designed as the ideal solution to the complex variable energy scenarios. They efficiently convert, store, and stabilize power from intermittent sources such as solar or wind energy, ensuring an uninterrupted and reliable electricity supply. Besides being less efficient than traditional converters due to their technological design, modern converters offer a secondary advantage, as they employ power electronic technologies and grid integration techniques to enhance their efficiency and minimize losses. It is due to these improvements that modern converters are a crucial component in transitioning to sustainable energy solutions.

Cost-Effectiveness Analysis

Cost-effectiveness is crucial when evaluating any technological option, particularly in the energy industry. Due to their sophisticated designs, use of cutting-edge materials, and modern systems that facilitate better integration, they require a significant upfront investment. On the other hand, such technologies go a long way in saving users significant amounts over the years in operational costs, hence their efficiency and durability. A system that integrates advanced renewable energy applications may be projected to have a 20-30% reduction in energy costs over a 10-year timeframe, compared to conventional ones.

On the contrary, antique systems generally appear cheaper due to their low initial purchase price, but they often require high maintenance and operational costs later on. Environmental costs associated with those older systems also give them greater disadvantages, with higher carbon emissions and less energy efficiency, making them lag behind modern applications. A detailed life-cycle cost analysis has shown that investing in advanced, sustainable systems yields better financial and environmental returns in the long run, thus positioning them for viability in both private and public sector applications.

Ease of Use and Maintenance

Modern systems now come with user-friendly features that generally promote more effortless operation and simpler maintenance. A few such features include intuitive interfaces, automated diagnostics, modular components for ease of operation, and a reduction in repair time. For example, these intelligent systems include predictive maintenance, which utilizes advanced algorithms on system data to predict failures and prevent downtime by resolving issues before they occur. Additionally, cloud platforms enable users to monitor systems and receive real-time updates remotely. Such insights would allow users to enhance system performance. Comparative studies demonstrate a significant reduction in interruptions and maintenance costs due to these features, making such systems highly attractive from an operational standpoint for a wide range of applications.

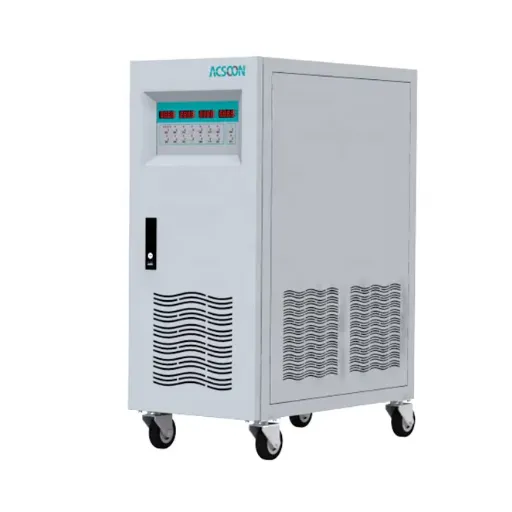

Maintenance Tips for Optimal Result

• Adhere to Manufacturer Guidelines: Perform maintenance strictly according to the recommended schedule provided by the manufacturer to maintain the specified performance of all components.
• Perform Regular Inspections: Conduct routine checks for wear, leaks, or faulty connections to identify potential issues early and minimize downtime.
• Update Software Regularly: Ensure that firmware and software systems are updated to the latest versions to maintain compatibility and security.
• Clean Components Periodically: Keep essential parts free of dust, debris, and other contaminants to prevent blockages or overheating.
• Monitor System Metrics: Utilize any analytical tool or cloud-based platform to monitor system health and identify anomalies in real-time continuously.
• Replace Worn Parts Promptly: Replace aging or damaged parts with their approved types to maintain optimal performance.

Identifying Signs of Wear and Tear

Good maintenance can help foresee the corrosion/aging, and degradation of any system, thereby enhancing longevity and reliability. Typical behaviors that loss of reliability exhibits include abnormal noises, such as grinding, buzzing, or clicking, which may indicate mechanical degradation or misalignment with components. Additionally, sudden fluctuations in metric behavior, such as a reduction in processing speed or an increase in power consumption, may indicate inefficiencies or defective parts. A temperature rise may signal that cooling systems are faulty or overworking. Other observable indications include cable fraying, corroded terminals, or wear on mechanical components that need immediate correction. Regular checks, combined with cutting-edge monitoring tools such as thermal imaging or vibration analysis, can significantly help detect these potential issues earlier, thereby ensuring prompt intervention and reducing the risk of failure.

Best Practices for Longevity

To fully extend the operational lifespan of vital equipment, it must be maintained through thorough and strict, timetabled maintenance processes consistently. Begin by installing condition monitoring systems with IoT-enabled sensors that provide real-time readings of temperature, vibration frequencies, and load conditions, enabling precise diagnostics and timely repairs whenever degradation becomes apparent. Ensure that all lubricants and consumables are within the manufacturer’s specifications, as the use of improper materials may accelerate deterioration and reduce efficiency.

Environmental control is another critical factor. By maintaining certain favorable ambient conditions, corrosion, condensation, or thermal stresses can be avoided, as these are the natural causes leading to fatigue in the equipment. Also, periodic verification and calibration of safety devices, including those for overload protection and emergency shutdown systems, reduces the chances of catastrophic failure during operational stages.

Critical is training staff on the latest operational and safety procedures to ensure the proper handling of equipment during its service period. Detailed documentation of maintenance and performance information, which serves as a source of historical data, will be used to support future decision-making and long-term planning. When implemented together, these measures contribute significantly to improving reliability, reducing downtime, and thereby extending asset life.

Reference Sources

1. Solid-State Transformer Technologies and Applications

   • Summary: This paper provides a comprehensive bibliographical survey of solid-state transformers (SSTs), focusing on their configurations, control strategies, and applications.

2. Solid-State Transformer Based on Modular Multilevel Converters

   • Summary: This study introduces a compact SST topology using modular multilevel converters (MMCs). The design leverages coupled inductors for energy transfer, reducing the need for separate transformers. It emphasizes the advantages of scalability, low harmonic distortion, and fault tolerance.

Frequently Asked Questions (FAQs)

Q: What are the advantages of using a solid-state frequency converter?

A: Improving efficiency and mitigating maintenance costs are some advantages that solid-state frequency converters have over their rotary counterparts. These converters can provide a stable output frequency for any given input frequency, whether it is 400Hz or, for example, 60Hz. Hence, they also provide a pure sine wave, which is necessary for very delicate electronic equipment. The said converters are also relatively compact, lightweight, and suitable for use in aircraft ground power and for conversion into motor-generator sets. Solid-state converters can also be designed for any kVA rating requirement quite easily, ranging from a small 5kVA system to a top-end 20kVA setup.

Q: How does a three-phase frequency converter differ from a single-phase converter?

A: Three-phase frequency converters operate on three-phase electrical power and therefore provide a more stable and efficient power supply for industrial applications. The single-phase frequency converter is most often used for smaller loads and in the residential sector. On the other hand, three-phase converters can handle larger loads and are often used in systems that rely on motors and large machinery for power. They convert frequencies between 60Hz and 50Hz or allow you to regulate the resultant frequency according to your requirements. The considerations between single-phase and three-phase systems depend on power specifications and applications.

Q: Can a static frequency converter be used for 400Hz applications?

A: Absolutely, static frequency converters are very much used in the 400Hz applications, mainly in aviation and military fields. These converters take in any standard AC power and modify it to the 400Hz frequency required by the aircraft’s ground power systems. It truly is an efficient and reliable solution provided by static frequency converters for supplying 400Hz power to numerous devices. This system eliminates the need for massive rotary converters, making it a favored solution in many current applications. Additionally, they can provide variable frequency outputs to accommodate specific operational requirements.

Q: What is the role of a motor generator in frequency conversion?

A: A motor generator is the conventional equipment used in frequency conversion, generally converting fixed-frequency power to another frequency. It consists of an electric motor coupled to a generator capable of converting electric energy from one frequency to another, e.g., from 60Hz to 50Hz. Motor generators have become almost obsolete due to their inefficiency and bulk; nowadays, the term “motor generator” usually refers to niche applications where a pure sine wave output is essentially required. They are also used where electrical isolation is needed. Even though solid-state solutions are favored in most frequency converter designs nowadays for their versatility and reduced maintenance.
