30KVA Three Phase 400v 50Hz/520v 60Hz Frequency Converter Cabinet

Three Phase Static Frequency Converter Cabinet

The 30KVA Three Phase Frequency Converter Cabinet is a robust and versatile solution designed to meet the demands of industrial and commercial applications. This high-performance converter offers seamless conversion between 50Hz and 60Hz frequencies, making it ideal for global operations and equipment compatibility.

This frequency converter is perfect for industries requiring precise power conversion, such as manufacturing, aerospace, and testing facilities. Its ability to handle diverse voltage and frequency requirements ensures compatibility with a wide range of equipment.

INSTANT QUOTE

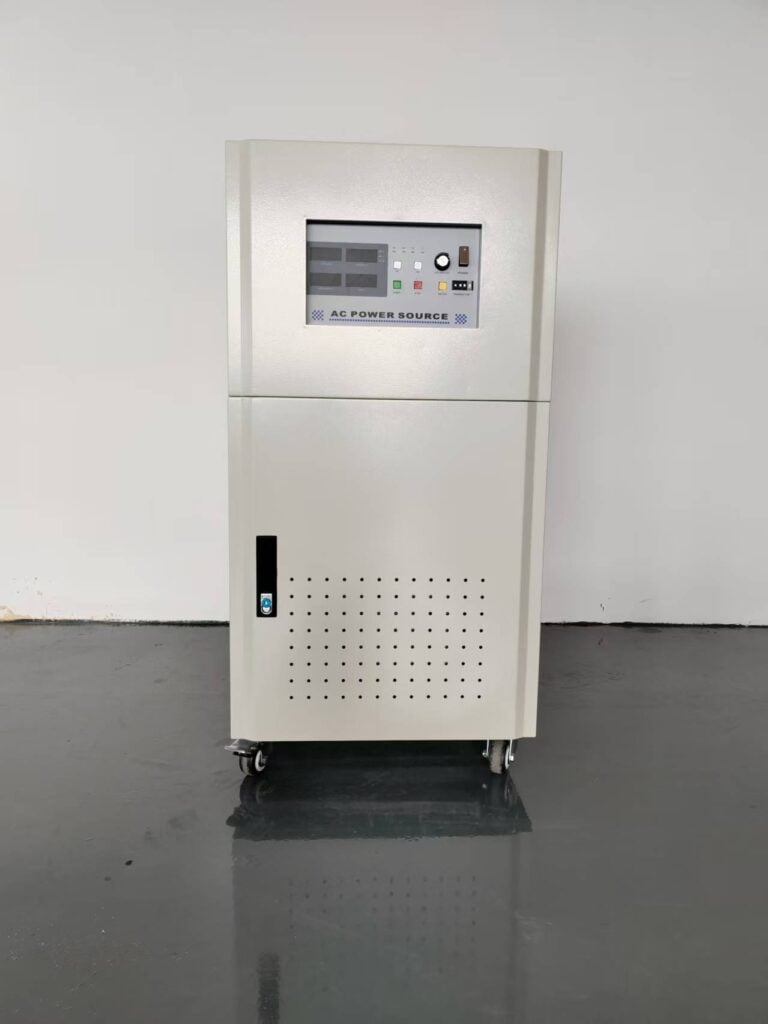

30KVA three-phase Static Frequency Converter
Advanced Technology
Strict Quality Standards
Diverse Product Range
Global Reach

WKS-33030 Static Frequency Converter Cabinet Product Overview

Wide Voltage & Frequency Range

Adjustable output voltage from 0-260V (low) to 260.1-520V (high) and frequency range of 40-500Hz, ensuring compatibility with diverse equipment.

High Precision & Stability

Voltage accuracy of ±1%, frequency stability ≤0.01%, and harmonic distortion of ±1% for reliable and consistent performance.

Comprehensive Safety Protections

Built-in fast-response circuits for over-voltage, over-current, overload, over-temperature, and short-circuit protection with audible and visual alarms.

User-Friendly Monitoring

LED displays for frequency, voltage, current, and power, providing real-time, precise data for easy operation and control.

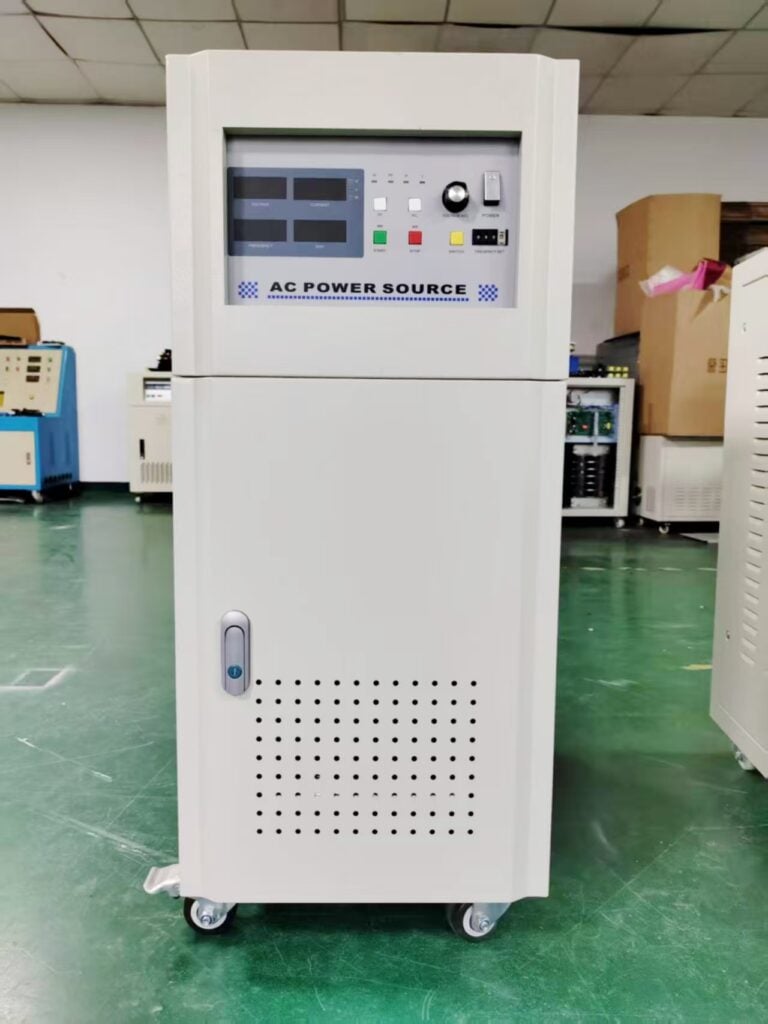

three-phase Static Frequency Converter

WKS-33030 Frequency Converter Cabinet Specifications / Additional Information

ParameterValue
TypeWKS-33030
Capacity30KVA
AC Input Voltage
PhaseThree phase
Voltage400V±10%V (3P+N+G)
Input Switch3P 100A switch
Frequency50Hz/60Hz
AC Output Voltage
PhaseThree phase
Output Switch3P 100A switch
Output VoltageL=0-260V, H=260.1-520V
Frequency40-500Hz
CurrentL=66A, H=33A
Frequency Stability0.01%
Output Voltage Wave-formsSine CF=1.4 standard
Voltage Accuracy±1%
Frequency Stability≤0.01%
Voltage Stability±1%
Harmonic Distortion±1% (resistive load)
Line Regulation≤1%
Load Regulation≤1%
Response TimeMax. 2ms
Overload Capacity30s (110-150%), 10ms (150-200%)
Meter & Resolution
Frequency Meter0.1Hz, 4 digits LED
VoltmeterResolution 0.1V, 4 digits LED
AmmeterResolution 0.001A/0.1A, 4 digits LED; 0.01A/0.1A, 4 digits LED
Power MeterResolution 0.01W/0.1kW, 4 digits LED; 0.1W/0.1kW, 4 digits LED
Preset FunctionPreset output voltage, output frequency and output voltage floating ratio
Fast Key FunctionFast key for output voltage switch, frequency switch, output voltage floating selection
Alarm FunctionAudible and visual alarm once protective device activated; display error code on LED
ProtectionFuse switch for input and output; Fast-response circuit to detect over voltage, over current, over load, over temperature and short circuit; Output will be shut down in protection mode.
CoolingFan cooling
Pressure Insulation1800Vac/5Ma/1min
Insulation ReactanceAbove 500Vdc/20MΩ
Operation Environment
Working Temperature0℃-40℃
Relative Humidity≤90% RH (Non-condensing)
Altitude1500m
Machine SizeL800*W550*H1140mm
Net Weight (KG)350KG
