Static Frequency Converter Solutions: Reliable Power Conversion with SFC

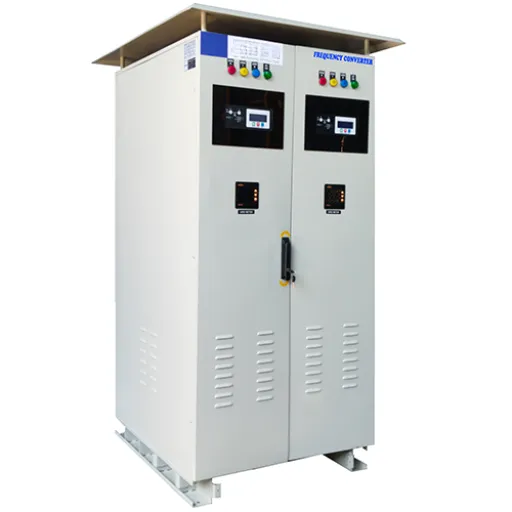

Understanding Static Frequency Converters

The primary function of this type of converter is to perform the conversion of electrical energy at one frequency to another without involving the use of mechanical components. This structural content is complemented and enhanced by the use of solid-state-based electronics to interrupt and reshape the alternating voltages. SFCs perform their role by providing input power at a different frequency to achieve the required frequency output in the system. The above is comprised of a range of items, including those used in the following order, such as Aircraft Technologies, Transportation, and Power Generation, to name a few, where accurate frequency control has a direct correlation with the efficiency and safety of the system.

What is a Static Frequency Converter?

A Static Frequency Converter (SFC) functions by translating power provided at one low frequency into another higher one with the help of certain clear stages. First, the AC input power is changed to a direct current (DC) by a rectifier. This direct current is then carried away by an intermediate DC link, which prevents voltage drop or fluctuation of the supply. At last the fixed DC is changed again to an AC of a suitable output frequency and voltage using an inverter. In more sophisticated SFCs, the pulse width modulation technique is employed to enhance output waveform accuracy, thereby mitigating the distortion effects of harmonics and improving the functioning of the connected loads. Their block-wise structure makes it suitable for scaling and modification, which is why SFCs are extremely important in areas that require high accuracy and reliability.

How Static Frequency Converters Work

The role that Static Frequency Converters (SFCs) play lends itself to projection in various industries due to their unique ability to adjust and manage the frequency of electrical power to meet any operational need. One of the main applications is in aviation, as SFCs enable converting the standard 50 Hz or 60 Hz supply network to the 400 Hz required for onboard aircraft units while the aircraft is parked on the ground. Such a scheme allows for eliminating redundant equipment in the airplane that produces electricity, thereby increasing its functionality and efficiency on the ground.

Optimally, SFCs have a particular ubiquitous application in the marine sector, which further allows connecting the ships to a district power – it is a shore-to-ship power cable, also referred to as shore power. The SFCs achieve this by adjusting the frequency of the power coming from the pier power outlet to match the frequency of the ship’s power network, ensuring efficient power transfer and preventing pollution associated with the boat’s engines.

It’s not only driving, but also the production and energy sectors of the future, that employ SFCs on a large scale. More specifically, they provide precision in operations with machinery that has changeable speed, along with devices that enable the integration of compact renewable energy sources, such as wind, into power grids operating at various frequencies. The factors of adjustment responsiveness and speed, as well as fail-safe capabilities, of SFCs are essential in the world and for such technologies as those highlighted above.

Types of Static Frequency Converters

Type of Static Frequency Converter (SFC)	Key Points and Parameters
Cyclo-Converter	Direct AC to AC conversion, no intermediate DC stage.
Matrix Converter	Compact design, uses a switching matrix for conversion.
Voltage Source Converter (VSC)	DC link capacitor, bidirectional power control is possible.
Current Source Converter (CSC)	Utilizes a DC link inductor, suited for high power outputs.
Resonant Converter	High efficiency, uses specific resonant switching methods.
Load Commutated Converter (LCC)	Ideal for high-power applications, it needs a commutating load.
Self Commutated Converter (SCC)	Uses fully controlled switches, supports bidirectional flow.

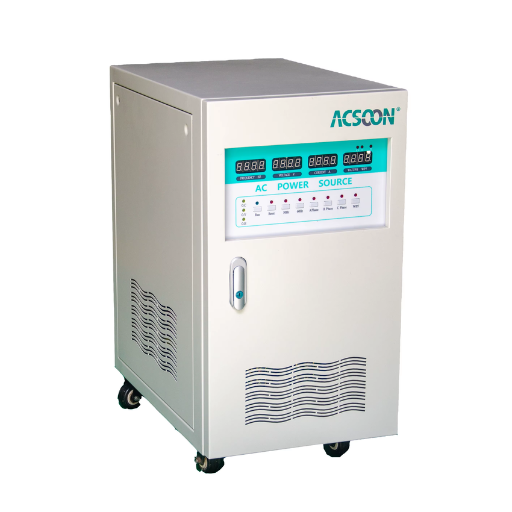

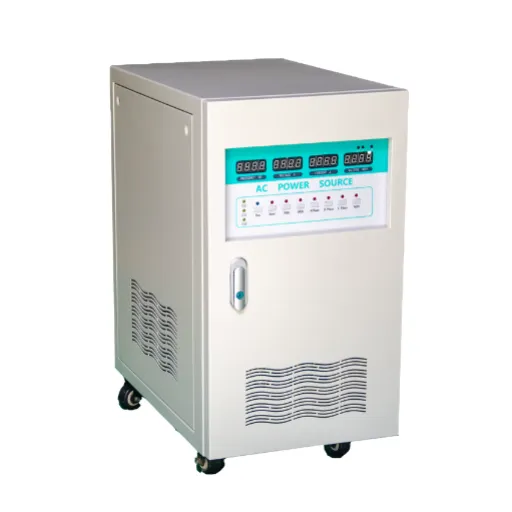

Applications of Static Frequency Converter

Most of the time, the utilization of static frequency converters is seen across various sectors because they can efficiently convert electric power from one frequency to another. Some of the uses are:

These applications indicate the significance of static frequency converters in improving energy efficiency, ensuring compatibility with systems that have constant voltage alternating current.

Use in Power Systems

Within the scope of being used for alternative sources of power and the integration of systems with various frequencies, the importance of a static frequency converter (SFC) increases significantly. This is because it is not an isolated power conversion device and this power electronics device performs the function of frequency conversion of voltages, suitably integrating matching converter-and-inverter components. In a more preferable way of enhancing power electronics, the SFC can also disguise itself as motor drives, SVC, and other types of converters. One further advantage of the device would be its capacity to improve power quality on the electric grid by enhancing the cos (s) of transformers. Power filters or power quality conditioners are sources of power electronics, allowing their technology to clean sinusoidal waves coming out from transmission or distribution lines. In certain circumstances, these demonstrate better performance than the actual generators or other alternative sources, thereby constituting a design conversion and a power factor improvement.

Integration with Grid Systems

Ensuring the seamless integration of Static Frequency Converters (SFCs) with contemporary power transmission systems has become a fundamental issue, particularly in the context of establishing effective and trustworthy grid systems. In view of the increasing number of distributed energy resources, such as solar panels and windmills, grid operators are eager to have the most effective methods for power flow stabilization and synchronization. The Specific Function of SFCs, however, is to make bridging different parts of the grid possible by harmonizing their frequencies and phases, and we should take into account the increasing penetration of renewable energy resources. The ease of integration of these technologies significantly reduces blackout events, while also reducing stress on the transmission lines and increasing their efficiency. The new technologies make it possible to provide backup frequency control and monitor systems that facilitate the appropriate use of network resources. SFCs are becoming increasingly popular due to digital control systems and real-time engine performance monitoring, particularly for SFCs. All of which contribute to increased demand for SFCs in the entire electrical energy sector..

Industry-Specific Applications

Renewable Energy Integration

Historically, SFCs have served as the last and final source of frequency control during system EXC faults and the last resort method for dealing with such issues, mainly where no other alternative existed. It has been established that SFCs are effective in compensating for load changes, as is the case in combustion turbines. Hence, with transients due to upset disturbances, the effectiveness of SFCs will depend on how fast and by what amount the droop characteristic of the generator’s frequency and the area frequency is affected. Such requirements imply that the SFC objective will be to facilitate the interconnection of two grids with rapid power interchange in the event of frequency restrictions. In cases where there are constraints on the maximum permissible speed rate, the intervention of auxiliary means for torsional compensation could be introduced.

Industrial Manufacturing

Furthermore, major industrial installations or complexes operating energy systems must be capable of sharing demand, in accordance with the grid’s criteria. To realize this, SFCs should always combine their primary power output function with STATCOM functionality for smooth and seamless operations. The proper functioning of a power system, which comprises multiple connected electric loads and generators operating in parallel, may require the services of synchronous condensers. The operation of such synchronous condensers is facilitated by the fact that they can, if needed, participate in network management.

Aerospace and Defense

Aerospace installations and military systems utilize high-frequency converters (FCs) extensively for tuned electrical systems. Such systems are deployed in ground handling equipment of different aircraft, where the FC provides the country-wide onboard system when the aircraft undergoes maintenance. Similarly, in most naval installations, such as fighters and strategic bombers, military authorities install these converters to even out the power supply to various platforms and allow for regular operation in case of a modified enemy engagement.

Railway Systems

Take, for instance, the railways, which are a crucial part of both the economic and political spheres, and which heavily rely on the use of static frequency converters (SFCs) to change the energy frequency and connect two nearby grids with varying frequency ranges. Well-developed rail transport systems must have efficient operations if they are to control a high-speed train. SFC addresses this need through the provision of an effective and responsive transient stability control system, which enhances railway infrastructure reliability and reduces operational costs by optimizing electricity utilization within the system.

Technical Advantages of SFC Solutions

Energy Efficiency of Static Frequency Converters

In addition to those comprehensive discussions, a fascinating audience on the associated energy exploration, Static Frequency Converters (SFCs) are a pivotal instrument in energy transformation, as well as being highly efficient in terms of energy use. The efficiency of SFCs in energy saving can be significantly enhanced by the use of emerging power conversion techniques, such as Pulse-Width Modulation (PWM) and electronic devices. Those techniques serve to eliminate losses in energy when converting and effectively transfer maximum power from one source to another. For example, in most cases, SFCs have an efficiency rating of over 95%, making them very economical in terms of energy consumption and other related costs compared to the use of traditional mechanical or rotary converters.

Additionally, the attractive feature of the superfluous systems stabilizes power and frequency with a high degree of accuracy, negating the all-encompassing translation inherent in a non-sophisticated system. This kind of deliberate restriction of power usage also facilitates the extended [state in life] of the appliances since there is less attrition or thermal break on them. Moreover, modern energy control systems promote real-time measurements as well as timely control, which is possible under various load conditions, benefiting consumers.

Cost-Saving Benefits of Implementing SFC

Reduced Energy Consumption

SFC systems excel in operation because they precisely tune the output voltage and frequency to match the load demand. Utilization of SFCs has been found via analysis to result in almost 30% lower energy consumption when compared to other methods. This cost-benefit equation has a direct impact on reducing electricity bills in high-energy utilization industries, including, but not limited to, manufacturing and transportation.

Lower Maintenance Costs

The malfunction of a device is due to frictional loss and wear and tear of its parts. Traditional control system faces the problem of wear in continuous operation, even when the smooth control of the SFC eliminates mechanical starting and stopping. Some companies have implemented SFCs as a significant portion of their facilities’ energy optimization efforts and reported a reduction in maintenance expenses of up to 20%, as they experienced fewer breakdowns and fewer items requiring replacement compared to the past.

Decreased Downtime

The reliability of SFC systems has the advantage of fewer failed operational activities. Some facilities, even those reporting as high as 25% to 40% of unscheduled downtime, have seen reductions or mitigations after adopting SFS systems, which in turn reduce lost output and losses that would have been incurred due to downtime.

Optimized Energy Demand Charges

To reduce the impact of operating high peak loads by using energy factor controls, an extended spread function of the storage factor over the loads is required. In industrial setups, particularly those employing high-energy-consuming techniques, there are instances when energy fluctuates and consumption tends to be high, which is typically controlled by the SFC. As a result, the demand charges incurred at the end of each year have reduced significantly due to the ability of SFC systems to suppress these fluctuations.

Improved Power Factor

In effect, a large number of swimmers have developed far compensators for the purpose of enhancing power factor. This help is envisaged in addressing the operational needs for a pool, a library, a drawing room, a bus network, a bank, a commercial building, an administration building, a shelter, a restaurant, a vegetable shop – such facilities are to be used by a large number of people, day in and day out.

Scalable and Long-Term Investment

Even though utilising systems for reactive compensators, initially purchasing SFC systems may impose a large capital outlay, in the long run, the benefits far outstrip the costs involved. A comparison between various industries shows that after installing reactors, on average, an enterprise can recover the initial investment within a period of less than two years, up to three years, primarily due to the energy and operational savings benefits.

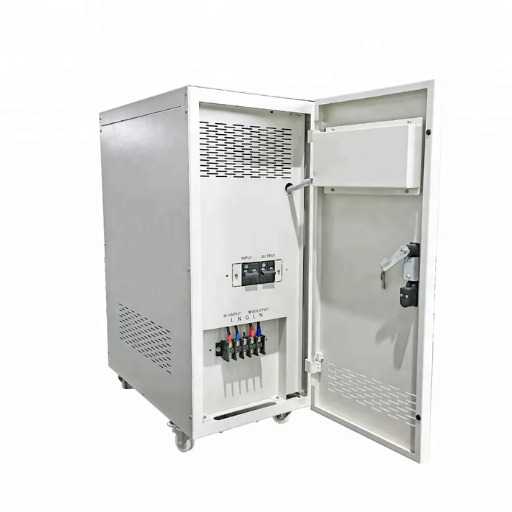

Frequency Conversion: 50Hz, 60Hz, and 400Hz

Frequency transformation is only needed to modify the power supply frequency for specific applications. Frequencies predominantly used are 50Hz, 60Hz, and 400Hz, and each serves a different purpose. These most commonly utilized alternating current mains supply frequencies are mostly used for international applications:

• 50Hz is the most commonly used frequency and is primarily utilized for general distribution in residential, commercial, and industrial areas. The various equipment designed for global use is compatible with this frequency.
• 60Hz is mostly used; however, other regions, such as North America, use it more frequently. It is equally dynamic and provides a lot of support for residential and commercial houses as well as heavy industry. Adherence to the regional power grid, among other things, depends on this frequency.
• 400Hz is a frequency span commonly applied in specialized applications, most notably in industries such as aviation, the navy, and state agencies. Being of greater value, its frequency makes it suitable for use where, primarily, limited weight and space are significant concerns.

A change in frequency is necessary to ensure that equipment can function effectively across different operational frequencies found in various geographies and sectors, thereby improving performance and avoiding excessive global requirements.

Differences Between 50Hz and 60Hz Applications

Key Point	50Hz Applications	60Hz Applications
Regional Standards	Common in Europe, Asia, and Africa	Common in North and South America
Voltage Levels	Typically 220-240V	Typically 110-120V
Efficiency	Slightly higher energy transfer efficiency	Slightly more energy losses
Motor Size Optimization	Larger motors due to lower frequency	Smaller motors, allowing compact designs
Heating Effects	Less heating in high-power applications	Slightly more heating under load
Transformer Design	Larger and bulkier transformers	Smaller and lighter transformers
Equipment Compatibility	Not compatible with 60Hz systems	Not compatible with 50Hz systems
Electrical Systems Costs	Marginally lower due to voltage differences	Marginally higher due to system losses
Generator RPM Requirement	Typically 3000 RPM	Typically 3600 RPM
Aerospace or Naval Use	Rarely used	More prevalent but limited to specifics

The Role of 400Hz Frequency Converters

400Hz frequency converters are particularly useful in overhauling systems that utilize electricity for specific purposes, including those related to aircraft, military, and other industrial applications. The principle in the design of these converters lies in converting normal power frequencies, such as 50Hz and 60Hz, to 400Hz; for this reason, a higher frequency is more preferable. Such a high frequency facilitates the making of power equipment lighter and also smaller in dimension, most notably transformers, motors, or any other component that falls under the power system.

Magnetic components can require a significant chunk of core material unless otherwise designed. The suitability of copper-based materials to these devices is quite limited due to the rise in copper costs. However, I still believe that the current core materials, based on highly pure silicon alloys, need to be priced competitively to expand the proposed applications and meet modern requirements. Magnetic components are widely used in the aviation industry for obvious reasons. It is universally acknowledged that every kilogram saved in any plane we are flying represents a step towards increased efficiency in operation and improved fuel economy.

Recent frequency converters feature energy-saving capabilities, thanks to advancements in reliability, which is essential in some critical regions. Typically, these converters comprise IGBTs (insulated gate bipolar transistors) and a digital control unit, which provides precise performance, adaptability, and long-term reliability. The above technology raises the importance of 400Hz frequency converters in conditions where space, weight, and power sources are concerned.

Single Phase vs. Three Phase Converters

Parameter	Single Phase Converter	Three Phase Converter
Input Power Requirement	Low	High
Voltage Stability	Less stable	Highly stable
Efficiency	Lower	Higher
Power Output	Limited power delivery	High power capacity
Complexity	Simple design	Complex architecture
Cost	Lower initial cost	Higher initial cost
Size	Compact	Larger
Use Case	Residential and small-scale applications	Industrial and large-scale applications
Load Handling Capability	Handles lighter loads	Handles heavier and variable loads
Maintenance	Easier due to simple construction	Moderate to high due to complexity

Challenges and Innovations in SFC Implementation

Several implementation issues hinder the realization of static frequency converters (SFCs), including the high initial investment required, the complex interconnections with existing technology, and the need for specialized maintenance operations. Strategic enhancement is constrained by the high expectations of the network’s dynamic behavior and the loads, which have particular impacts on grid-tie inverters and renewables, particularly in the industrial sector with its diversity and high availability.

Innovation in SFC technology is one way to address the above concerns. One of the strategies being applied is the introduction of digital intelligence for advanced control, designs in the form of building blocks for modularity, and highly efficient overall designs in energy use. Devices that provide insights, measurements, and analyses of electrical equipment with internet connectivity have been widely used in various industries, which also help reduce interruption times. New materials in semiconductors are also being developed, including wide-bandgap materials, which are helping to improve overall performance while reducing cost and size. These transformations contribute to the use of this equipment in the industry and provide a wider perspective.

Common Challenges in Power Conversion

Power semiconductor devices are currently rated to handle a significant amount of power, which requires them to dissipate more heat and makes them more prone to thermal problems. This presents a considerable challenge for designers, as excessive heat can reduce the efficiency of power semiconductors and shorten their lifespan. In many cases, to ensure efficient heat extraction, sophisticated cooling systems must be employed, which in turn complicates the design and increases its cost. Furthermore, to a great extent, there exists a need to improve energy efficiency because many new technologies offer some form of energy saving but are still less efficient due to switching losses and conduction losses of the converters, and also as the optimization of the algorithms depends, in a way, on the material and device structure.

High-frequency power converters are particularly susceptible to electromagnetic interference (EMI). Apart from possible system interference, EMI requires the installation of tight filtering to achieve compliance with the relevant rules. Also, the shrinking size of power conversion devices created different issues, such as the component density, which in turn might lead to increased complexity in the heat removal and EMI.

Moreover, other significant considerations include the resilience and longevity of these systems, particularly in environments with harsh and high-stress or load conditions. This is because various factors, such as excessive heat, pollution, material failures, extreme temperatures, humidity, and shock, are degrading the theoretical operating parameters; this is an active degradation in elements of the materials and/or the design, which necessitates addressing the predicted degradation. Moreover, ensuring supply chain stability for wide-band-gap semiconductors poses a dilemma, as it is challenging to secure production sources within the context of global manufacturing.

Future Trends in Static Frequency Converter Solutions

Two factors primarily govern developments in the field of static frequency converter technology. These include changes stemming from market and technological advancements. One of the consistent changes is the introduction of efficient material systems, featuring silicon carbide (SiC) and gallium nitride (GaN) semiconductors, which offer better thermal resistance, higher breakdown voltages, and improved switching capabilities, thereby reducing the power loss associated with older silicon materials. There is a good reason for this expectation; more energy-efficient and compact solutions have always been required in industries that contain these power devices, with a focus on developing high-performance products.

Additionally, from the perspective of the mode of production, it appears that there is an increasing frequency of occurrence of predictive maintenance systems in the SFC. Such SFCs with the help of machine learning, advanced analytics and operational monitoring, can predict the occurrence of failure in parts prior to occurrence which in turn reduces the overall repair time. As part of the picture of such systems, the integration of Internet of Things technology with SFC in the most precise and efficient power quality enforcement processes is handled wirelessly.

Moreover, the emphasis on mitigating the environmental impact of integrating renewable energy sources is another developmental issue to be addressed. To put it another way, due to the high levels of renewable electricity expected to be integrated into power systems, the design of these converters is intended to stabilize the grid and accommodate variable input generation from renewable energy sources, such as hydro and solar power. As an added advantage of the structure, the increased flexibility of the SFC structure can be retrofitted to accommodate smart grids and integrated into future renewable energy projects.
