What is a Static Converter? Understanding Static Frequency Converters and Their Types

Considered a modern-day necessity, the integration of electrical and electronic systems has become significantly reliant on static converters, especially SFCs. Most systems of this kind involve changing frequencies to match the equipment and power system. The need for static converters has increased dramatically and is now found in virtually every setting, whether in industrial environments, alternative energy installations, or even in transportation systems such as high-speed trains. Without these devices, various inventions that benefit us would not be possible. This paper is therefore intended to address the definition, operation, and classifications of static frequency converters. Through the information provided, this paper enlightens readers on the main areas where converters can be applied, ranging from historical to recent applications. Capturing one’s attention may require examining how the components operate, as well as their benefits when applicable to specific vertical markets. Gain practical knowledge regarding the devices and appreciate the relevance of their manufacturing in the market branch.

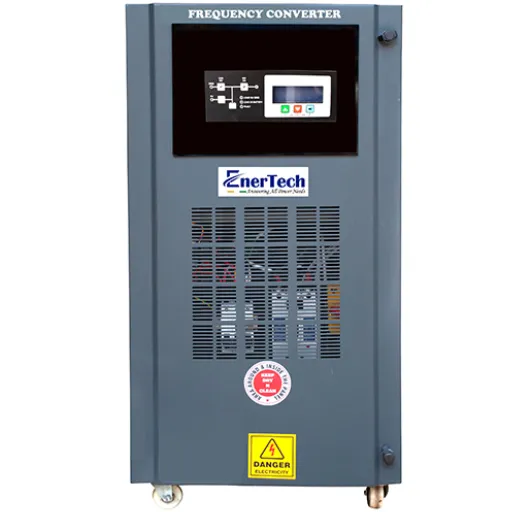

Introduction to Converters

Converters are considered electrical devices that allow the transformation of energy from one form to another, meeting the specific conditions of various applications. They are necessary in contemporary systems, as power is usually electrical, and there are requirements for changing it in terms of quantity, frequency, or form (AC to DC or DC to AC). Commonly used types include rectification units, rectifiers, and inverters (recoders). This type of change is that change, for example, wherein the frequency of an electrical pulse is physically varied, and such a device shall involve at least the applied, the distortion, and the VCO. These are employed in manufacturing, particularly in demanding industries such as the transportation system and the growing renewable sector, where the transfer of energy is required at a fixed or adjustable precise power level.

Definition of a Static Converter

An electrical power supply is a device that converts electric energy from one form to another without the need for any moving elements. It is achieved using semiconductor devices such as diodes, transistors, and thyristors. Electric current is controlled and switched by this equipment regime less. It entails solid-state and automatic reversal of energy at various levels, frequencies, and types, as well as power flows. In drive systems, where the loss of power has a direct potential effect on their regular operation, the drive power systems should utilize more effective converters. Nowadays, power converter technology is based on high-power devices and principles of proper systems and control theory. This paper discusses the operation and performance of the current motor drive system with a PM inverter. They eliminate the use of brushes and commutators typical of the DC machine configuration, which complicates maintenance, especially in large motors. The DC-AC inverter is a device that converts electric power from a DC to an AC signal suitable for use with electronic equipment. The development of such electrical solutions has brought the need for robust and efficient power converter technology using modern power semiconductor devices.

Importance of Frequency Converters in Industry

The Engines of Today Produced superior results in the modernized industries, which sustained operations economics, such as manufacturing systems. It can be conclusively stated that variable frequency drives for conveyors and production lines enable the achievement of expected results, including reduced consumption of components and lower energy usage due to the use of these machines. The same principle applies to heating and cooling air in facilities, where the speed of the fan and/or pump is varied using variable speed drives, which helps save power to meet energy targets.

Furthermore, converters have become crucial for wind power, and to some extent, for solar power as well. This is because the converters greatly assist in controlling and stabilizing the frequency of the power output and its voltage in case it is needed to grid interfacing of these systems—be it wind or solar power plants.

Their huge advantage in relation to various kinds of equipment, from pumps and compressors to automation and robotics, will make them very popular in industrial sectors where one of the key aspects of efficiency is energy consumption. It is due to such particular characteristics that their preference is guaranteed both in the absence of data and with new technologies available.

Overview of Phase Converters

A Phase converter is an inference model that extends text-to-text generation to a sequence of vision and then text for Handwritten Mathematical Expressions transformation, which this work illustrates as the first step of applying neural networks to structured data, such as tabular data. Still, the inference stage includes an attribute of a mathematics description generator to provide a sequential, explosive process that mimics human language.

Static, rotary, and digital phase converters are the primary types of phase converters available on the market. They generate aids for phase generation from capacitance, due to their limitations in handling high workloads. The Generation of the third phase by capacitive means is only possible for static converters that are designed with physical Capacitors for heavy commercial use. Rotary phase converters are an exception; they are made of an electric motor and generator combination which emanates in a state of the art three phase current to prevent overload for high rated loads or differing motor applications. While Digital phase converters have become even more efficient and effective with the use of advanced electronics and microprocessors, allowing for the precise control of the symmetrical output across all possible internal impedances of an unbalanced system through digital equipment.

Due to the potential for clumsiness or the high cost of transitioning to a three-phase power system, manufacturers and businesses often turn to phase converters as a cost-effective alternative. Notable in the robotic phase course modules is the improvement in energy efficiency, as well as the addition of features such as real-time sticking, voltage correction, and protective devices during transfers, which, in most cases, results in performance enhancement. It is this large-scale functionality and the level of technology that accompany it that aptly define its role in modern energy management principles.

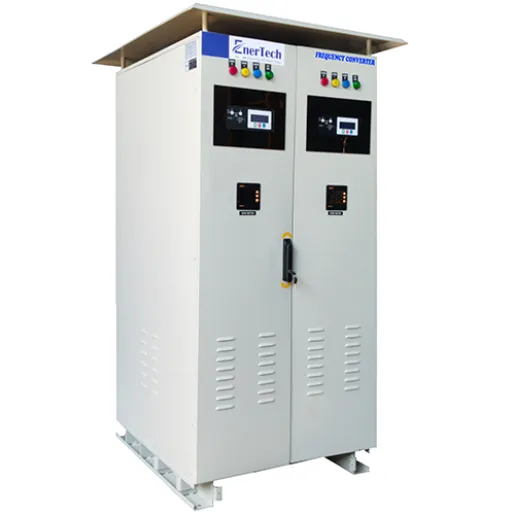

Static Frequency Converters Explained

The static frequency converter has been historically designed to change the frequency of an electrical power supply to suit the particular requirements of the connected apparatuses. To perform this, they convert the input AC power to DC power and subsequently reconvert it back to AC with the required frequency, resulting in precision and efficiency. Static frequency converter applications are found in aerospace systems, industrial manufacturing, and testing. Their smaller sizes, reliability, and ability to generate clean and stable power output hold paramount importance in those few applications where frequency matching is essential. Static converters have gained effectiveness in modern power applications due to the fact that they eliminate the mechanical components required in earlier systems, thereby enhancing durability and reducing maintenance requirements.

How Static Frequency Converters Work?

Static frequency converters convert input power at a given frequency into output power at a different, specified frequency through various technical means. Since alternating current is supplied from the input, it is rectified into direct current by a rectifier. The DC power output of the rectifier serves as the input power for an inverter, which converts the DC power back into AC of the desired frequency and voltage. Hence, an excellent frequency control is achieved, ensuring that the output is compatible with any equipment that depends on it for frequency. Modern power converters utilize the latest semiconductor technology, such as IGBTs, achieving switching frequencies of a very high order while maintaining good efficiency. Control systems (e.g., digital signal processors) allow modulation with great precision while monitoring performance in real-time. These systems minimize harmonic distortion and provide the best power quality, making static frequency converters the current best solution for reliable and accurate frequency regulation.

Applications of Static Frequency Converters

Aviation Ground Power Supply

With a flourishing 400 Hz supply at airports, SFCs are used to supply power to aircraft during ground operations. This keeps critical systems on an airplane engaged and prevents the APU from running, thereby saving on fuel costs and reducing emissions. For example, an average medium-sized aircraft may save up to 36 gallons per hour of fuel on use via ground power through SFCs.

Maritime and Shipboard Power Systems

Many ships operate on different power frequency standards, such as 60 Hz onboard while docked at a port, which uses a 50 Hz grid. As a result, SFCs provide conversion and synchronization between the two powering systems to carry out operations uninterruptedly during such transitions. Modern port electrification projects utilize SFCs to provide shore-side power or cold-ironing, significantly reducing dockside emissions.

Industrial Motor Drives

Industrial processes often demand the variable speed operation of motors to improve efficiency and reduce operational costs. SFCs are used to control and regulate the power frequency supplied to large motors, ensuring stable performance in industries such as cement, steel, and textiles. Studies have revealed that the performance of SFC motor drives can be enhanced in terms of energy efficiency up to 25%.

Renewable Energy Integration

In particular, SFCs are crucial for integrating renewable power systems, including those from wind and hydroelectric sources. Variable-frequency output produced by turbines is converted to the standard grid frequency by the SFC system, allowing for a fixed power supply. Such frequency synchronization is necessary for integrating intermittent sources of renewable energy into the grid.

Military and Defense Applications

Defense systems require precise power regulation, particularly for radar systems, test equipment, and mobile power supply units. SFCs ensure smooth operations in any environment by adapting to local power frequency standards and providing energy free from distortions.

Test and Research Laboratories

SFCs are used in laboratories to simulate various power conditions for the testing of electrical devices and systems. By issuing programmable frequency outputs, the converters are indispensable in quality control, product development, and compliance testing in industries.

Advantages of Using Static Frequency Converters

Improved Energy Efficiency

Static frequency converters are highly electrically efficient, with an efficiency of approximately 95% or higher. Therefore, they incur less energy loss as compared to mechanical methods such as motor-generator sets, resulting in economic and environmental benefits in the long run.

Precision Output Control

SFC controls output frequency and voltage with exceptional precision and accuracy, typically within ±0.1 Hz and ±1% of the nominal voltage, ensuring operation under stringent requirements for sensitive loads.

Compact and Lightweight Design

Modern SFCs are designed primarily for minimal size and weight, particularly in contrast to older mechanical equipment. This makes a 100-kg SFC capable of replacing traditional equipment weighing more than 500 kg, thereby making the converter very suitable in spaces with limited capacity.

Enhanced Reliability and Durability

With only a few moving parts, being a solid-state device, SFCs result in a very low rate of wear and tear, reduced maintenance needs, and an extremely long operational life —longer than 20 years if continuously operated under normal conditions.

Flexibility Across Frequencies and Voltages

With an SFC, a wide range of input and output voltages and frequencies can be accommodated. For instance, it can be used to convert 60 Hz to 50 Hz or vice versa, supporting voltages ranging from 120V to 690V. Such operational flexibility is sufficient for international installations and ensures compatibility with diverse power grids.

Fast and Programmable Response Times

The SFC has a swift response to any change in input conditions. With a typical response time in milliseconds, it delivers optimal performance under various conditions. Programmable settings are available, allowing for tailored configurations that meet optimal utility requirements.

Rotary vs Static Phase Converters

The main differences between rotary and static phase converters arise from their functionalities and applications. Rotary-phase converters generate balanced three-phase power through a rotating motor generator, offering the best efficiency and stability when running heavy-duty equipment. They pack more punch when constant power is needed over long operational periods for CNC machines or other industrial equipment.

Static converters use capacitors to provide a momentary three-phase power during startup. They are mainly used for simple applications under a light load, such as small motors or pumps, but may lack power balancing and may not be efficient for hard work. Static converters are less expensive and suitable for intermittent use, while rotary converters will provide the quality of power and the reliability needed to undertake critical operations.

Comparative Analysis: Rotary vs Static Phase Converters

Choosing the Right Type of Phase Converter

When deciding on the best phase converter option, several important issues need to be assessed to ensure that the selected system delivers optimal performance and cost efficiency. Such considerations entail:

• Power Requirements: Carefully assess the power rating of your equipment in terms of kilowatts and amperes. Rotary phase converters are typically suited for relatively demanding applications, whereas a static converter may be sufficient for more minor power requirements.
• Load Type and Diversity: Assess the type of equipment and variety of loads you might intend to operate. Rotary phase converters offer the most excellent versatility, as they accommodate a wide range of motor types and varying loads. Static converters, on the other hand, are generally quite limited in application and may work only for one particular kind of machinery.
• Operational Efficiency: Rotary converters are capable of producing smooth, balanced three-phase power under varying loads, ensuring continued operation for sensitive machinery. Static converters may work efficiently under relatively short-term use, but prolonged use can result in uneven power surges, which can affect equipment life.
• Noise and Location Constraints: In noise-sensitive areas, such as urban or residential zones, advanced noise-reducing rotary converter models would be preferable. Due to their simple construction, static converters may indeed produce few moving noise components yet lack actual quiet features.
• Future Scalability: In cases where there is a chance of future expansion or additional machinery, a rotary phase converter provides the flexibility to scale up without requiring significant infrastructure changes. Static converters may, however, need to be replaced to meet the new system requirements.

Upon carefully considering these aspects, one can grasp the unique type of idiosyncrasy involved in each converter type and propose a solution with confidence that satisfies the particular operational requirements of the project or industrial installation.

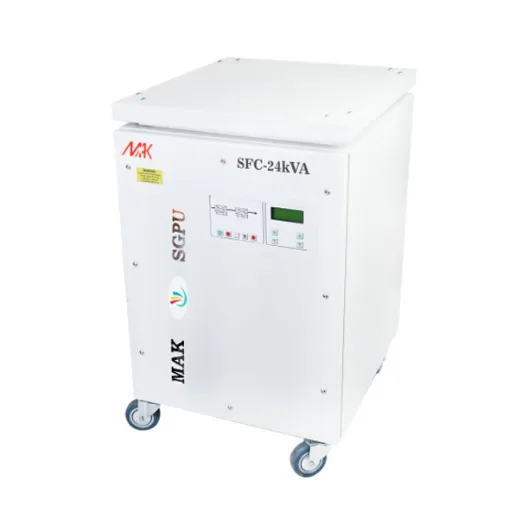

Main Types of Phase Converters

Rotary Phase Converters

Rotary phase converters comprise heavy-duty systems that generate three-phase power employing a rotary motor-generator. They are reliable and can carry large industrial load requirements. These converters offer an element of scalability; hence, they enjoy increased preference when an application allows for future expansion. Rotary phase converters are best suited for situations that require stable output power for heavy machinery.

Static Phase Converters

Static phase converters are the most straightforward mechanical devices to provide momentary three-phase power to start equipment powered by a three-phase motor. After the motor starts, it continues running on single-phase power. Such a converter is inexpensive and suitable for lighter, smaller workloads. However, maximum versatility would not be the strong point of these converters when they are called upon to operate continuously under varying loads.

Digital Phase Converters

Digital phase converters manufacture truly balanced three-phase power through cutting-edge electronic control systems. They combine the efficiency of the rotary style with the accuracy of the static variety, ensuring consistent performance under all load levels. When power quality and load adaptability are required, digital converters are the choice, as they are highly energy-efficient and possess dynamic response capabilities.

Types of Static Phase Converters

Types of Rotary Phase Converters

Applications for Each Type

Standard Rotary Converter

Standard rotary converters are primarily applicable where reliability and simplicity are key considerations. They see their nest in workshops, manufacturing units at a small scale, and agricultural setups, powering their three-phase loads from a single-phase power source. They find application in environments where a motor, pump, or compressor-type load is being considered that is not too critical in terms of precision, but requires urgent operation.

Digital Rotary Converter

Applications that require utmost precision, such as CNC machinery, robotics, or advanced manufacturing systems, are well-suited for digital rotary converters. Due to the integrated digital control system, superior voltage regulation and phase balancing are possible; their adeptness is best demonstrated in aerospace, automotive engineering, or electronics production, where performance demands must be met at the highest level.

Portable Rotary Converter

Portable rotary converters are generally required at temporary locations or at sites remote from any power source, such as construction sites or field repair operations. With a light and compact design, they are easily carried and installed wherever three-phase power is inaccessible, but where mobility and flexibility are of prime importance. They work immensely well in powering small industrial tools or portable machinery.

Custom Rotary Converter

Custom rotary converters are designed to meet the unusual or highly specialized needs of high-tech industries. These are often required in projects that necessitate custom voltage and/or phase configurations, such as experimental research facilities, advanced prototyping workspaces, or custom-built manufacturing setups. Since they can be fully customized, they accommodate quite niche applications, which makes their price higher than average due to the design complexity.

Conclusion: Summary of Key Takeaways

Custom rotary converters offer highly versatile solutions for industries with specialized power requirements. Being able to be customized in totality makes them ideal candidates for very special applications, such as advanced research and custom manufacturing processes. Due to their designs, they are more expensive, but the price is justified by the fact that they can accommodate unusual voltage and phase requirements, whereas standard ones cannot. So they really do weigh on the delicate balance of precision and adaptation excellence in these niche industrial and research situations.

Future Trends in Converter Technology

Converter technology is rapidly evolving to meet the increasing demands of emerging applications of renewable energy, electric mobility, and high-performance systems. A significant trend in research involves the incorporation of wide-bandgap materials, such as silicon carbide (SiC) and gallium nitride (GaN), as they exhibit characteristics of efficiency and thermal management that surpass those of conventional silicon-based components, along with very high switching speeds. Due to these materials, the converters can sustain very high voltages and temperatures, making them indispensable in high-power applications, such as Electric Vehicle drive-trains or grid-scale energy storage systems.

Among other things, scalable and modular converter designs represent a growing area of research to enable the increasing penetration of distributed energy resources (DERs). These designs are targeted to offer utmost flexibility and interoperability, so that they can integrate seamlessly with any grid system or renewable source, such as solar or wind turbines. A higher degree of control over algorithms enhanced by artificial intelligence and machine learning will, of course, come into play, enabling real-time power flow control, predictive maintenance, and fault management.

Another area I can describe is how the shrinking of equipment size and the increased power density have led to a revolution in packaging techniques and thermal management solutions. Therefore, if the next generation of converters is to meet the compact systems’ demands while not compromising reliability, higher performance, and smaller size, together with better cooling efficiency, has to be delivered. Furthermore, this evolution symbolizes the complementarity between materials science, power electronics, and digital control technologies, paving the way for more efficient and flexible power conversion solutions in the future.

Final Thoughts on Choosing the Right Converter

Several key areas should be considered to determine an appropriate converter choice for a given application: power density, efficiency rating, working temperature range, and system integration. Modern converters therefore employ the latest technologies, such as silicon carbide (SiC) or gallium nitride (GaN) semiconductors, which promise better performance characteristics in terms of switching speeds and thermal conductivity compared to traditional silicon. Equally, load profiles, voltage requirements, and environmental conditions under which a converter will operate are assessed for its selection, ensuring the best possible match to the system’s needs. Industry trends indicate an increasingly more common use of converters with advanced digital control interfaces, facilitating real-time monitoring, diagnostics, and optimization. These features enhance overall efficiency and reliability over time, making such converters future-proof for a better solution.

Reference Sources

1. Static starting device for the start-up of the gas turbine

   • Summary: This study examines the application of static starting devices, also referred to as static frequency converters (SFCs), for starting gas turbines in gas turbine combined cycle (GTCC) power plants.

2. Simulation of Power Converters Using Matlab-Simulink

   • Summary: This paper discusses the role of static converters as electrical circuits that manage energy transfer between generators and receivers. It emphasizes the importance of efficiency in converter design and provides insights into simulation techniques using MATLAB Simulink.

Frequently Asked Questions (FAQs)

Q: What are the Main Types of Phase Converters?

A: There exist generally three types of phase converters: static, rotary, and digital. Static phase converters, typically inexpensive, are used to convert single-phase power for three-phase motors. Rotary phase converters produce genuine three-phase power and are, therefore, essential for operating heavy machinery with inductive loads. The digital kind is more modern and can cater to changing load conditions while maintaining a balanced power output. Each type may be advantageous in different applications depending on power needs.

Q: How Does a Rotary Frequency Converter Work?

A: The rotary frequency converter uses a rotating machine for the conversion of power from single-phase to three-phase. It usually consists of an idler motor that supplies the required three-phase output. Such converters find application in high-power scenarios, as they can handle larger loads and provide a stable output. The rotary frequency converter also handles starting current and inrush current well, making it a good choice for heavy industrial machinery. It is primarily designed to provide a clean sine wave output, ensuring that sensitive equipment operates trouble-free.

Q: Can a Static Converter be Used with Single-Phase Electrical Systems?

A: Static converters can undoubtedly be used with single-phase electrical systems, but it should be understood that not all are suitable for a particular process. Static converters are generally intended to convert single-phase power to that acceptable by three-phase motors, and sometimes they do not suit high-demand loads or highly inductive loads. In such situations, the rotary phase converter is typically superior in providing balanced power with high efficiency. Thus, when choosing a converter, remember to factor in the number of horsepower demands and load conditions of the process.

Q: What is the Difference Between Static and Rotary Phase Converters?

A: The main difference between static and rotary phase converters lies in design and function. Static phase converters are generally cost-effective and straightforward, making them ideal for smaller loads or applications that require only occasional use. They provide power for three-phase machines for a limited time and may not handle those with heavy starting loads effectively. On the other hand, rotary phase converters are pretty robust and can handle a higher power demand, allowing for continuous usage in industrial settings. They can generate true three-phase power while adapting to varying load conditions, making them the preferred option when heavy machinery is involved.
