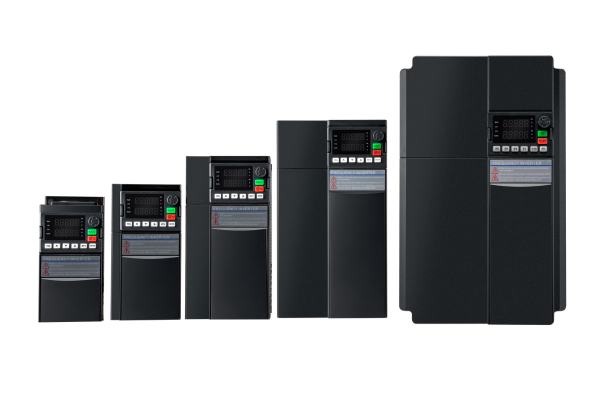

Top YC1610 Series AC Frequency Converter Manufacturers in China

High-Performance Vector Control

The YC1610 Series is engineered for precision and reliability. As a high-performance ac power frequency converter, it utilizes advanced vector control and a dual-display interface to deliver superior motor speed regulation, exceptional efficiency, and stable operation for a wide range of industrial applications.

INSTANT QUOTE

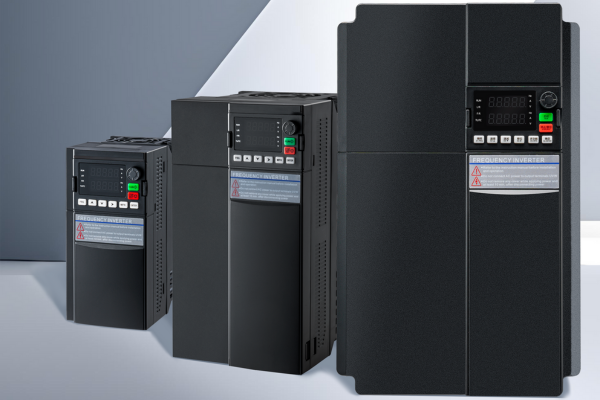

1610 Series AC Frequency Converter
Advanced Technology
Strict Quality Standards
Diverse Product Range
Global Reach

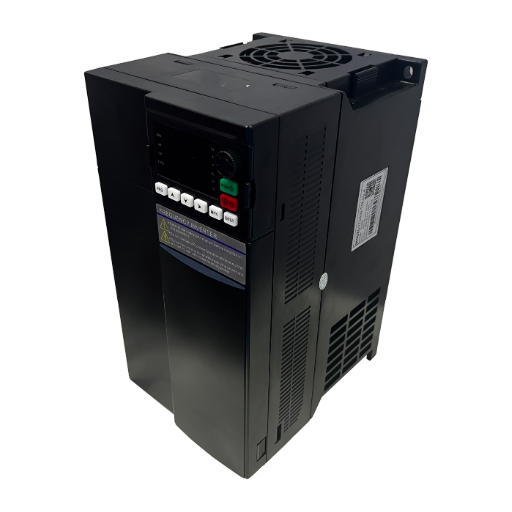

1610 Series AC Frequency Converter

Why Choose the YC1610 Series AC Frequency Converter?

  • Excellent Performance: High-performance current vector control technology ensures superior motor handling and responsiveness.

  • Ride-Through Function: Maintains short-term operation during momentary power outages by using load feedback energy to compensate for voltage drops.

  • Automatic Voltage Regulation (AVR): Automatically maintains a constant output voltage, even when the grid voltage fluctuates, protecting your motor.

  • Optimized Structural Design: A compact, smaller footprint with a more reasonable structural design allows for easier integration into panels and systems.

Top Features of the YC1610 Series AC Frequency Converter

The YC1610 Series seamlessly integrates advanced control logic with robust hardware engineering. Below are the core features designed to deliver superior performance, user-friendly operation, comprehensive protection, and long-term reliability for your most demanding applications.

Advanced Control Algorithms

Supports high-performance Vector Control, V/F Control, and Permanent Magnet Synchronous Motor Control for maximum versatility and precision.

Intuitive Dual Digital Display

The clear dual-display design allows for easy monitoring of key parameters and simplifies configuration and diagnostics.

Robust Integrated Protection

The advanced ac frequency converter circuit includes comprehensive safeguards against short circuits, phase loss, overcurrent, overvoltage, and overheating.

Excellent Thermal Management

An optimized heatsink and fan control system ensures excellent heat dissipation, contributing to the unit's high reliability and long service life.

Choosing the Right Control Mode for Your Needs

Selecting the correct control mode is crucial for performance. The YC1610 Series offers both V/F Control, ideal for variable torque loads like pumps and fans, and high-performance Sensorless Vector Control (SVC) for constant torque applications such as conveyors and machine tools that demand precision. As experienced ac frequency converter manufacturers, we design our units to provide the flexibility needed for any industrial setting, ensuring optimal efficiency and motor handling no matter the task.

VFD vs. Traditional Motor Starters: Key Differences

While a basic starter just turns a motor on and off, the YC1610 Series acts as a true variable frequency ac power supply. Unlike the abrupt start of a traditional starter, it provides a smooth, controlled ramp-up, reducing mechanical stress and high inrush currents. Most importantly, it allows for continuous speed adjustment during operation. This capability as a modern ac power supply frequency converter delivers significant energy savings, better process control, and advanced motor protection far beyond what a simple starter can offer.

Technical Parameters of YC1610 Series AC Frequency Converter

NameDate
Input VoltageSingle-phase power supply：220V ，1.1KW-15KW
Three-phase power supply：220V-480V ，0.75KW-55KW
Ratedvoltage 1～380V
Motor rated power 0.1～1000KW
Control modeOpen-Loop Vector Control (SVC); V/F Control
Maximum frequencyVector Control: 0-300Hz
V/F Control: 0-3000Hz
Carrier Frequency0.75kHz~15kHz (Maximum carrier frequency depends on the model)
Automatically adjusts the carrier frequency based on load characteristics.
Overload capacityG-Type Unit: 150% rated current for 60s; 180% rated current for 3s
P-Type Unit: 120% rated current for 60s; 150% rated current for 3s
Industries We Serve

Applications of YC1610 Series AC Frequency Converter

The versatility of the YC1610 Series makes it the perfect choice for improving efficiency and control across a huge range of industries and machinery.

Pumping & HVAC Systems

Ideal for variable torque loads, the YC1610 Series excels in controlling pump and fan systems. By precisely matching motor speed to real-time flow and pressure demands, it delivers substantial energy savings in municipal water treatment, commercial HVAC, and industrial fluid handling. It ensures optimal system performance and significantly reduces operational costs.

Manufacturing & Machine Tools

In manufacturing, precision is critical. The YC1610 Series' advanced vector control provides the exact speed and torque regulation needed for applications like CNC machine tools, metal processing, and automated production lines. This ensures consistent product quality, higher throughput, and reliable performance for all your machinery, from simple conveyors to complex equipment.

Textile & Processing Industries

From textile manufacturing to chemical processing, consistent process control is essential. The YC1610 Series offers the reliability needed for equipment in the paper, pharmaceutical, and textile industries. It masterfully manages the speed of mixers, winders, and draw frames, ensuring material integrity, minimizing waste, and maintaining high standards of production output.

Capabilities of The YC1610 Series AC Frequency Converter

  • Supports motors from 0.75kW up to 55kW.

  • Features high-precision SVC and versatile V/F control.

  • Accepts 220V-480V, single & three-phase inputs.

  • Handles 150% overload for 60 seconds (G-Type).

  • Automatic Voltage Regulation for stable motor operation.

  • Momentary power ride-through for continuous operation.

  • Standard RS-485 port with MODBUS communication.

  • High-frequency output up to 3000Hz in V/F mode.

1610 Series AC Frequency Converter

Top Reviews of YC1610 Series AC Frequency Converter

Understand from our clients what they say about doing business with us and the unique value addition we provide.

"We installed the YC1610 Series on our conveyor line. The setup was straightforward, and the motor control is incredibly smooth. The dual display is a great feature for quick diagnostics. A fantastic and reliable drive for the price."
Customer reviews
John Carter
Maintenance Manager
"The performance of this vector converter is impressive. It handles heavy starting torque without any issues and has significantly reduced our energy consumption. The build quality is excellent. We highly recommend this product."
Customer reviews
Maria Rodriguez
Production Engineer

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Get a Reliable & Cost-Effective Converter Solution Today!

The YC1610 Series AC Frequency Converter represents the perfect balance of performance, reliability, and value. It is engineered to give you precise control over your operations, leading to significant energy savings and reduced mechanical wear on your critical equipment.

Our team of application engineers is ready to help you. Contact us today to discuss your specific requirements, and we will provide a detailed quotation and expert advice to ensure you get the perfect solution for your needs.

Get in Touch Today
