Leading G74 Series High Voltage Frequency Converter Manufacturers in China

High-Performance Vector Control

The G74 Series is Engineered For High Voltage Control And Reliability. As A Leading High-Performance High Voltage Frequency Converter, It Utilizes Advanced Multi-Level Technology And Precision Control Algorithms To Deliver Superior Motor Speed Regulation, Exceptional Efficiency, And Stable Operation For A Wide Range Of Heavy Industrial Applications.

INSTANT QUOTE

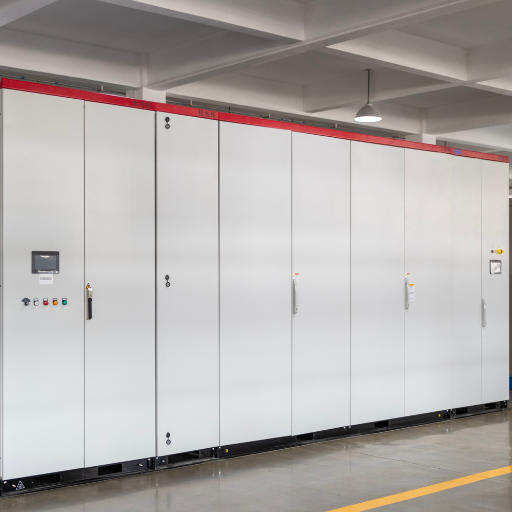

G74 High Voltage Frequency Converter
Advanced Technology
Strict Quality Standards
Diverse Product Range
Global Reach

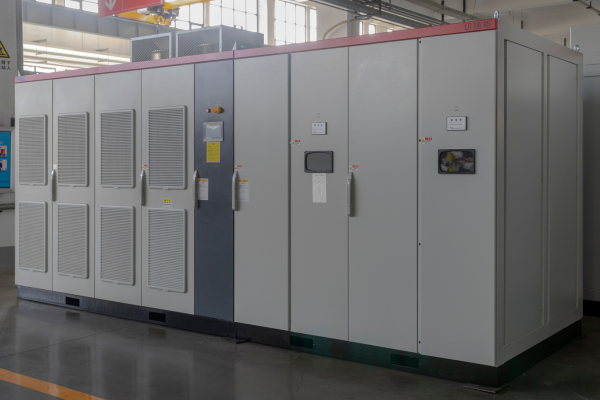

G74 High Voltage Frequency Converter

Why Choose The G74 Series High Voltage Frequency Converter?

  • Superior High Voltage Performance: Advanced multi-level topology and control algorithms ensure exceptional motor speed and torque control accuracy and responsiveness for large, high-voltage machines.

  • Enhanced System Reliability: Features robust component design, built-in redundancy options, and sophisticated diagnostics to maximize uptime and minimize the risk of costly operational interruptions in critical applications.

  • Optimized Energy Efficiency: Achieves significant energy savings through precise speed regulation and low harmonic distortion, reducing operating costs and supporting sustainable industrial practices.

  • Seamless Industrial Integration: Offers flexible communication options and adaptable interfaces for straightforward integration into existing plant control systems and automation networks.

Top Features Of The G74 Series High Voltage Frequency Converter

The G74 Series combines cutting-edge multi-level technology with robust engineering. Below are the core features designed to deliver superior high voltage performance, exceptional reliability, and long-term efficiency for demanding industrial applications.

Advanced Multi-level Topology

Utilizes state-of-the-art multi-level inverter technology to generate near-sinusoidal output voltage waveforms, minimizing motor stress, reducing harmonic distortion on the grid, and enabling direct connection to high-voltage motors.

Comprehensive System Protection

Includes extensive, integrated safeguards specifically designed for high-voltage operation. These protections monitor critical parameters and react swiftly to faults like overcurrent, overvoltage, short circuits, and ground faults, enhancing safety and preventing damage.

Precise Control Algorithms

Supports powerful Vector Control and V/F Control modes optimized for high-voltage motor types. These algorithms provide dynamic speed and torque control with high accuracy, ensuring optimal process performance across various load conditions.

Modular & Service-Friendly Design

Features a modular power cell design that simplifies maintenance and improves system reliability. This construction allows for easy access to components and enables swift repair or replacement, minimizing downtime for critical industrial processes.

Choosing The Right Control Mode For Your Needs

Selecting the optimal control strategy is paramount for high-voltage motor performance. The G74 Series provides versatile options, including V/F Control, which is well-suited for variable torque loads prevalent in high-voltage fan and pump applications. For demanding constant torque loads or processes requiring exceptional accuracy, the series offers advanced High-Performance Vector Control, capable of precise speed and torque regulation in both open-loop and closed-loop configurations, ensuring reliable motor handling for any industrial requirement.

HV VFD Vs. Traditional Starters: Key Advantages

While conventional high-voltage starters provide only basic motor energization, the G74 Series High Voltage Frequency Converter delivers continuous, variable speed control. Unlike abrupt direct starts or limited reduced voltage methods, the G74 provides smooth acceleration and deceleration, significantly reducing mechanical shock and electrical stress on large motors and power systems. This substantial energy savings through optimized operation, and enhanced process control precision, offering capabilities far beyond simple motor starting.

Technical Parameters of G74 Series High Voltage Frequency Converter

NameData
Input Voltage (kV)3-phase AC, commonly 3kV, 6kV, 10kV options
Input Frequency (Hz)50Hz / 60Hz, wide tolerance range
Output Power (MVA/kW)Wide power range available, from MW upwards
Output Voltage (kV)Multi-level output, matches input voltage class
Output Frequency (Hz)0 - ~120Hz standard, higher upon request
Control ModeHigh-Performance Vector Control, V/F Control
Motor TypeAsynchronous & Synchronous High Voltage Motors
Speed Control AccuracyHigh precision with Vector Control
Starting TorqueExcellent starting torque, e.g., 150%+ at low speed
Overload CapacityDesigned for heavy loads, consult model specifics
Harmonic DistortionLow THDi due to multi-level topology
CoolingAir-cooled or Water-cooled options
Protection FunctionsExtensive built-in safeguards for high-voltage systems
CommunicationStandard industrial protocols available (Modbus, etc.)
Industries We Serve

Applications Of G74 Series High Voltage Frequency Converter

The versatility and robust design of the G74 Series make it the ideal choice for improving efficiency and control across a huge range of heavy industries and large machinery.

Power & Energy Sector

Crucial for controlling high-power motors in power plants for applications such as boiler feed pumps, ID/FD fans, and compressors. The G74 Series ensures stable operation, optimizes energy use, and enhances overall plant reliability in critical generation processes.

Metals & Heavy Manufacturing

Essential for driving large motors used in rolling mills, blast furnaces, and other heavy-duty processes in the metals industry. The G74 provides precise speed and torque control necessary for material processing, ensuring consistent quality and high throughput.

Oil, Gas & Petrochemicals

Applied in various high-voltage motor applications like large compressors, pumps, and fans in upstream, midstream, and downstream facilities. The G74 Series offers the required power, reliability, and control precision for safe and efficient operation in demanding and hazardous environments.

Capabilities Of The G74 Series High Voltage Frequency Converter

  • Controls High Voltage Motors At 3kV, 6kV, And 10kV Class Levels.

  • Provides Precise Speed, Torque, And Position Control For Large Motors.

  • Utilizes Multi-level Topology For Low Harmonic Distortion And High Efficiency.

  • Handles High Power Outputs Suitable For Heavy Industrial Loads.

  • Offers Robust Integrated Protection Features For System Reliability And Safety.

  • Supports Seamless Integration Via Standard Industrial Network Protocols.

  • Enables Significant Energy Savings Through Optimized Motor Operation.

  • Features a Modular Design For Simplified Maintenance And Increased Uptime.

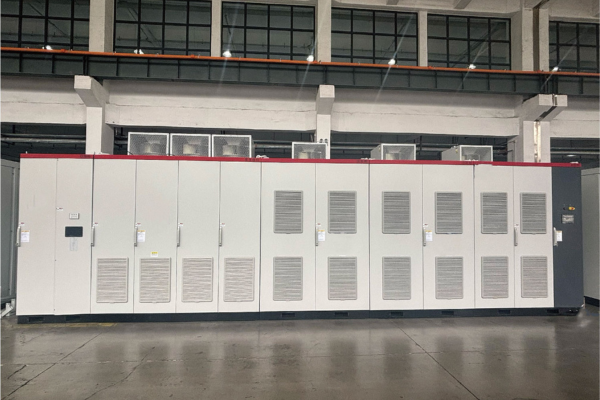

G74 High Voltage Frequency Converter

Top Reviews of G74 Series High Voltage Frequency Converter

Understand from our clients what they say about doing business with us and the unique value addition we provide.

"The G74 Series high voltage drive has been a game-changer for our heavy-duty mining operations. Its ability to handle the immense starting torque required for our crushers while providing incredibly precise speed control is outstanding. The reliability in our harsh environment has been flawless, significantly reducing downtime and maintenance costs. We are thoroughly impressed with its performance."
Robert Davis
Robert Davis
OPERATIONS MANAGER
"Implementing the G74 Series into our power generation plant has yielded remarkable results. The multi-level technology ensures clean power output and high efficiency, contributing directly to energy savings. The advanced control allows for fine-tuning of large fan speeds, optimizing our process flow. This converter is a robust and intelligent solution that we trust for our critical infrastructure."
Laura Kim
Laura Kim
CHIEF ENGINEER

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Get A Reliable & High-Performance High Voltage Solution Today!

The G74 Series High Voltage Frequency Converter offers the robust control and unwavering reliability needed for your most critical heavy industrial applications. Our team of expert engineers is ready to assist you. Contact us now to discuss your specific high-voltage requirements, and we will provide a comprehensive consultation and tailored quotation. Let’s optimize your high-power system together.
